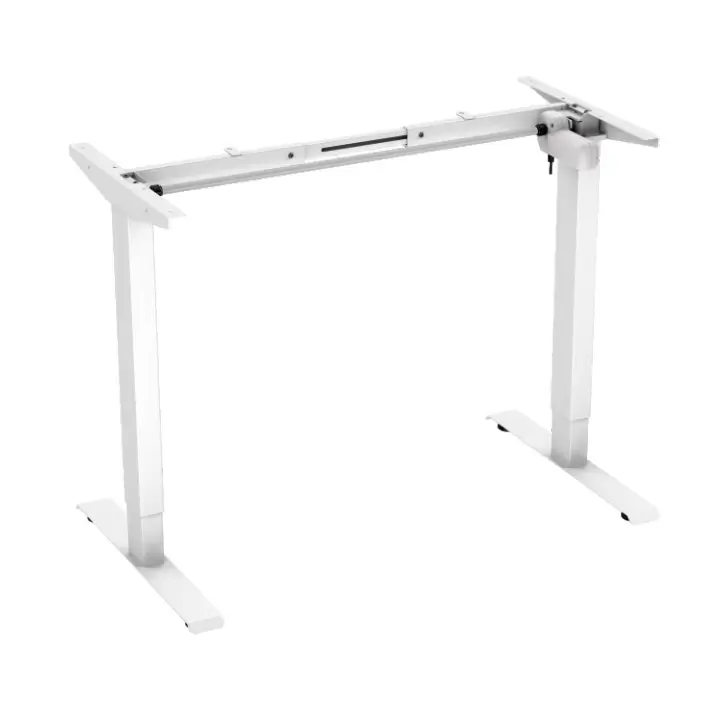

Standing desk frame
L shape sit stand computer desk frame
Introduction
NKLD4 is a single motor standing desk that simplifies installation steps and solves the problem that consumer shave difficulty in installing single motor standing desk. Its gear box is separated from the column, and the transmission rod is pre assembled with the frame. It only needs to install the column, the foot and the side bracket, and then the installation can be easily completed.
Create your own standing workstation and be able to sit or stand on demand throughout the long work day with electric single motor height adjustable desk frame from NAKIN! Single motor height adjustable desk frame adjust your desk’s height in seconds with this sturdy frame featuring a single motor lift system for smooth transitions, a simple 2 button controller, adjustable feet, and solid leg support for desk surfaces weighing up to 800N. The thermal motor is protected against overheating to ensure this desk’s safety and longevity.
Features
- Adjustable height range: 565-1185mm
- Frame extendable range: 1194-1800mm
- No hole leg design, no screw on the outside of frame
- Load capacity: 800N
- Max speed: 25mm/s
- Low noise level: <50dB with no-load condition
- Anti-collision safety protection
- Low standby power <0.1W
- Duty cycle: 10 %, Max. 2 minutes operation/Min. 18minutes rest of continuous use at full load
- Working environment: Indoor Storage and transport temperature: -10℃ ~ 70℃
- Surface: powder coating with standard colors: White,Black, Grey
| Height(mm) | Stroke(mm) | Speed(mm/s) | Width(mm) | Load Capacity(N) | Noise dB(A) | Surface Color |
| min.565/max.1185 | 650 | 25 | 1194-1800 | 800 | <50 | Black/White/Silver |

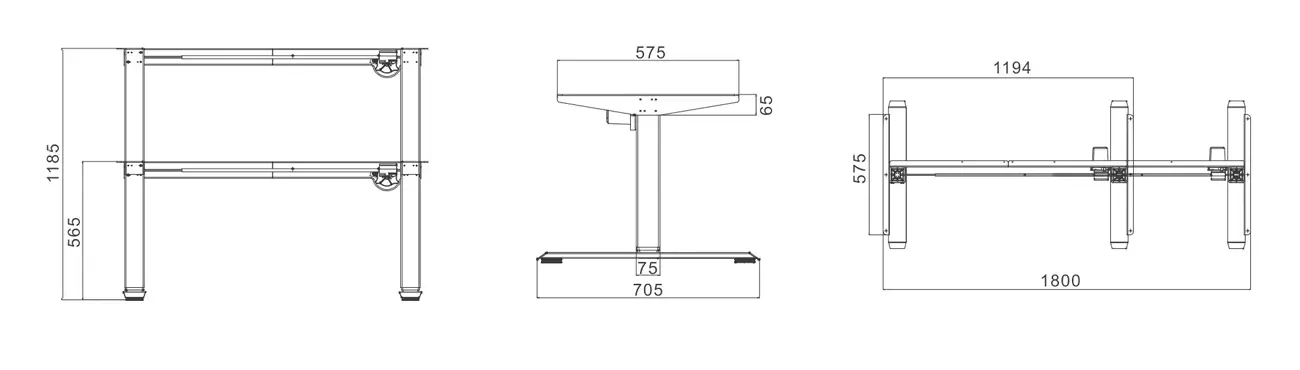

NKLD4 Dimensions
