Introduction
3 stage l shaped standing desk legs have strong steel design, quiet operation and precise movement, complete standing desk base electric lift system includes all the necessary components: control boxes and remote control. Simply combine it with a tabletop of your choice to make your own height adjustable standing desk.
Features
- Adjustable height range: 685-1185mm
- Frame extendable range: 1080-1800mm
- No hole leg design, no screw on the outside of frame
- Load capacity: 1500N
- Max speed: 32mm/s
- Low noise level: <50dB with no-load condition
- Anti-collision safety protection
- Low standby power <0.1W
- Surface: powder coating with standard colors: White, Black, Grey
| Height(mm) | Stroke(mm) | Speed(mm/s) | Width(mm) | Load Capacity(N) | Noise dB(A) | Surface Color |
| min.685/max.1185 | 650 | 32 | 1080-1800 | 1500 | <50 | Black/White/Silver |

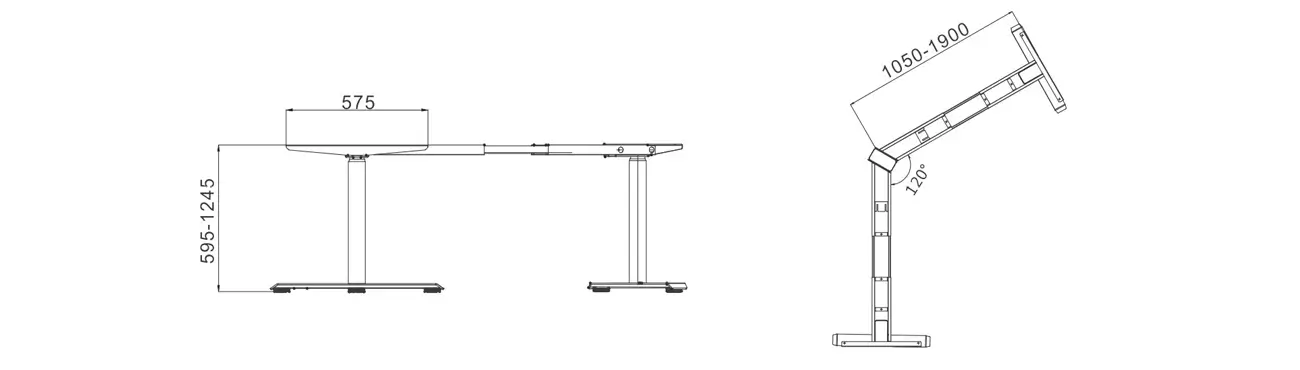

NKLD5-3-180 Dimensions
