Single motor height adjustable desk frame
adjustable standing desk frame
Introduction
Desk frames are the foundation of your standing desk. Create a comfortable, multipurpose setting for a variety of uses including: packing tables, writing emails, or coding.
steel desk frames are the foundation of your standing desk. Frame width’s can be adjusted to suit your needs without compromising on the frame’s strength or reliability.
Boost your productivity and workplace health by using an ergonomic desk with easy height adjustment to break the monotony of seated office work. Upgrade to this large, professional‑grade, L-shaped sit-stand desk frame that wraps around your workspace, giving you more desk space, all within easy reach. Make efficient use of your corner space or create functional space division by enclosing your work area with your desk.
We designed the frame to be super easy to install and quick to fit, with all tools and parts you need included. It has all the same features as the desk, with three powerful motors that ensure smooth transitions between heights. You can program your preferred heights into memory, so that you can switch at the touch of a button.
Features
- Adjustable height range: 595-1245mm
- Frame extendable range:
main frame:1080-1800mm to fit desktop from 1200-1800mm;
return frame: 1050-1800mm to fit desk top from 1100mm to 1800mm(Including the overlap of the main sub-desk part)
- Foot size selection: 600mm or 700mm (middle column can fit foot block)
- No hole leg design, no screw on the outside of frame
- Load capacity: 1500N
- Max speed: 40mm/s
- Low noise level: <50dB with no-load condition
- Anti-collision safety protection
- Low standby power <0.1W
| Height(mm) | Stroke(mm) | Speed(mm/s) | Width(mm) | Load Capacity(N) | Noise dB(A) | Surface Color |
| min.595/max.1245 | 650 | 40 | 1080-1800 | 1500 | <50 | Black/White/Silver |

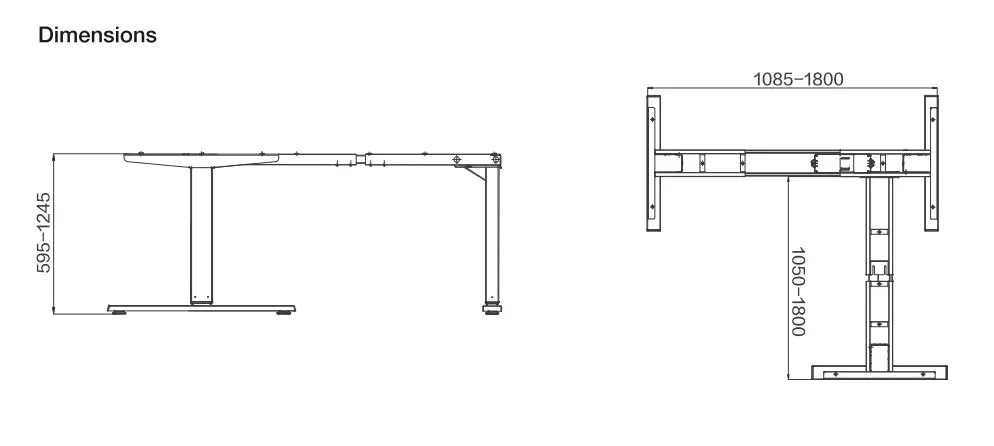

NKLD5-3-90 Dimensions
