Introduction
Window open 24vdc linear actuator Nkla86 Actuator Heavy-Duty Applications: NAKIN heavy-duty linear actuator boasts 1320lbs/6000N powerful torque output, perfect for industrial automation and heavy-duty lifting systems. It’s designed to tackle high-torque and heavy-load tasks with ease, providing reliable performance in demanding environments.
Window open 24vdc linear actuator Nkla86 Durable Construction: Reinforced design and an all-metal transmission mechanism ensure reliability even under high loads, making it suitable for a wide range of industrial and home automation applications. It’s built to withstand long-term use and provide dependable operation.
Window open 24vdc linear actuator Nkla86 Versatility Unleashed: Get ready for a quiet revolution! NAKIN’s linear motion actuators, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation, and more. Enjoy seamless functionality wherever you need it!
IP44 Protection Rating: Featuring an IP44 protection rating, the NAKIN 12V linear actuator excels in environments with dust, solid particles, and light-splashing water. Count on it to withstand dust and moisture in general industrial and household applications. (Caution: Water should not penetrate the interior of the motor).
Features
- Stroke Length: 25~350mm
- Color: Black
- Limit Switch: Switch at both ends
- Duty Cycle: 10%, max 2min continuous use
- Standard: CE
- Load:800~4000N
- Speed: 6~42mm/s
- Operating Temperature: -5C~+40C
- Input: DC29V
- Installation Size: S+150mm
- IP Grade: IP42
- Relative Humidity: 20%~75%
- Option: Various power supplies and hand controllers can be configured
- Key Specifications: Stroke Length: 16 inches (400mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 24.01″ (610mm); Extended Length: 40.01″ (1010mm); Current Draw: 8amps; Rated Voltage: DC12V; Duty Cycle: 10%.
| Model | NKLA86 |
| Dynamic Load push(N) | 800~4000 |
| Dynamic Load pull(N) | 800~4000 |
| Input(VDC) | 29 |
| Speed at Full Load(mm/s) | 6~42 |

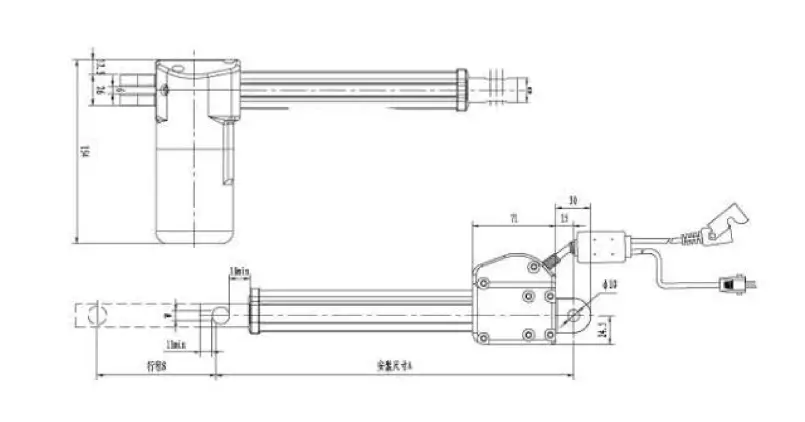

NKLA86 Dimensions
