12V 2 inch Micro Pen Type Linear Actuator
load 6000n ip66 electric linear actuator
Introduction

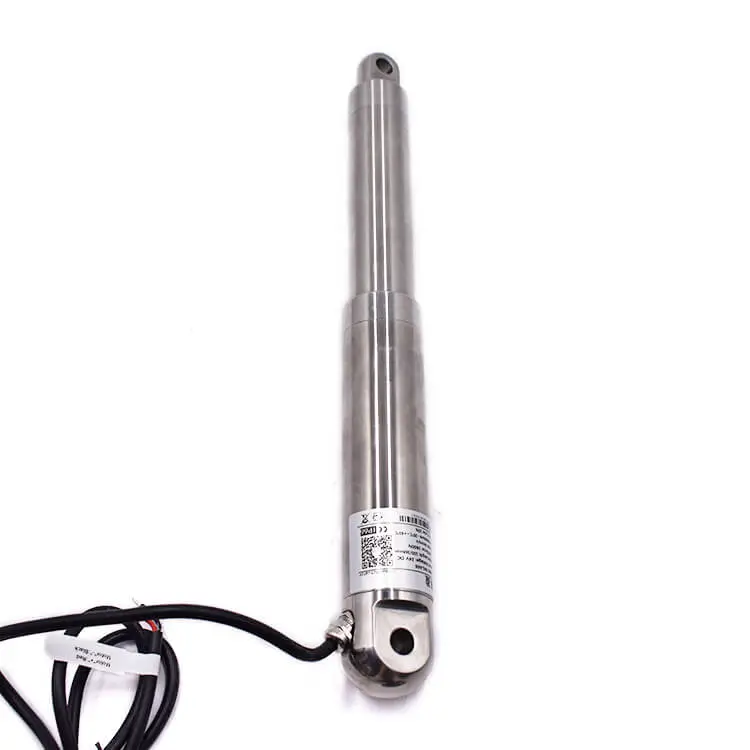

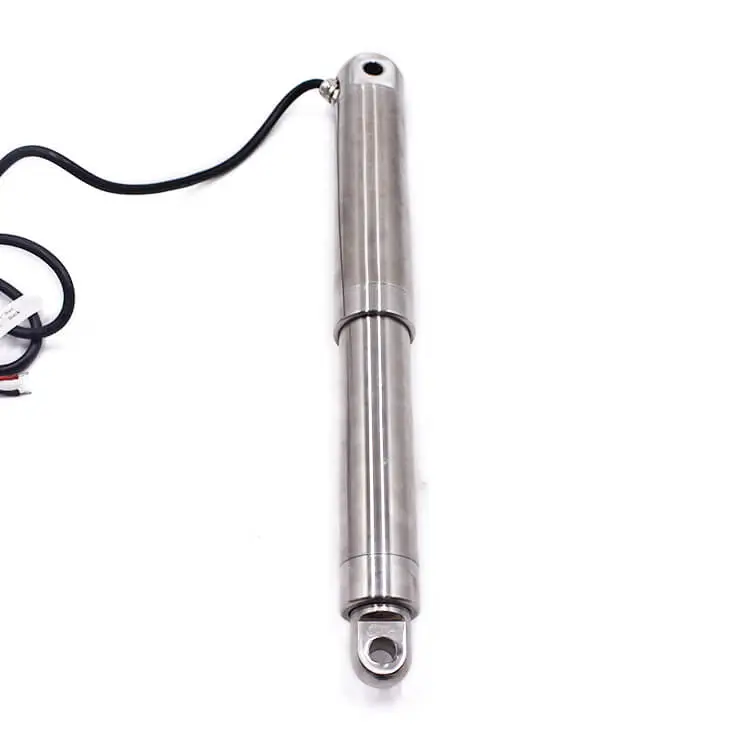

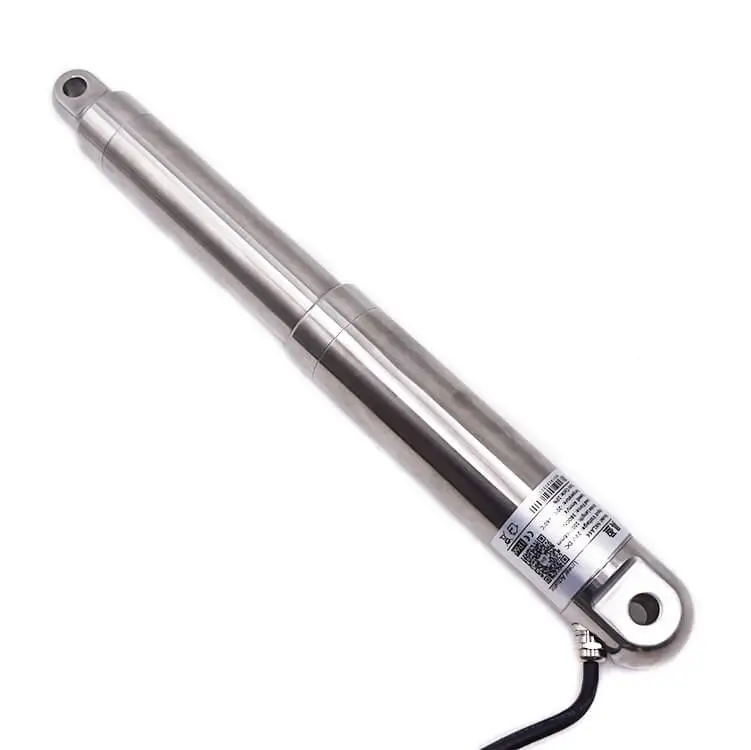

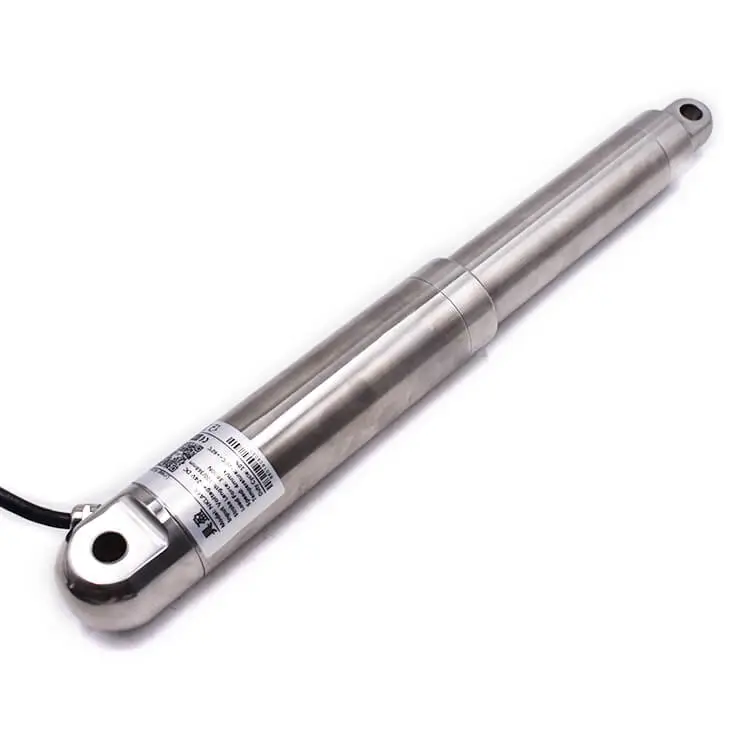

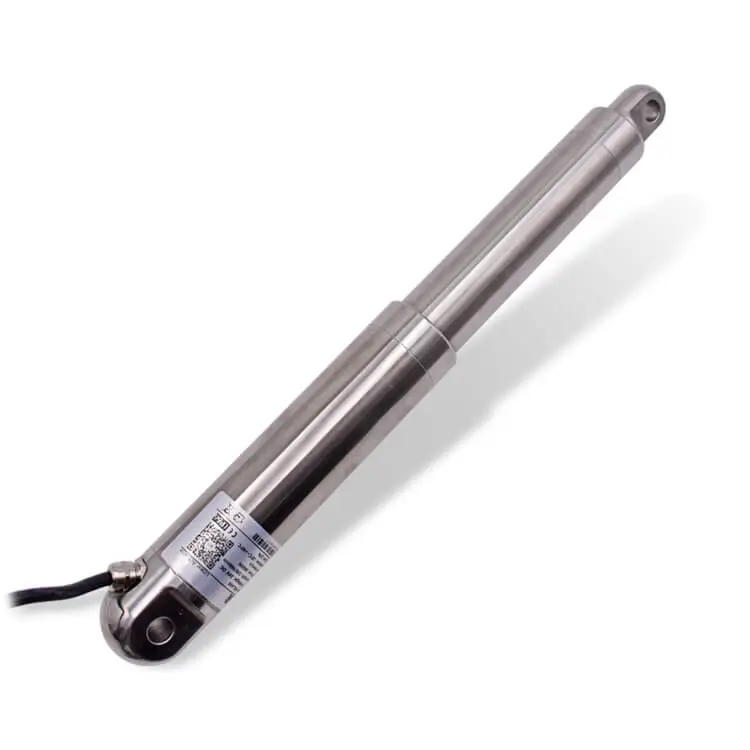

tubular 45mm fast IP66 linear actuator NKLA66 inline linear actuator the protection level can reach ip66, and the planetary gear reduction transmission structure is used to greatly improve reliability. meet your needs. and it applicable to: suitable for electric bed, electric lift bed, electric lift table, electric reclining chair and other electric actuator equipment.tubular 45mm fast IP66 linear actuator NKLA66 NAKIN Inline electric linear actuators can be built with aluminium, powder coated steel or stainless steel materials. The products are also equipped with over current circuit protection. This protects the actuator when it travels to the end of its stroke or is overloaded, as it will stop automatically when over current is detected.
Meanwhile, the tubular 45mm fast IP66 linear actuator NKLA66 actuators have a Hall sensor function which can position the actuators precisely and allows control of two linear actuators working synchronously.Our inline linear actuators are widely used in industries and markets from homes to hospitals, in machinery and construction, from shutters to cabinets and electric sofas, from power wheelchairs to medical bed equipment, from production automation to vehicle and lifting platforms etc., all of which makes your life easier and more powerful!
Features
- Stroke Length: 50~400mm；
- Color: Grey；
- IP Grade: IP66, waterproof；
- operating Temperature: -20C~+60C；
- Noise: 75dB；
- Option: Hall sensor; Limit switch; Overload protect;
- Compact size and elegant design；
- Integrated with high-efficiency 12VDC or 24VDC brushed motor and planetary gearbox；
- With built-in limit switches；
- Diameter: 16mm, 26mm, 35mm, 38mm, 45mm & 52mm；
- Max load capacity: 6000N；
- Standard stroke: 50mm–400mm, customised stroke available upon request；
- Max. loaded speed: up to 55mm/s；
- IP66 protection class or IP67M as an option on certain models；
- Body materials: in aluminium, stainless steel or powder coated 45# steel；
- Hall sensors for precision control and positioning；
- Duty cycle: Max. 10% or 2 minutes in use followed by 18 min rest；
- Over-current circuit protection；
- Ambient temperature: -5°C to +40°C (storage: -40°C to +70°C)；Noise on load: 45-65dB
| Model | NKLA66 | NKLA66 | NKLA66 |
| Dynamic Load push(N) | 300 | 1600 | 3800 |
| Dynamic Load pull(N) | 300 | 1600 | 3800 |
| lnput(VDC) | 12/24 | ||
| Speed at Full Load(mm/s) | 45 | 11 | 4 |

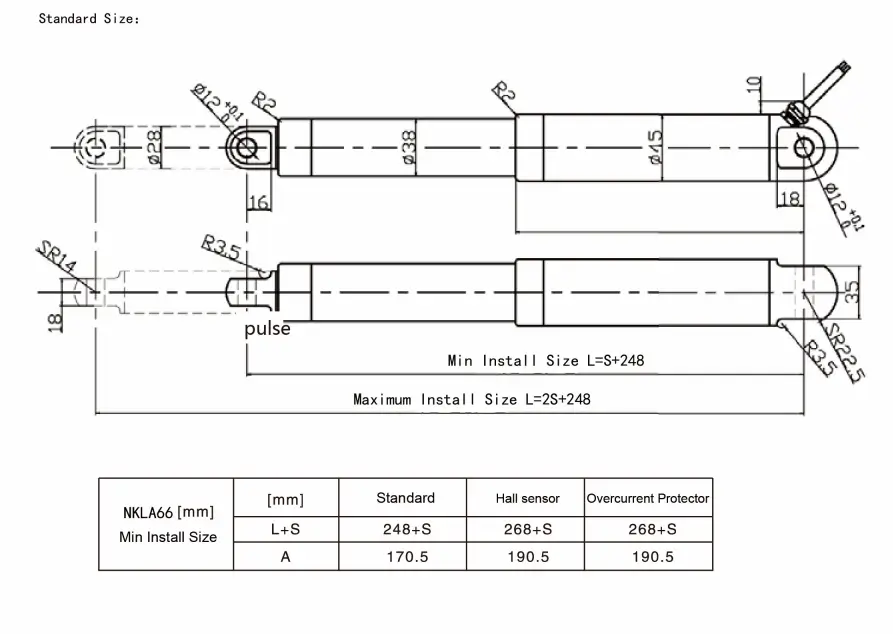

NKLA66 Dimensions
