Introduction

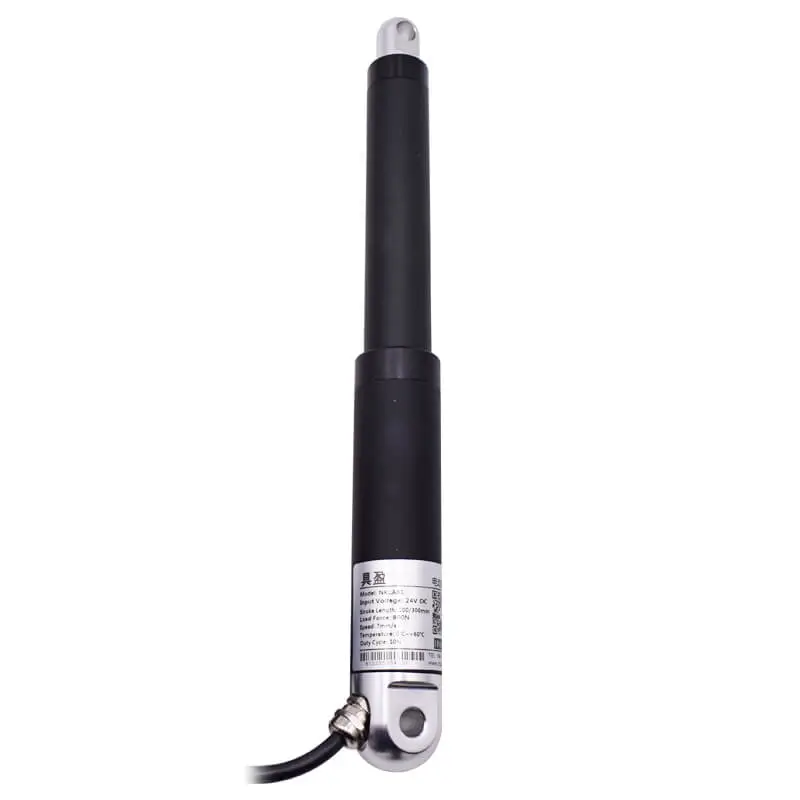

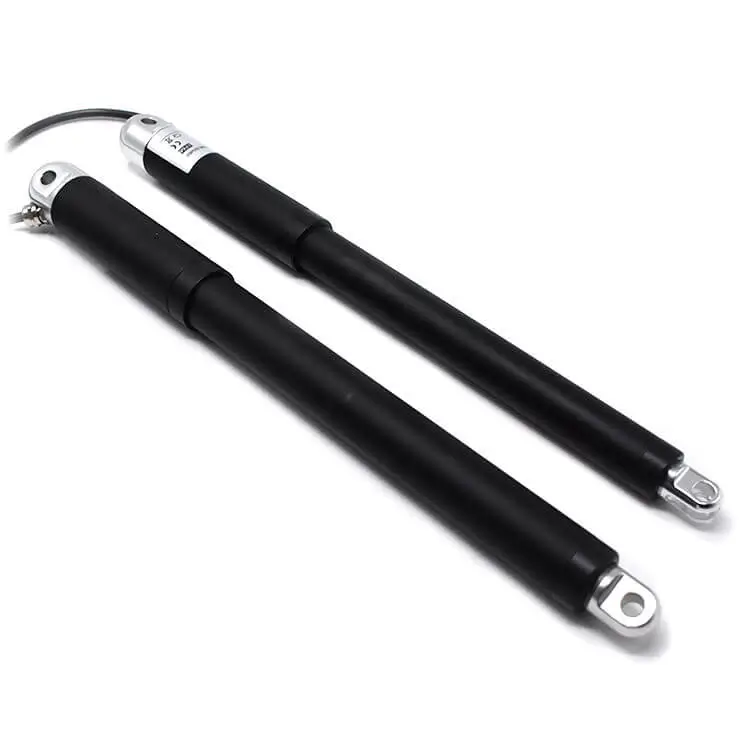

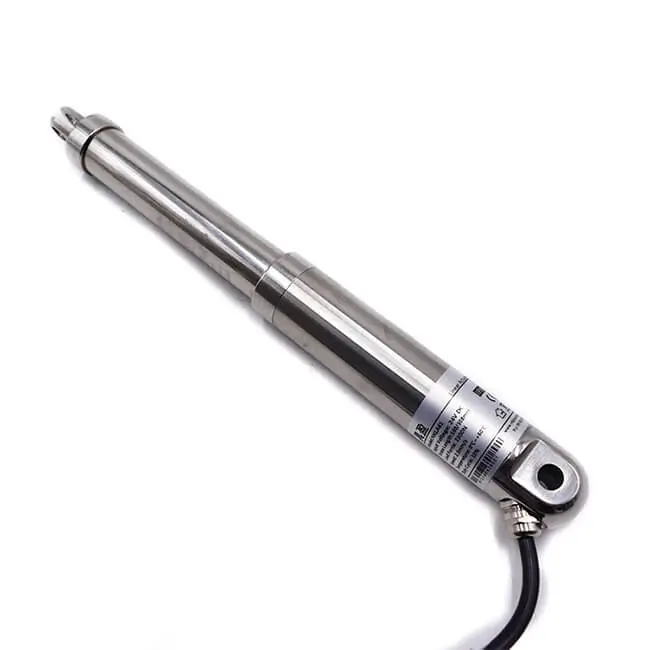

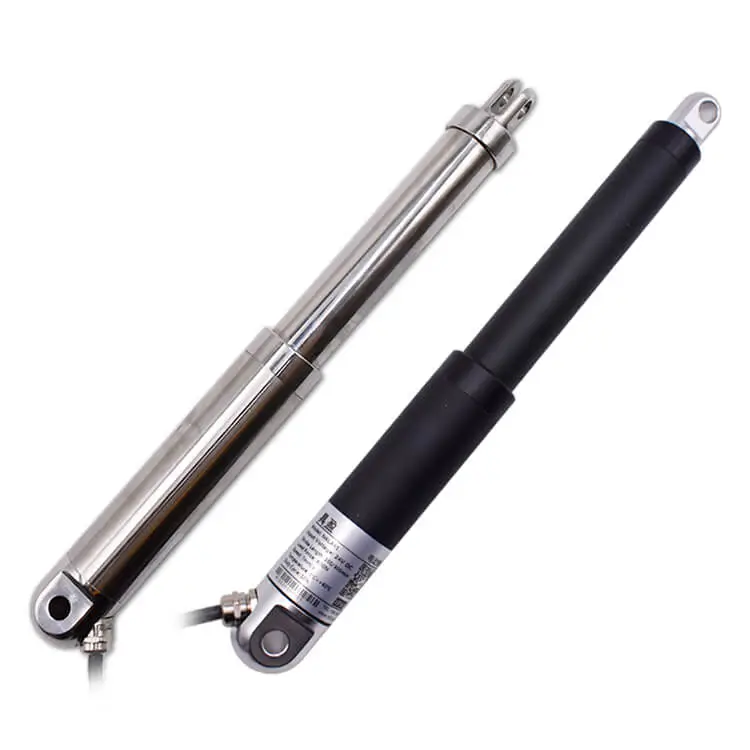

Tubular 2300N low noise linear actuator NKLA61 for Chicken coop door opener can be applied using our electric linear actuator due to slow & gentle door closure or positive stop to prevent against harm or injury. A must-have product for agriculture, industrial and farm needs. Tubular 2300N low noise linear actuator NKLA61 was developed to have a slim, in-line motor design. These units have built-in hall effect sensors, which allow for synchronization, position, and speed control. The Hall effect feedback is vital to applications where multiple actuators must travel in sync. Popular within robotics, manufacturing, marine, off-road vehicles, and home automation.
Tubular 2300N low noise linear actuator NKLA61 environment stays safe as the lack of hydraulic oil or other potentially harmful fluids in our boats, catamarans and yacht actuators. Has a compact and small size. Holds load with power for safety overload protection. Load ratings from 22 to 180 lbs.
Tubular 2300N low noise linear actuator NKLA61 for Marine automation. Tubular 2300N low noise linear actuator NKLA61 Important tasks like opening large engine hatches not only makes your life easier, it improves safety when you need quick access for engine adjustments. Cylinder will be able to function properly when surrounded by water and other outdoor elements.
Features
- Stroke Length: 50~1000mm
- Color: Black/Silver Grey*
- IP Grade: IP66
- Operating Temperature: +5C~+40°C
- Noise: 45~48dB
- Optional: Hall sensor; Limit switch
- Min Installation Size :stroke+178mm(without hall sensor or overload protect)stroke+200mm(with hall sensor or overload protect)
| Model | NKLA61 | NKLA61 | NKLA61 |
| Dynamic Load push(N) | 100 | 800 | 2300 |
| Dynamic Load pull(N) | 100 | 800 | 2300 |
| lnput(VDC) | 12/24 | ||
| Speed at No Load(mm/s) | 43 | 7 | 2.5 |
| Speed at Full Load(mm/s) | 43 | 7 | 2.5 |

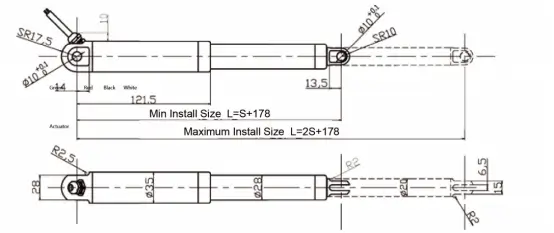

NKLA61 Dimensions
