Introduction

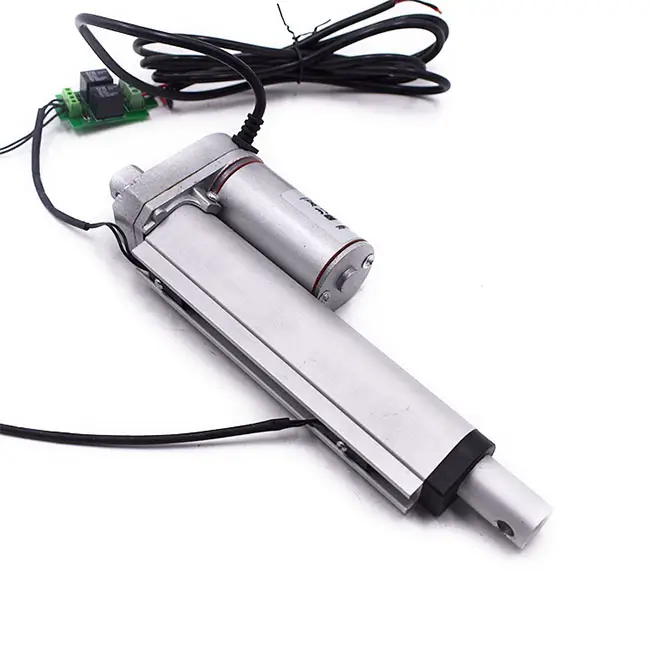

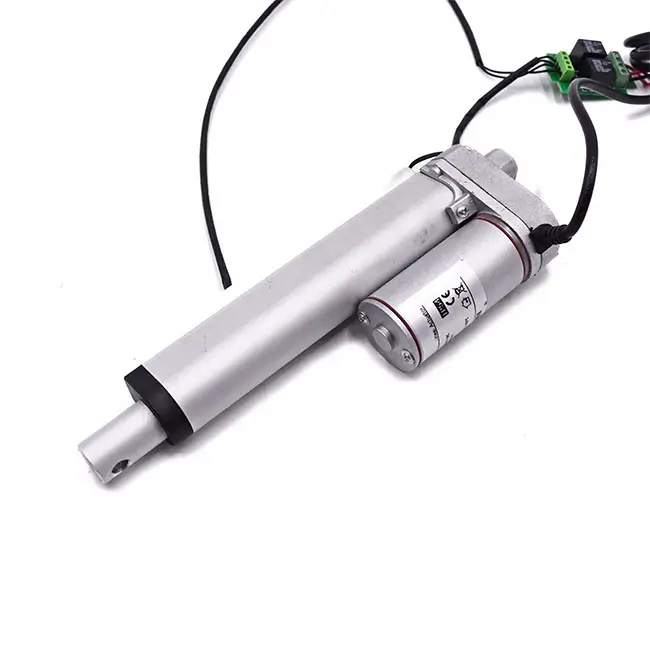

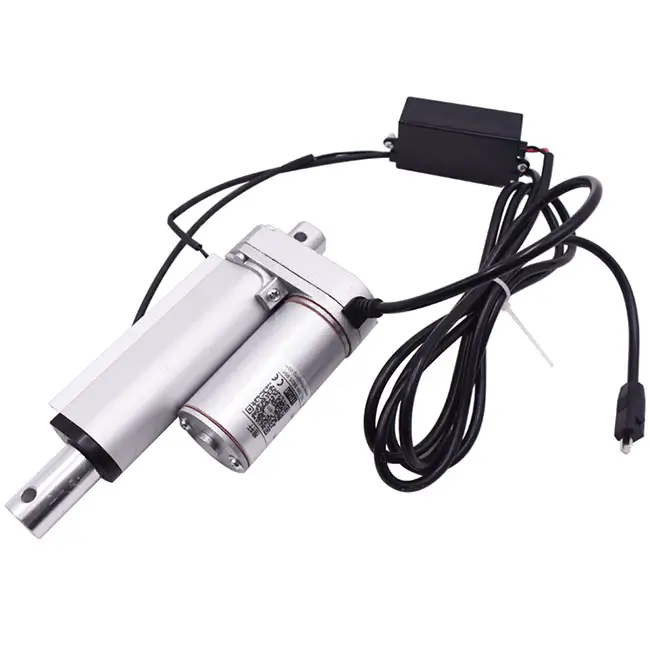

NKLA36 is compact and lightweight electric linear actuator, made of aluminium, could stop itself by taking dc motor reduction gear ratio. Its adjustable stroke makes it easy to install and operate. This type of electric linear actuator has external magnetic switch that only feedback signals, if wanting to change it into electric signals to stop electric linear actuator, you should connect it to PCB. PCB is optional accessory.

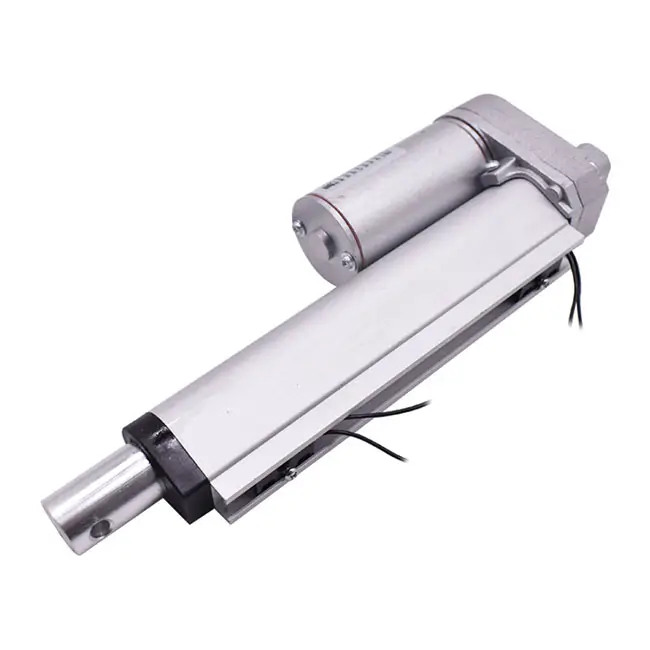

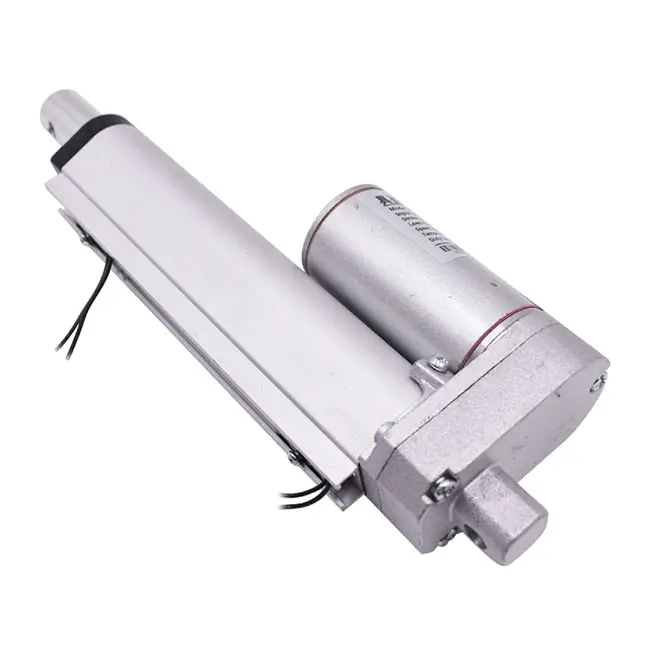

NKLA36 stroke adjustable linear actuator utilizes a track linear motion design in a compact body. The unique construction allows for applications that require fixed mounting points. Some examples of the key industries that use this track actuator include the enteral,home and office automation industries.
Features
- Max load: 900N
- Duty cycle: 20%(high-speed condition 10%)
- Max static load: 2300N
- Ambient temperature: -20°C~+65°C
- Material:Aluminium alloy outer tube and pushrod
- IP Grade: IP54 or IP65
- Input voltage:12,24,36,48VDC
- external magnet switch,adjusted stroke
- Powder metal gear
| Product name | NKLA36 linear actuator | ||||||
| Load force(N) | 900N | 800N | 600N | 300N | 200N | 100N | 50N |
| NO load speed(mm/s) | 3 | 10 | 16 | 26 | 30 | 50 | 80 |
| Stroke length (mm) | 50mm~600mm (option>600) | ||||||
| Retracted length(mm) (mounting length ) |
Stroke +120mm | ||||||
| IP grade | IP54 | ||||||
| Duty cycle | 20% , max 4 min. continuous use | ||||||
| Limit Switches | Built in | ||||||
| Color | Black or silver | ||||||

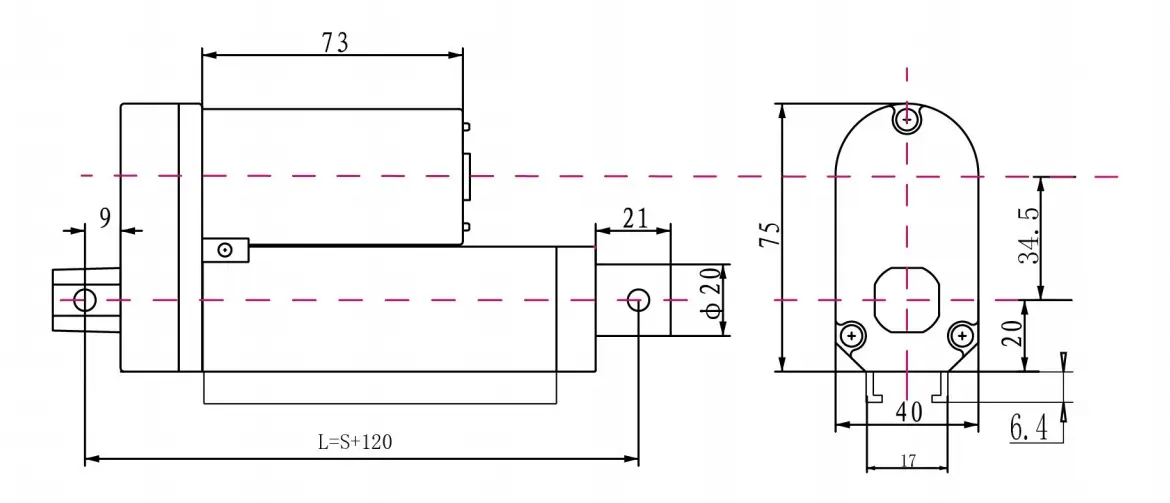

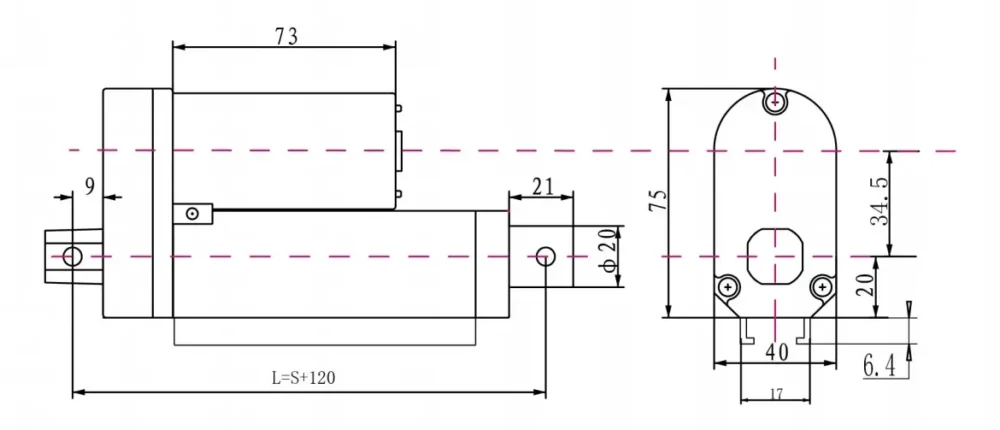

NKLA36 Dimensions
