Introduction

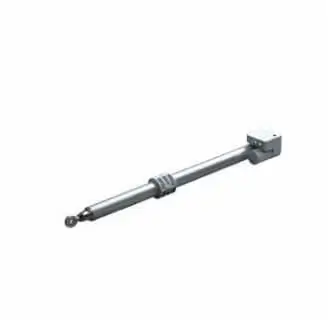

solar tracker 18″ 12 volt linear actuator nkla57 and 24″ dc linear actuator are specifically designed to control the north/south movement on large solar trackers. This actuator is compatible with Nakin’s solar tracking electronics and most other solar electronics (up to 12 amps of current), limit switches are pre-installed in the actuator. the linear actuator will stop moving after it extends 24 inches even if the solar tracking electronics tell the actuator to keep moving.
This nkla57 linear actuator is easily on a solar tracker with 2500 watts of solar panels. Nkla57 solar tracker 18″ 12 volt linear actuator high-force industrial linear actuator is one of the strongest units in our line-up. the stainless steel shaft accompanied by metal gears allows the actuator to push and pull up to 3000 lbs, and hold up to 3500 lbs. The high environmental protection rating produces a versatile unit able to withstand dust, water, and harsh environments.
Solar tracker 18″ 12 volt linear actuator nkla57 for solar tracking systems, efficient solar module tracking. The linear actuator has been specially developed for solar photovoltaic systems. This combination significantly increases the efficiency of complex solar tracking systems and ensures a quicker amortization of investment costs.
Features
- Stroke Length: 50~1500mm
- Color: Silver Grey
- Limit Switch: option
- Duty Cycle: 25%, max 2min continuous use
- IP Grade: IP65
- Operating Temperature: -20°C~+60°C
- For solar tracking
| Model | NKLA57 |
| Dynamic Load push(N) | 12000 |
| Dynamic Load pull(N) | 60000 |
| lnput(VDC) | 12/24VDCor 120/230VAC |
| Speed at Full Load(mm/s) | 2.5 |

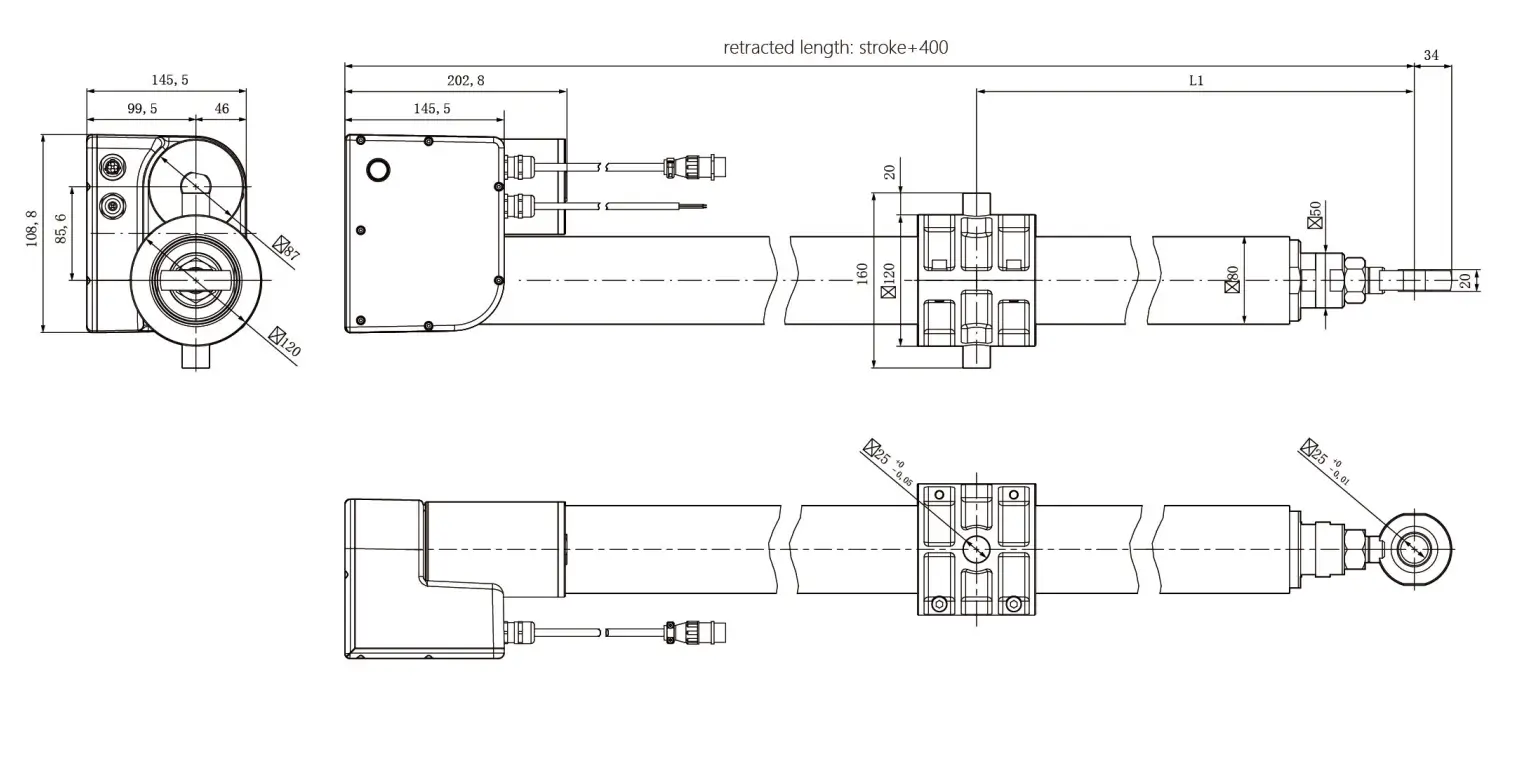

NKLA57 Dimensions
