Introduction
Slide track Linear actuators are used when automating furniture, optimizing your space, and making certain items easier to navigate. Hidden TV cabinets and automated kitchen appliances, such as spice racks, can be automated for your convenience.

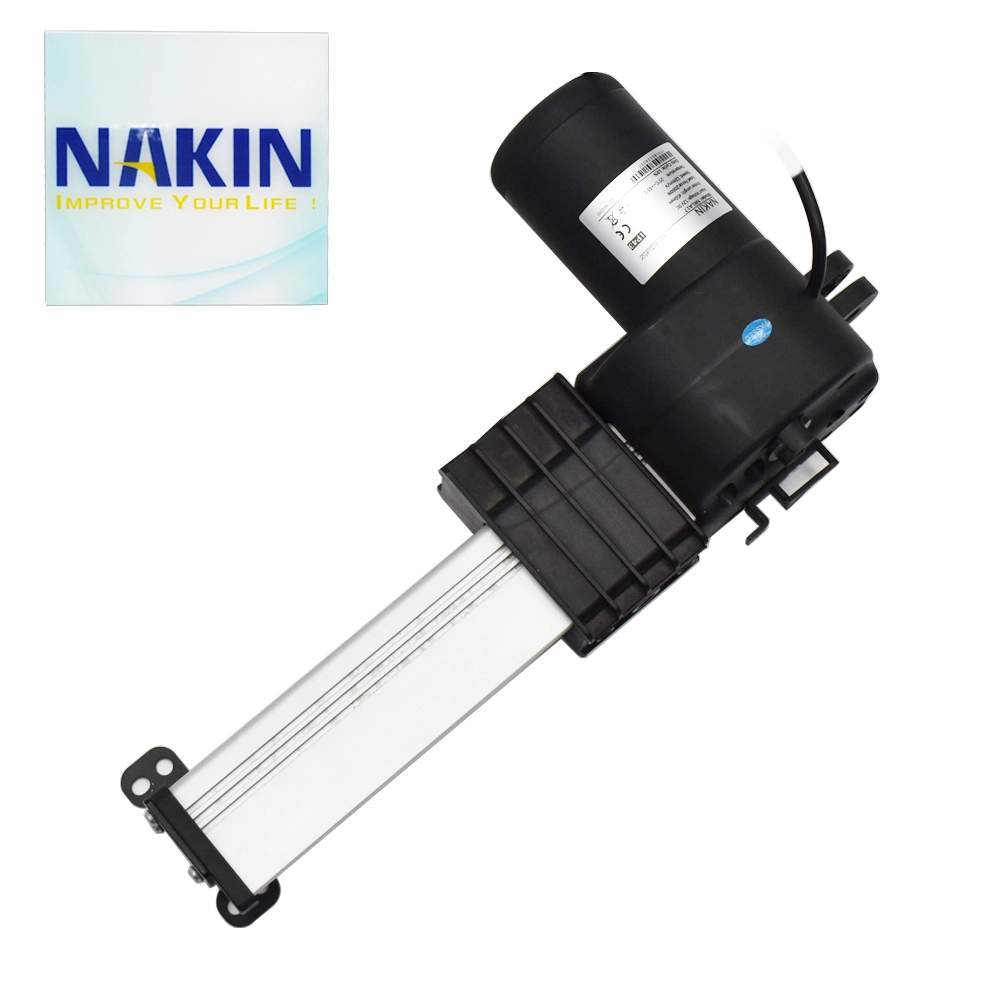

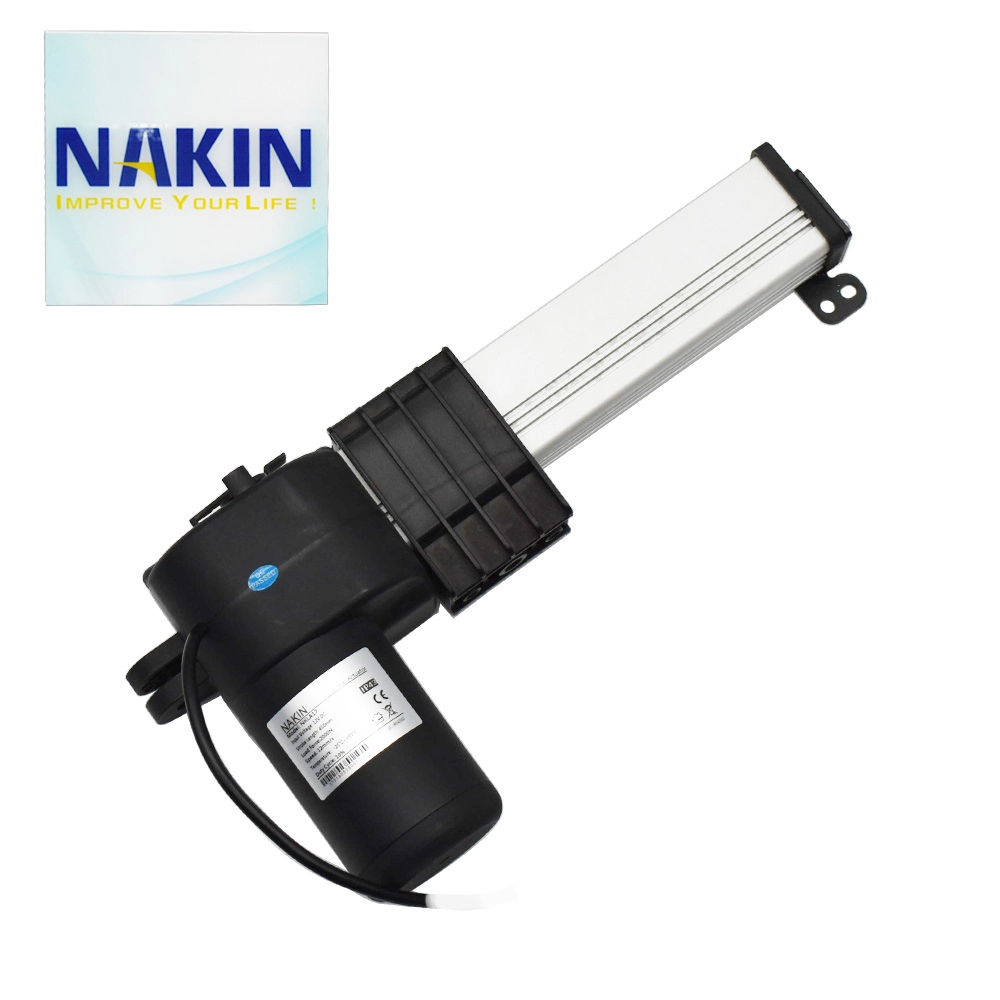

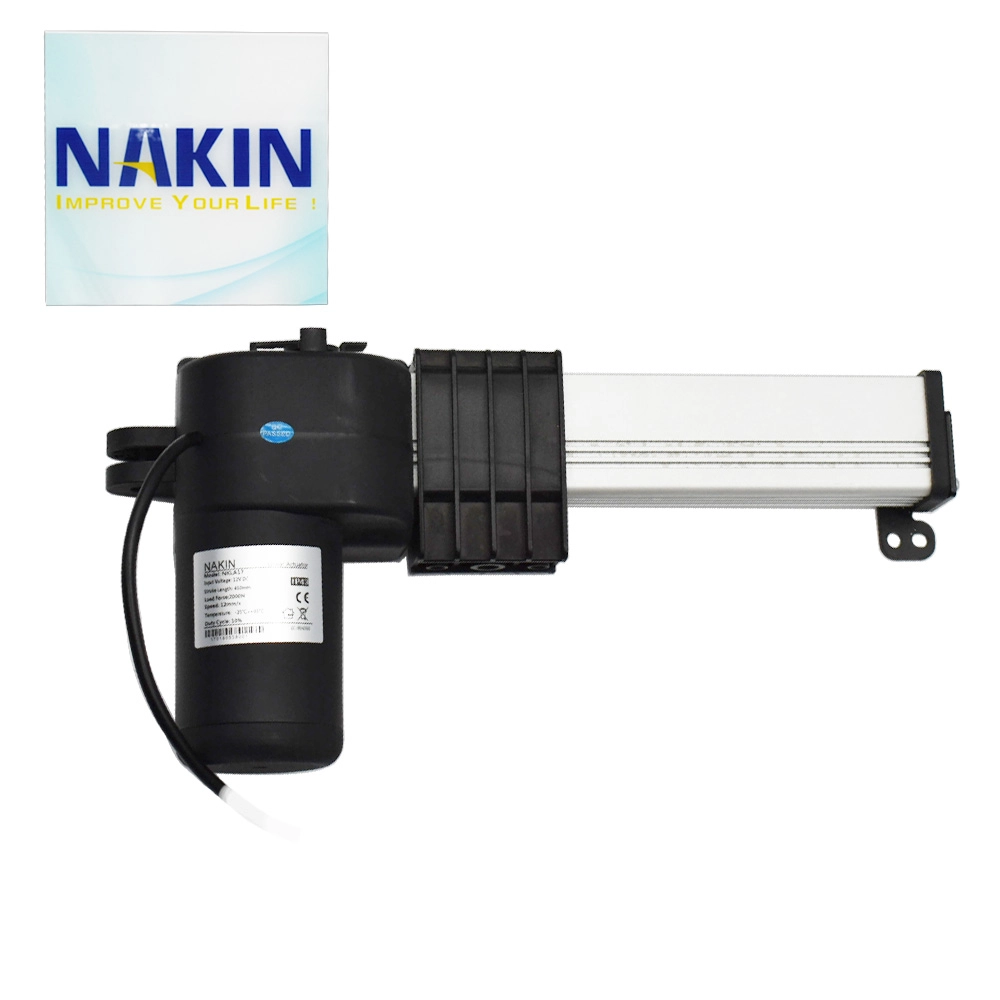

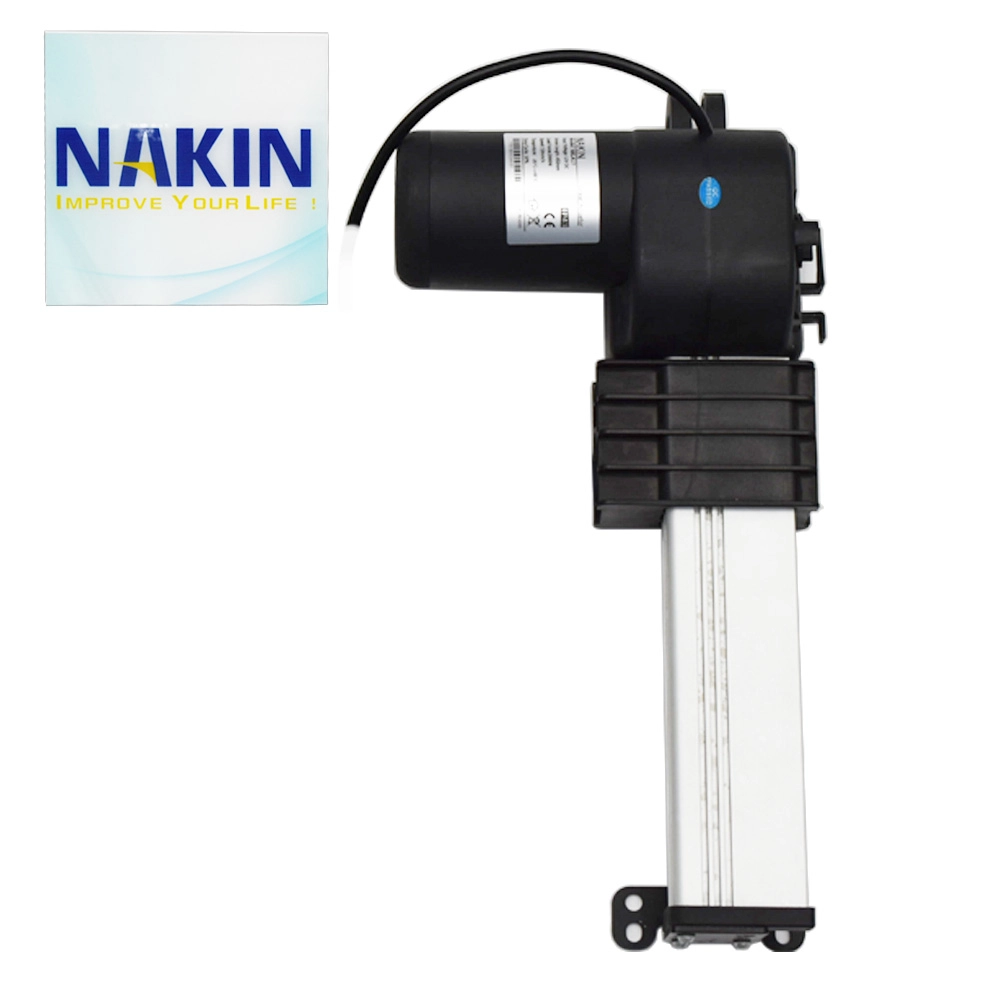

NKLA17 track actuator utilizes a track linear motion design. The unique construction allows for applications that require fixed mounting points. Some examples of the key industries that use this track actuator include the general , home and office automation industries.
Features
- 24V DC permanent magnet motor
- Thrust up to 4000 N in push and up to 3000 N in pull
- Color: grey or black
- Standard protection class: IP20
- Truck type actuator, nut can slide on aluminium-Alloy
- The average noise level is lower than 45dB(ambient noise is less than 40dB)
- Built-in electronic limit switches
| Max. load push（N） | 4000 | 2000 | 750 |
| Max. load pull（N） | 3000 | 1500 | 500 |
| Self-lock*（N） | 3000 | 1500 | 500 |
| Input（VDC） | 24/12 | ||
| Speed at Full Load（mm/s) | 4 | 9 | 22 |
| Stroke Length（mm） | 100-400(option＞400） | ||
| Mounting position | H type | ||
| Colour | Black or Grey | ||
| Limit Switch | Build-in | ||
| Overload Protection | Yes | ||
| Duty cycle | 10%, max 2min. continuous use | ||
| IP Grade | IP20 | ||
| Operating Temperature | +5℃~+40℃ | ||
| Optional Features | Hall sensor option | ||
| Relay free option | |||

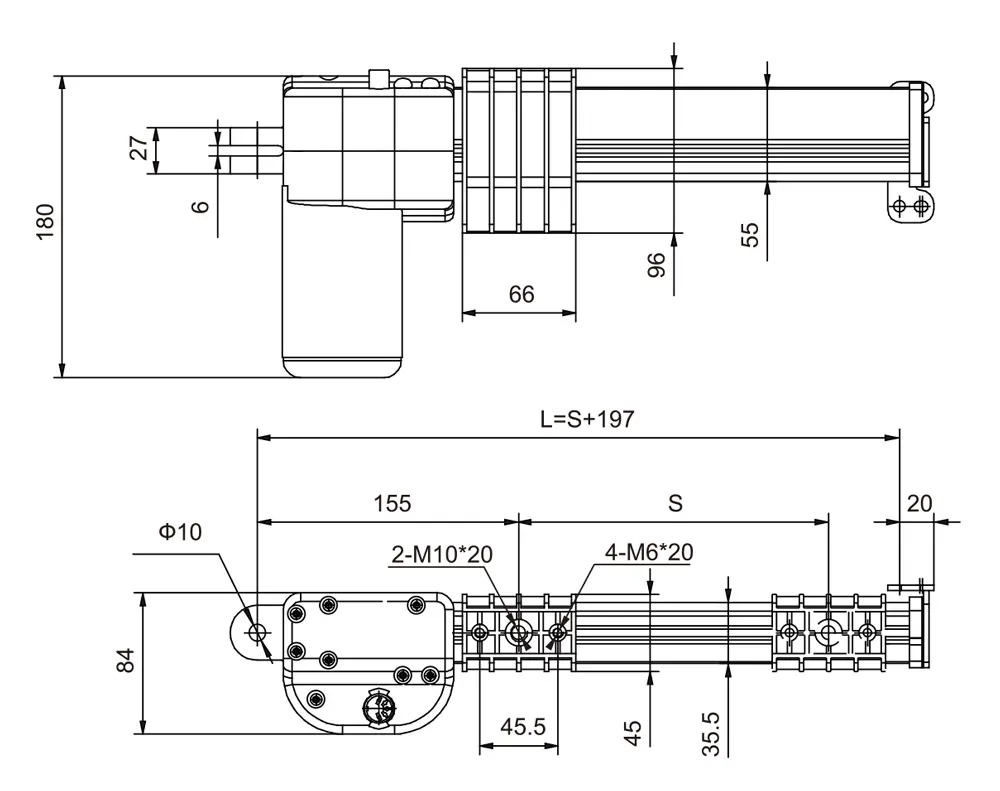

NKLA17 Dimensions
