high load medium pressure linear actuator
IP54 6000N electric linear actuator
Introduction

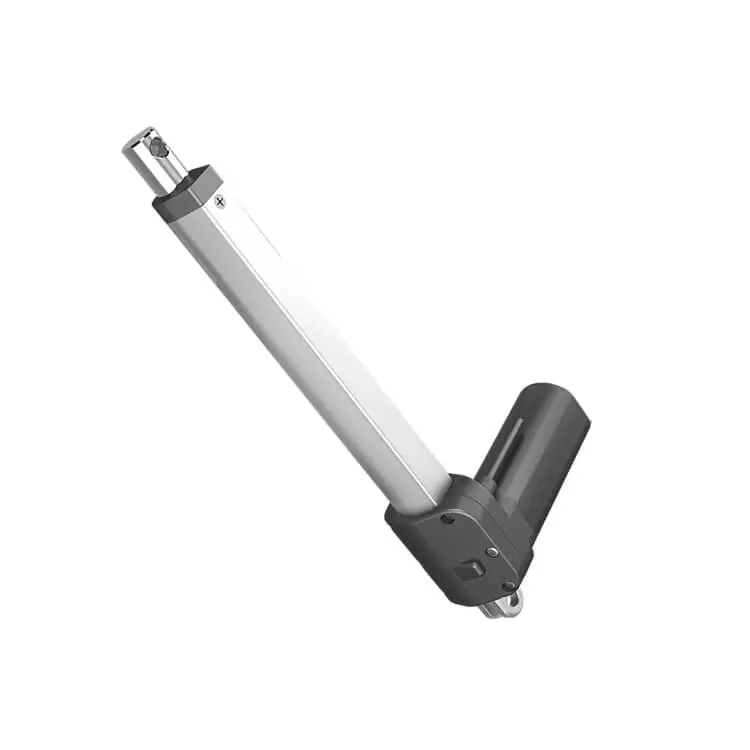

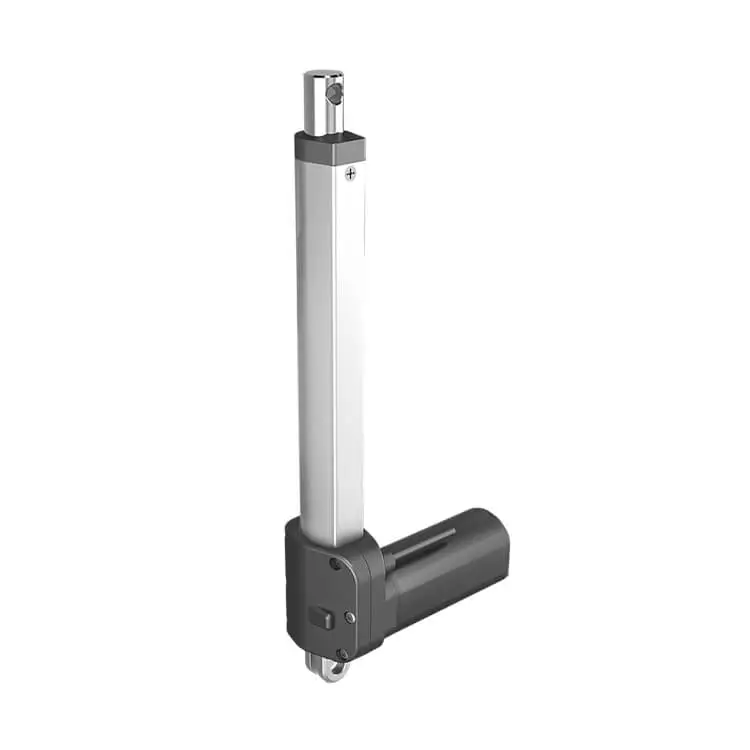

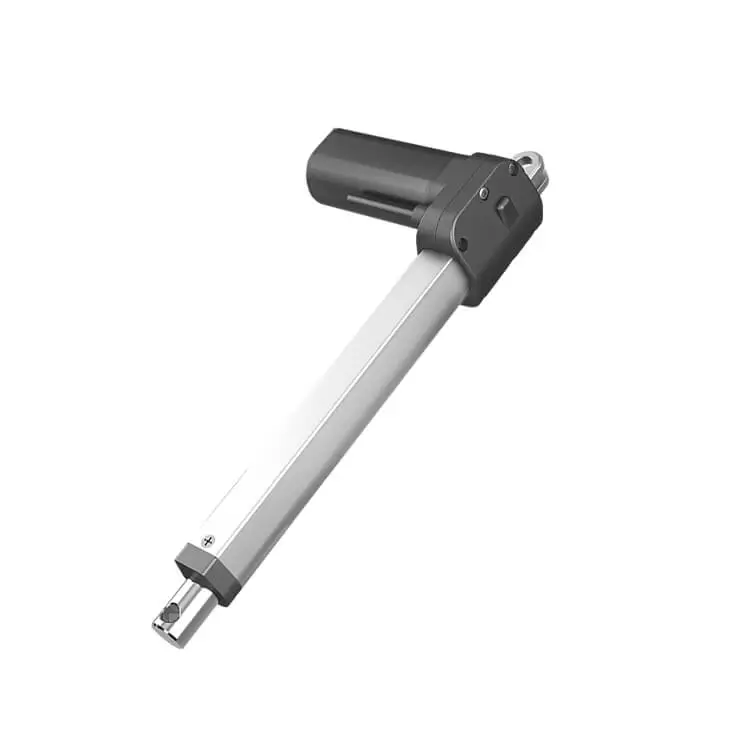

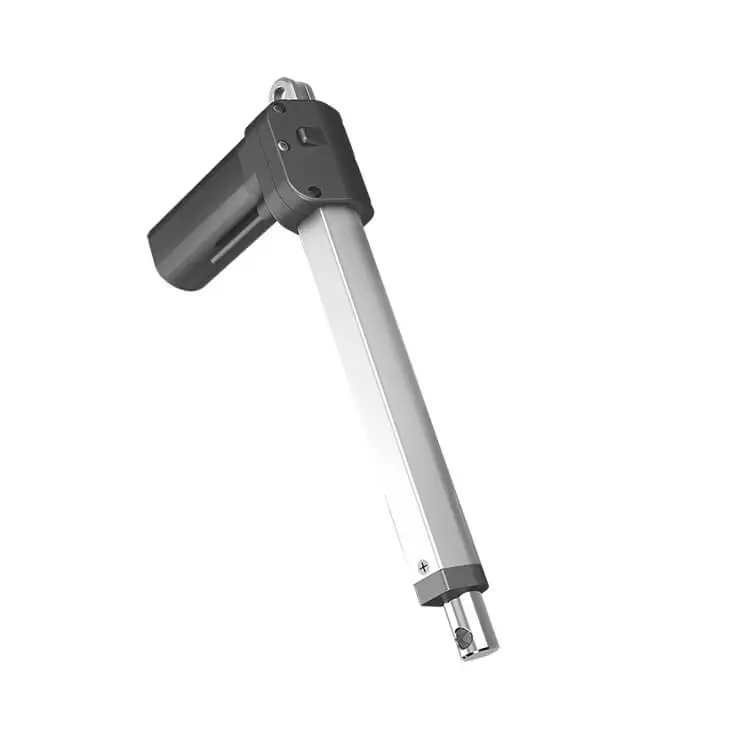

push 3000N pull 2000N linear actuator Nkla111 push rod cylinder is equipped with a strong 900 N motor. When the electrical actuator works, it is not noisy with ≤50dB sound. Reliable performance and stable running. It also has two limit switches on each side to protect the motor.
NAKIN’s push 3000N pull 2000N linear actuator Nkla111 push rod cylinder is one of the smart furniture actuator options with compact dimension. This linear actuator is designed with a custom gear box, molded with a specially formulated plastic material which allows the push 3000N pull 2000N linear actuator Nkla111 push rod cylinder to support load ratings up to 3000N. An EMC certification has been attained for this series, which is also available with optional IPX4 protection.
Features
- Stroke Length:50~600mm
- Max Load Push: 3000N, Max Load Pull: 2000N
- Color: Black or Grey
- Limit Switch: Build-in
- Overload Protection: Yes
- Duty Cycle: 10%. max 2min. continuous use
- IP Grade: IPX4
- Operating Temperature: 0C~+50C
- Optional Features: Hall sensor; Only push option
- Mounting position: H type V type and 45 degrees type
| Model | NKLA111 | NKLA111 | NKLA111 |
| Dynamic Load push(N) | 3000 | 2000 | 1000 |
| Dynamic Load pull(N) | 3000 | 2000 | 1000 |
| lnput(VDC) | 24 | ||
| Speed at Full Load(mm/s) | 4.5 | 8 | 13 |

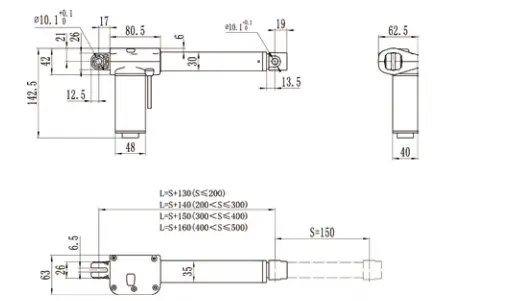

NKLA111 Dimensions
