nkla53 motor 500lbs ac 115v linear actuator
manual operate linear actuator
Introduction
nkla52 ac motor 110v ac linear actuator have the stainless-steel shaft accompanied by metal gears allows it to push and pull up to 2300 lbs, and hold up to 6000N.The heavy-duty ac linear actuator with adjustable limit switches allows customers full control over where to start and stop the actuator. Built-in Adjustable (up to 24″ stroke length).
nkla52 ac linear actuator Linear Actuators -2″, 4″, 6″, 8″, 12″, 16″, 20″, 30″ Stroke Lengths, ac Linear Actuators are actuators which create a motion in a straight line. Unlike a motor, which creates circular motion, a linear actuator can be used with any application that requires moving something in a straight line (e.g. up and down or side to side). NAKIN ac Linear Actuators are a powerful and reliable linear actuator for small to medium loads.
Features
- Stroke Length: 102~610mm
- Limit Switch: Built-in
- Overload Protection: Yes
- Duty Cycle: 25%, max 2min continuous use
- IP Grade: IP65
- Standard: CE
- High efficiency ball screw
| Model | NKLA52 | NKLA52 |
| Dynamic Load push(N) | 1500 | 2300 |
| Dynamic Load pull(N) | 1500 | 2300 |
| lnput(VAC) | 115 or 230 | |
| Speed at No Load(mm/s) | 21~26 | 11~13 |

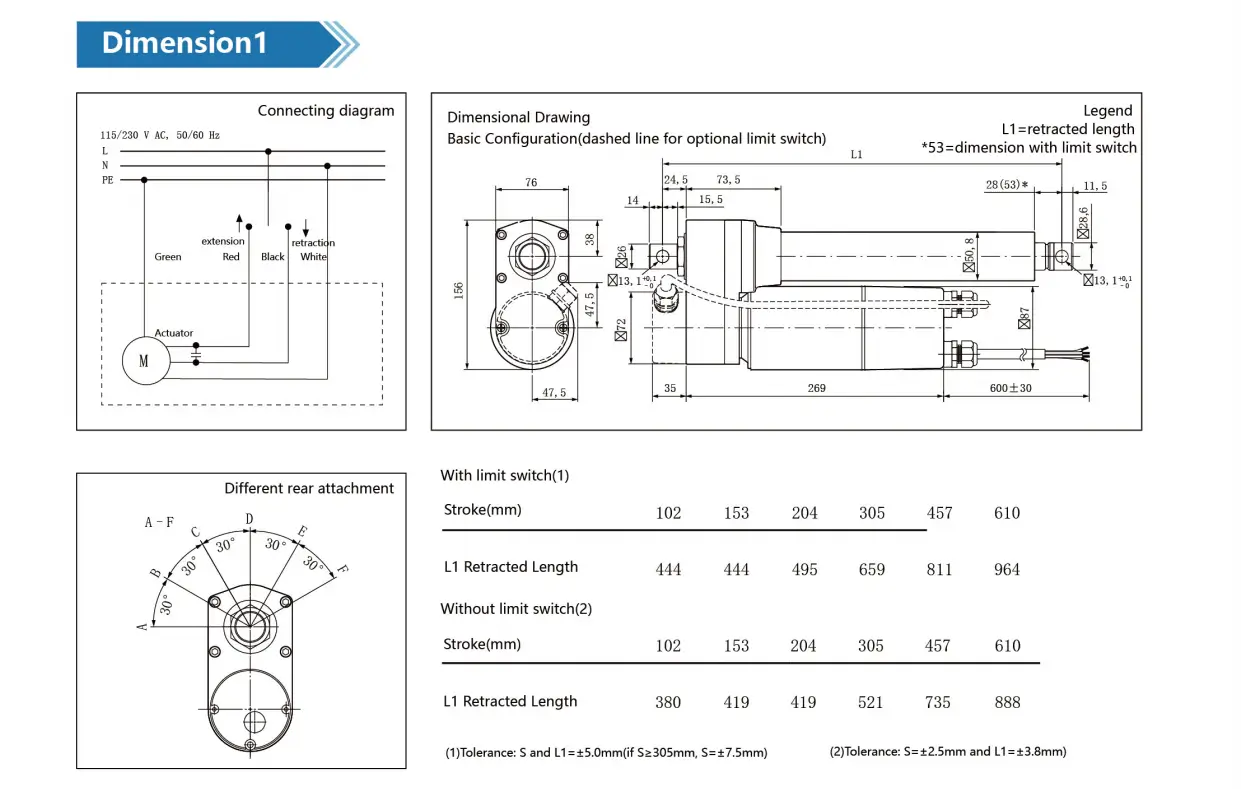

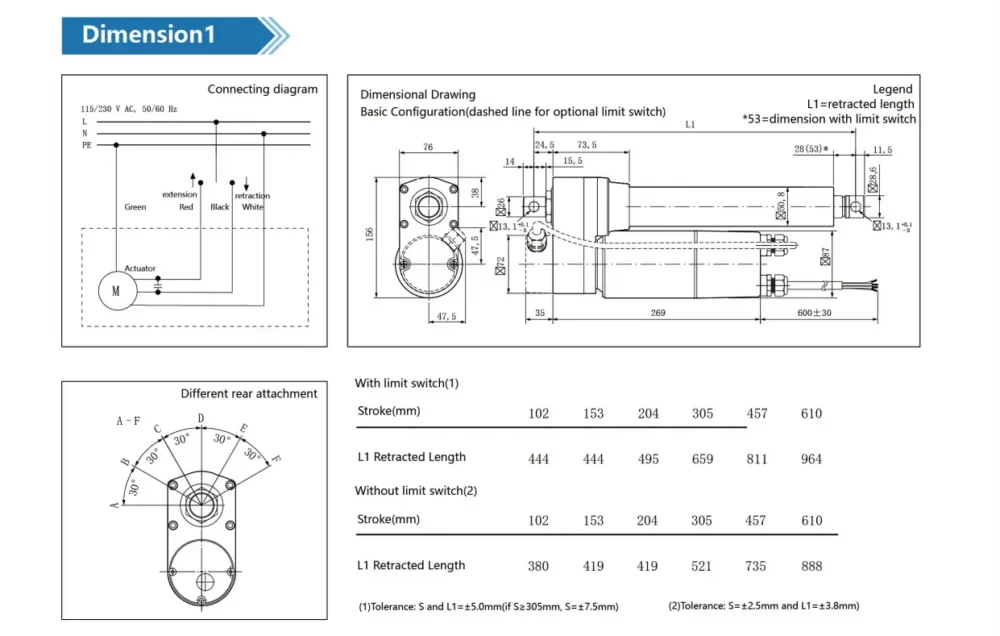

NKLA52 Dimensions
