Introduction
NKLA51 linear actuators 12-volt 225lbs with mounting brackets + AC to 12 VDC power supply + wireless remote control switch.
nkla51 linear actuator with material aluminum alloy housing, ip54 rated protection sealed against dust, water, and corrosion suitable for outdoor use. This model linear actuator is widely used in many industries, such as electric power, machinery, metallurgy, mining, petroleum, chemical industry, transportation, lifting, construction, food and feed processing, and so on.
NAKIN’s Linear Actuator Kits include one linear actuator with mounting brackets and optional accessories to power and control your linear actuator. NAKIN’s Linear Actuator Kits offer a quick, reliable, and professional method for powering, remotely controlling, and wiring these systems. Wiring and installing these units is simple using the included quick snap locking connectors and cable. You can select from various options below:
Power Supply + Remote Control Option: Includes both the 12-volt power supply and the up/down wireless remote control + wires & connectors for one or two linear actuators with mounting brackets depending on your selection. (use the drop-down tab to select linear actuator stroke length).
Power Supply Option: Includes the 12 volt power supply + wires & connectors for one or two linear actuators with mounting brackets depending on your selection. (use the drop-down tab to select linear actuator stroke length).
Remote Control Option: Includes the up/down wireless remote control + wires & connectors for one or two linear actuators with mounting brackets depending on your selection. (use the drop-down tab to select linear actuator stroke length).
Features
- Stroke Length: 50~1000mm
- Color: Silver Grey
- Limit Switch: Built-in
- Duty Cycle: 25%, max 2min continuous use
- IP Grade: IP65
- Operating Temperature: -40°C~+65°C
- Industrial protection and intensity, medical noise
- Actuator Stroke Length = 6 inches,
- Travel speed = 0.39 inches/sec (10 mm/s).
- Actuator Maximum Dynamic Load = 225 pounds (900N),
- Maximum Static Load = 600 lbs,
- Maximum current draw = 2.6 Amps
- IP65 rated (suitable for outdoor use)
| Model | NKLA51 | ||
| Dynamic Load push(N) | 2000 | 1500 | 1000 |
| Dynamic Load pull(N) | 2000 | 1500 | 1000 |
| lnput(VDC) | 12/24/36/48 | ||
| Speed at No Load(mm/s) | 6 | 10 | 15 |
| Speed at Full Load(mm/s) | 5 | 7 | 11 |

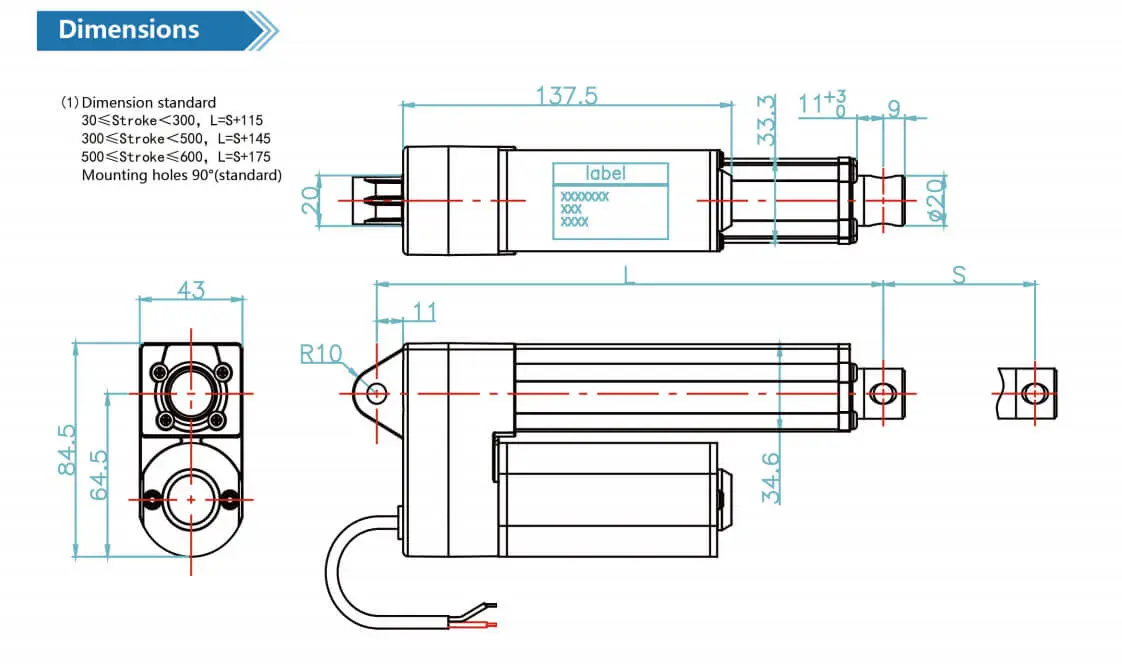

NKLA51 Dimensions
