Introduction
mini tube 18″ 36mm tubular linear actuator nkla69 miniature tubular linear actuator 12V 2 inch Stroke Micro Linear Actuator 44lbs Maximum Lift, Round Tube Diameter 0.8″, Internal Limit Switch.electric linear actuator for sofa, electric lifting lever, unexcelled electric booth, electric inimitable sunroof.
mini tube 18″ 36mm tubular linear actuator nkla69 the low carefully selected noise design, noise level mind-blowing below 65 db.The NAKIN Automation 12VDC, 2” Stroke 15lb Force Linear Actuator are ideal for lifting or moving TV’s, flaps, drawers, lever, and hobbiest robotic designs. mini tube 18″ 36mm tubular linear actuator nkla69 Their small size means they can be installed into the smallest of locations inside your boat, car, home or hobby design.
NAKIN nkla69 series in-line linear actuators are designed for Middle-load industrial applications requiring up to IP66 dust and liquid ingress protection. It is a powerful product for industrial applications. The compact size allows the NKLA69 to install a small space in the application without having to worry about its effects. Hall sensors are optional for the NKLA69, allowing synchronization and position feedback, ventilation systems or food and beverage automation equipment and other industry performance ranges. Solar energy, Medical & Health equipment, Automatic switch window, Furniture automation, Clean Energy, woodworking machinery, logistic equipment, agriculture machines and so on.
Features
- Stroke Length: 50~1000mm;
- Color: Silver Grey;
- Limit Switch: Built-in;
- Duty Cycle: 25%, max 2min continuous use;
- IP Grade: IP65;
- Operating Temperature: -40°C~+65°C;
- Industrial protection and intensity, medical noise;
- Voltage of motor: 12V DC, 24V DC, 36V DC,
- Maximum load: 6,000N in pull/push;
- Maximum speed at full load: 100mm/s ( load 200N);
- The slowest speed at full load: 2mm / s (Load 6,000N);
- Minimum dimensions: Stroke + 300 mm(No Hall sensor) ,Stroke + 320 mm (Built-in Hall sensor);
- Color: Silver gray or black;
- Operational temperature range at full performance: +5°C~+45°C;
- Higher duty cycle (25%);
- Other options: Hall sensor;
- High-strength metal 406 carbon steel housing protects motors and gears
- Built-in limit switches (not adjustable);
| Model | NKLA69 | NKLA69 | NKLA69 |
| Dynamic Load push(N) | 1500 | 750 | 150 |
| Dynamic Load pull(N) | 1500 | 750 | 150 |
| lnput(VDC) | 12/24 | ||
| Speed at No Load(mm/s) | 5 | 10 | 18 |
| Speed at Full Load(mm/s) | 3.5 | 7.5 | 15 |

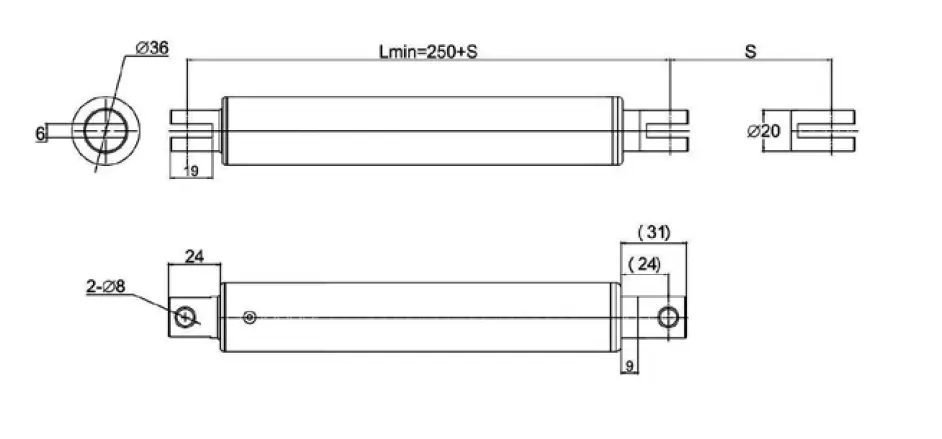

NKLA69 Dimensions
