load 6000n ip66 electric linear actuator
mini tube 18″ 36mm tubular linear actuator
Introduction

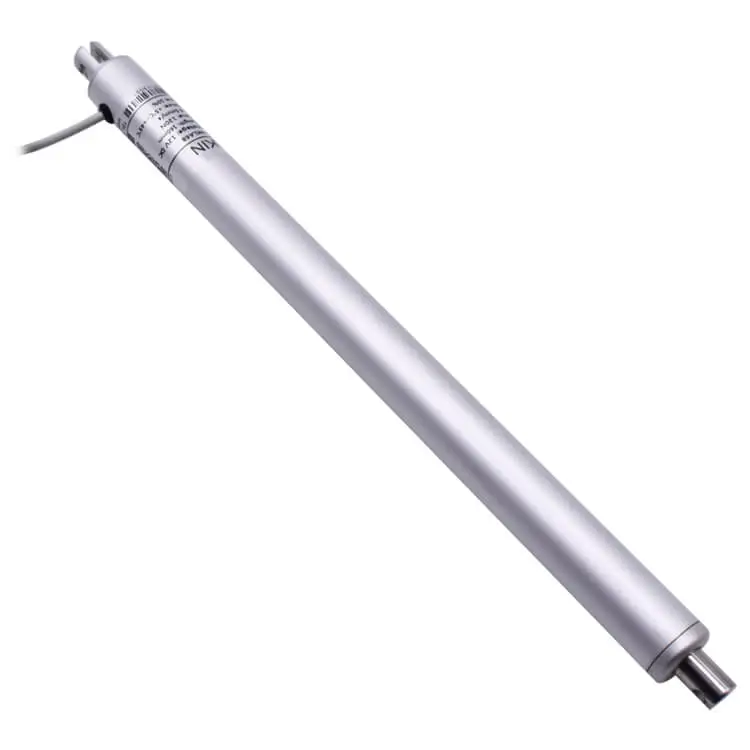

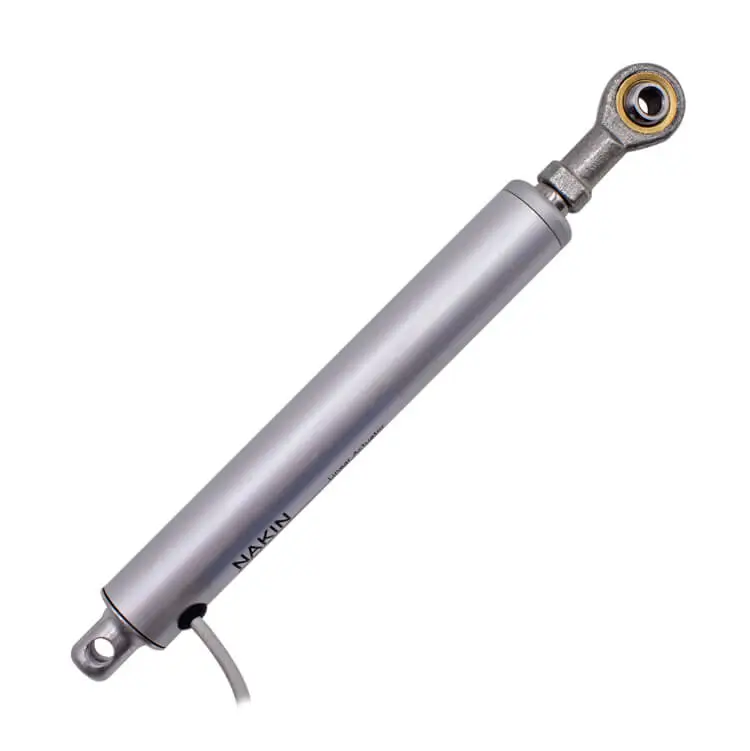

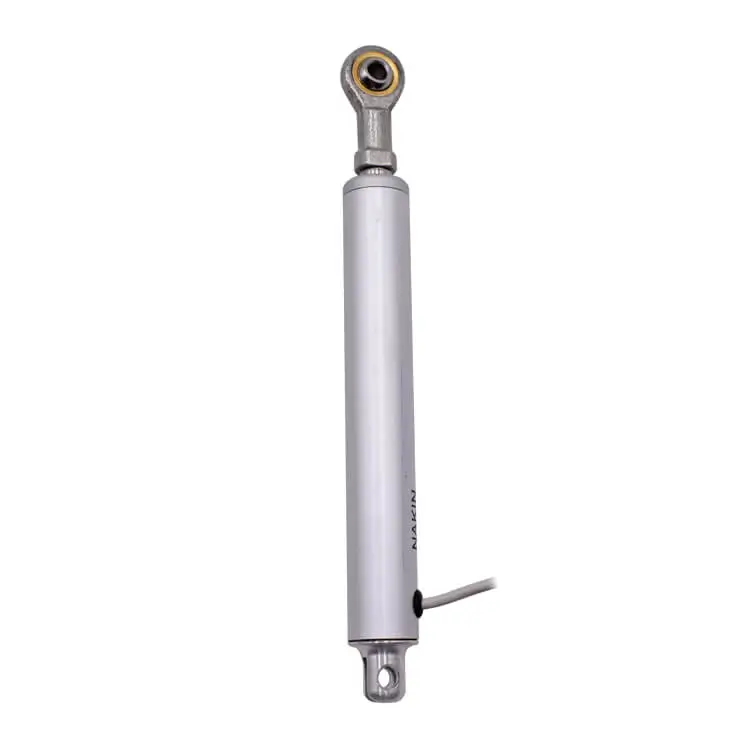

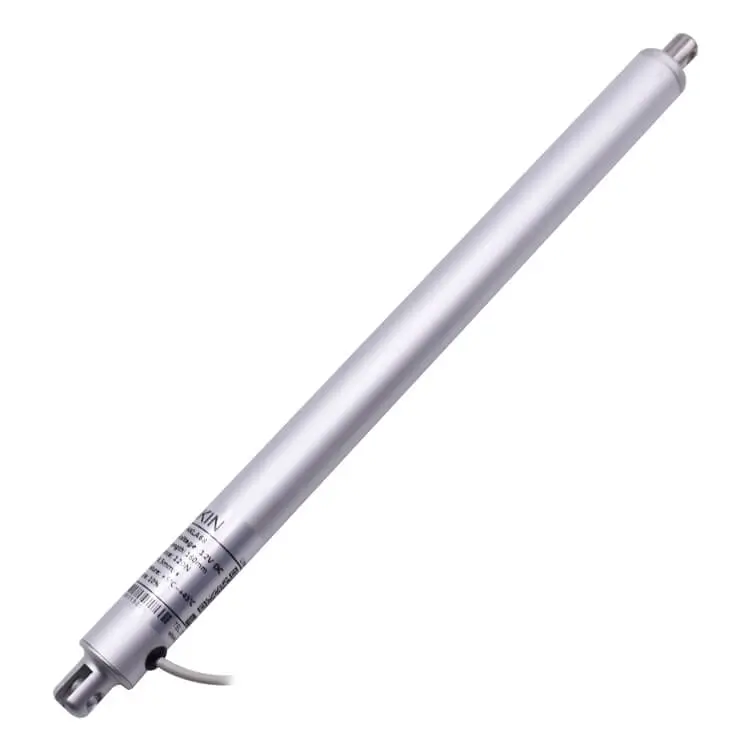

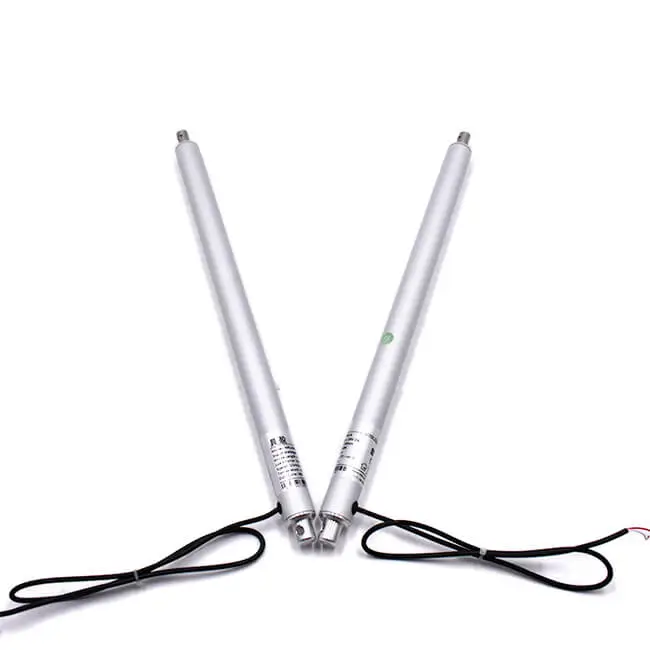

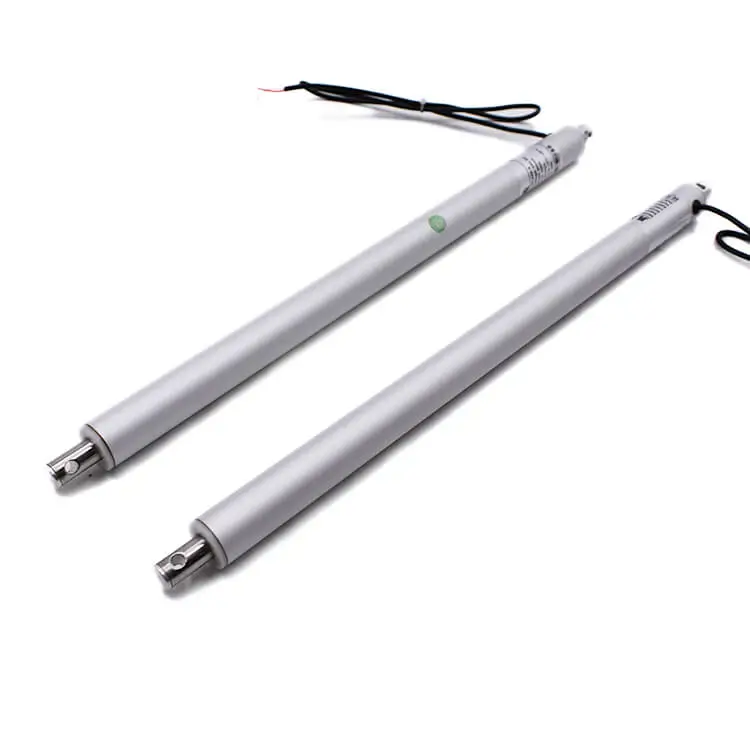

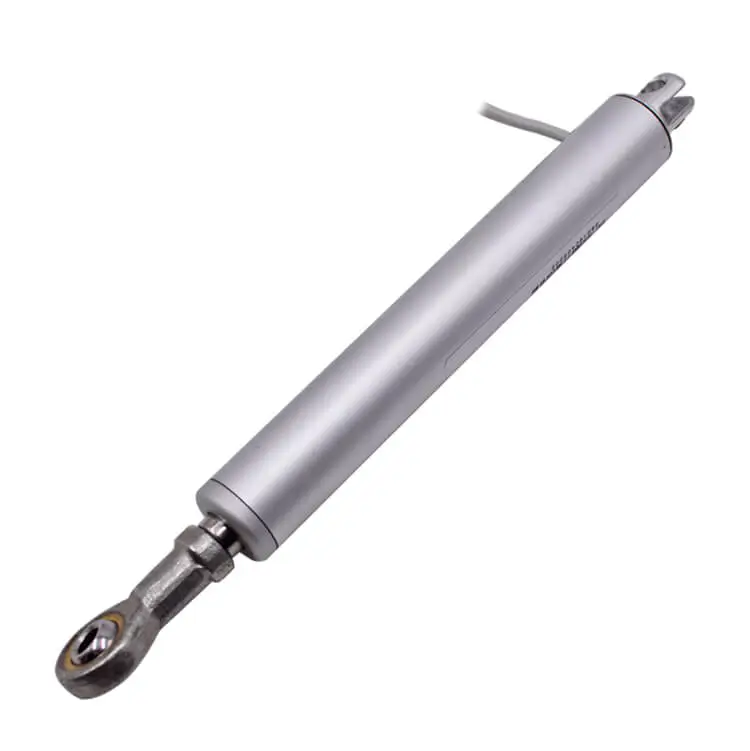

mini 120n 44lbs small linear actuator nkla68 Item weight is only 0.4 pounds. NAKIN nkla68 Linear Actuator was developed to have a slim in-line motor design. Includes built-in hall effect sensor, which allows for synchronization, position and speed control. The Hall effect feedback is vital to applications where multiple actuators must travel in sync. mini 120n 44lbs small linear actuator nkla68 Used for applications that require small installation space and light load. mini 120n 44lbs small linear actuator nkla68 it can be found in automotive, manufacturing and home automation as well as hobby design.Linear Motor range provides improved performance at a lower cost when compared to conventional flat linear motors and rotary motors.
Our NAKIN tubular series inline linear electric actuators (stainless steel version) provide a variety of solutions for automated adjustment applications on yachts, boats and other sea vessels. LA actuators make it possible to open doors, hatches or windows by using a simple remote control. With the protection rating enclosed to IP67M, made from 316 Stainless Steel and with other detailed protective features, our actuators make it much simpler to achieve ship-related equipment automation.
Features
- Stroke Length: 50~1000mm;
- Color: Black/Grey;
- Limit Switch: built-in;
- Overload Protection : Yes;
- IP Grade:IP66;
- Standard: CE;
- Min Installation Size: L=S+125;
- Stainless steel inner tube;
- Voltage 12 VDC 12 VDC;
- Dynamic Force 180 lbs;
- Static Force 360 lbs;
- Speed – No Load 1.38″/sec;
- Speed – Full Load 1.18″/sec;
- Current – No Load 0.6 A;
- Current – Full Load 2.5 A;
| Model | NKLA68 | NKLA68 |
| Dynamic Load push(N) | 30 | 120 |
| Dynamic Load pull(N) | 30 | 120 |
| lnput(VDC) | 12/24 | |
| Current(A) | 0.25~0.4 | 0.25~0.4 |
| Speed at Full Load(mm/s) | 14 | 7.1 |

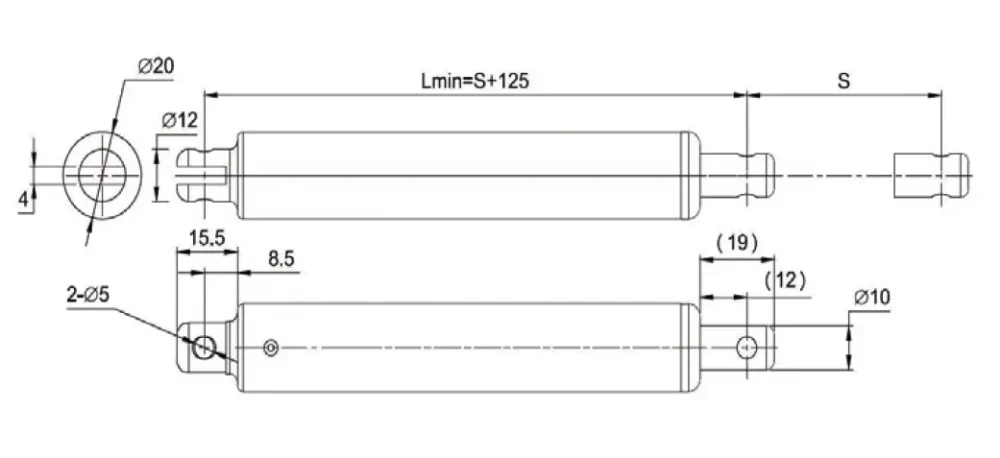

NKLA68 Dimensions
