Introduction

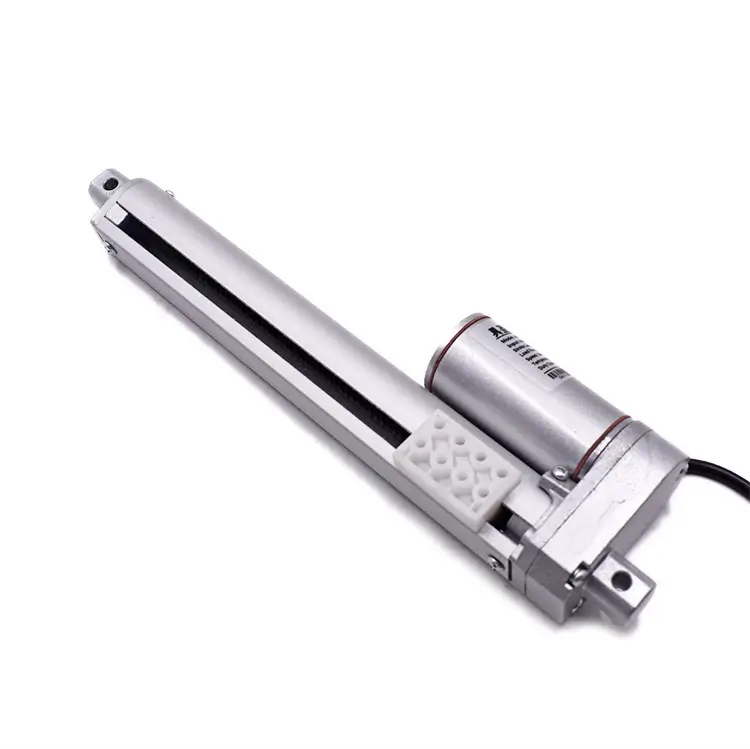

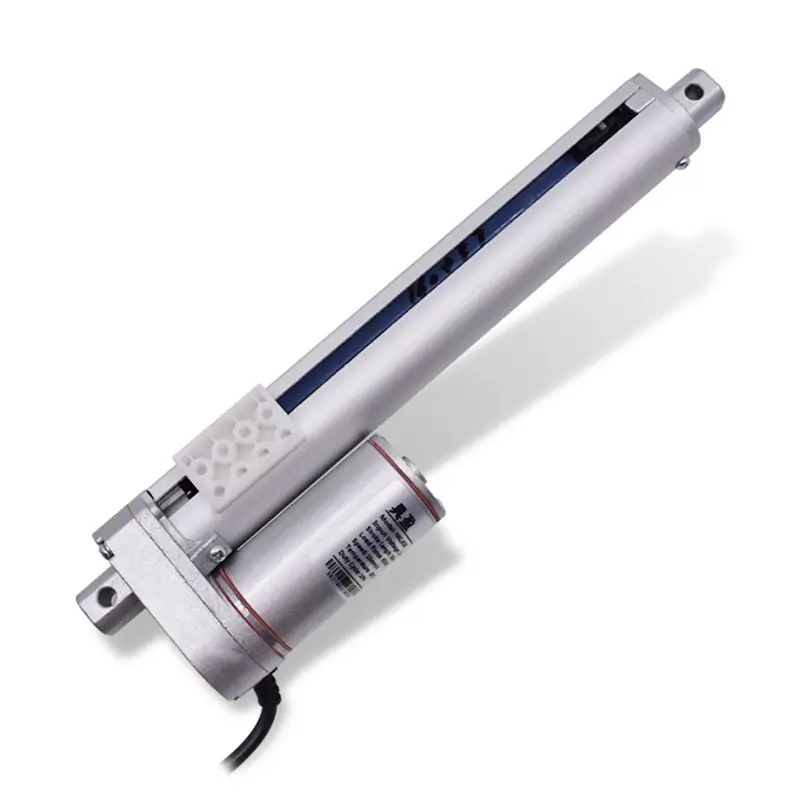

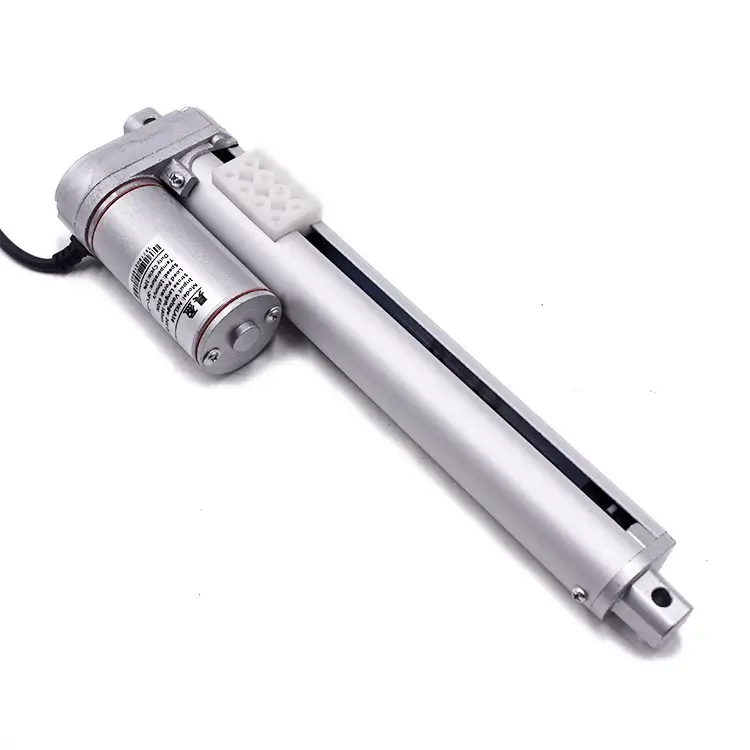

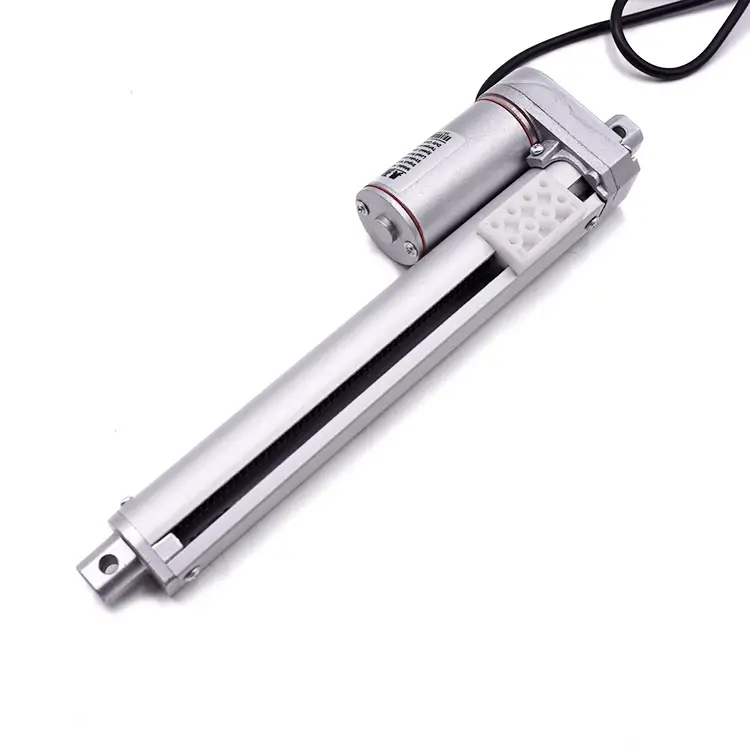

NKLA38 slide track linear actuator It is composed of alluminum alloy shell, POM sliding block and Internal limit switch which makes it stops after ending the stroke. This model shorten the installation length. The sliding block moves stably without any vibration.
It is designed with a slim design that makes it easy to install and use in even the tightest spaces. This makes it an excellent choice for applications where space is limited, such as in medical devices or manufacturing equipment.
700n Micro slide track linear actuator is an excellent choice for anyone who needs a high-quality, durable, and precise linear actuator. Its compact size and broad range of applications make it an excellent choice for a wide range of industries and applications.
Features
- Max load force:700N
- Duty cycle: 20%(High-speed condition: 10%)
- working temperature: -20°C~+65°C
- Aluminium alloy shell and POM sliding block
- IP grade: IP10
- Input voltage：12V，24V ,36,48VDC
- Internal limit switch
- Powder metallurgy gear
- No vibration
| Product name | NKLA38 slide track linear actuator | |||
| Load force(N) | 700N | 500N | 300N | 100N |
| Full load speed(mm/s) | 5 | 10 | 20 | 40 |
| Stroke length (mm) | 50mm~600mm | |||
| Retracted length(mm) (mounting length ) |
Stroke +117mm | |||
| IP grade | IP10 | |||
| Duty cycle | 10% , max 2 min. continuous use | |||
| Limit Switches | Built in | |||
| Color | Silver | |||

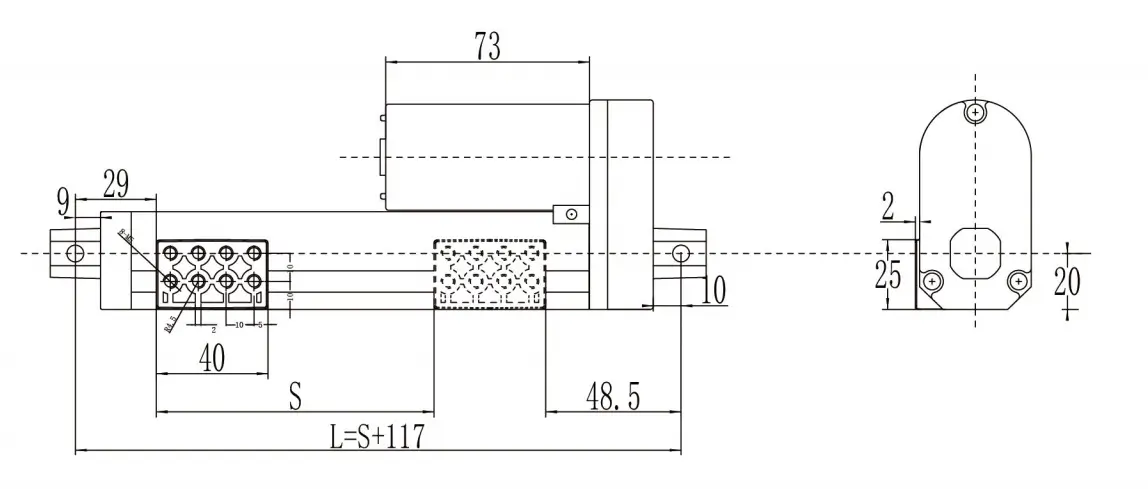

NKLA38 Dimensions
