Introduction

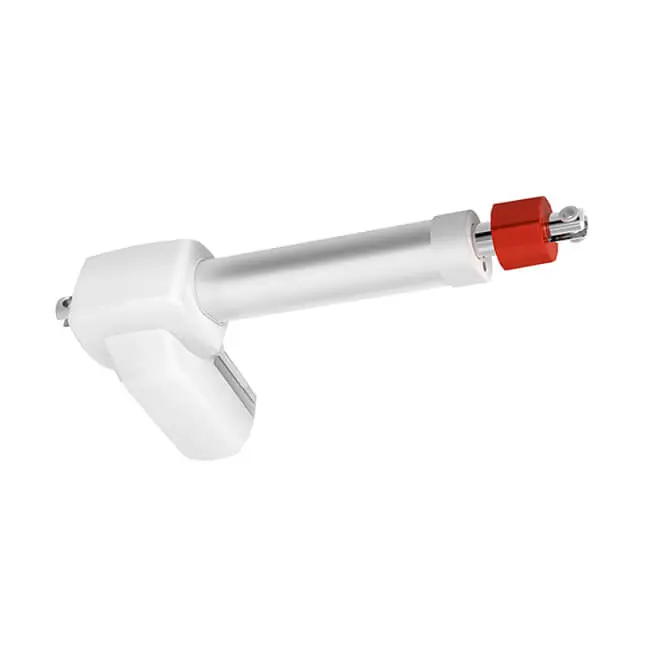

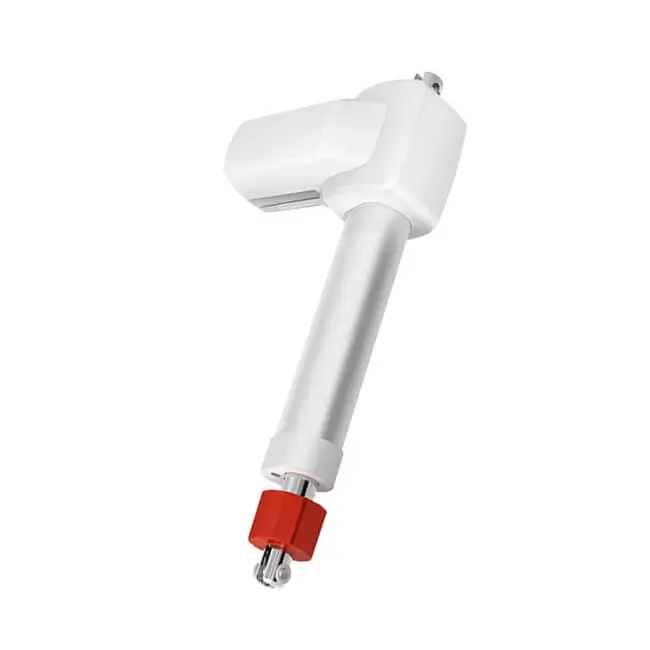

medical 12000n 24VDC linear actuator kla108 push rod has a maximum thrust of 12000N and a maximum pull of6000N, providing a good solution for the patient lift. lt shows its superior performances in the aspect of high load capacity, excellent lP rating, low noise level as well as some safety features, among which are:
- Brake to increase friction so that strengthen the self-locking ability
- Safety nut to avoid unintended rapid lowering due to the damage of the nut;
- Electronic limit switches and mechanical limit
- Manual lowering to ensure nursing carers could lower the actuator when power supplier has been cutor other emergency occurs.
These features make medical 12000n 24VDC linear actuator Nkla108 push rod a good choice to be applied in patient lift.medical 12000n 24VDC linear actuator has a maximum thrust of 12000N and a maximum pull of 6000N, medical 12000n 24VDC linear actuator Nkla108 providing a good solution for the patient lift. shows its superior performances in the aspect of high load capacity, excellent IP rating, low noise level as well as some safety features, among.
Features
- Load thrust up to 12000N
- Maxload pull 6000N
- Color: Grey
- Manual clevis:Red
- Options:Built-in hall sensor/Manual descent in emergency/Only push
- MaxIP rating:IP66
- Compatible with: NKCB62 for patient lifter
- Duty cycle: 10%, continuous work for most 2 minuteswith a pause of 18 minutes
- 24V DC permanent magnet motor
- Stroke Length:100-350mm(+2mm) 10000N100-200mm(+2mm)
- Noise level<50dB(ambient level<35dB)
- Using temperature: 5C-40C
- Atmospheric Pressure: 700-1060hPa
- Safety nut: necessary
- Electrical limit switches or signal switch: built-in
- Mechanical limit switches:upper limit and end limit
- Wire length and plug optional
Model | NKLA108 | NKLA108 | NKLA108 |
Dynamic Load push(N) | 12000 | 12000 | 10000 |
Dynamic Load pull(N) | 12000 | 12000 | 10000 |
lnput(VDC) | 24~29 | ||
Current(A) | 6 | 6 | 7 |
Speed at Full Load(mm/s) | 3.8 | 4.5 | 5 |
