Introduction

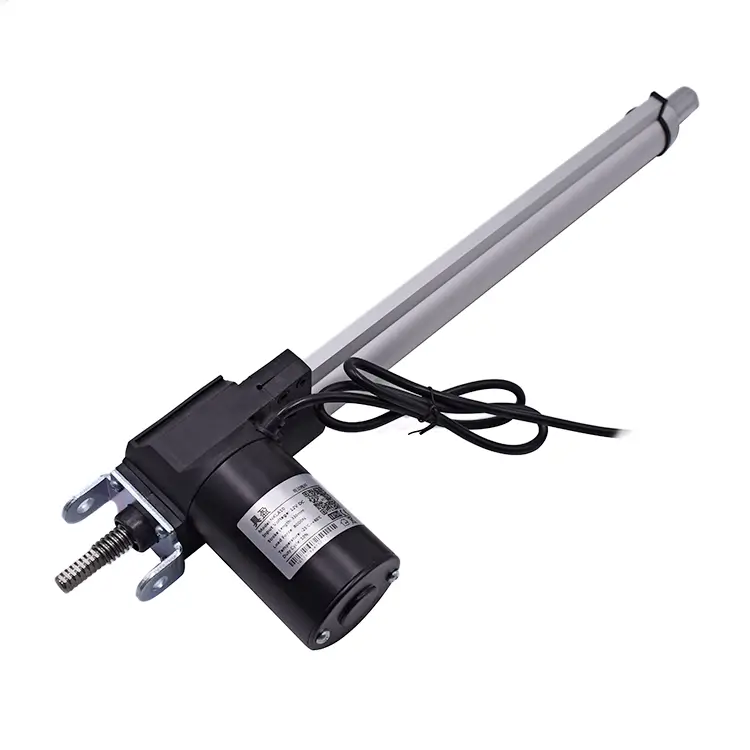

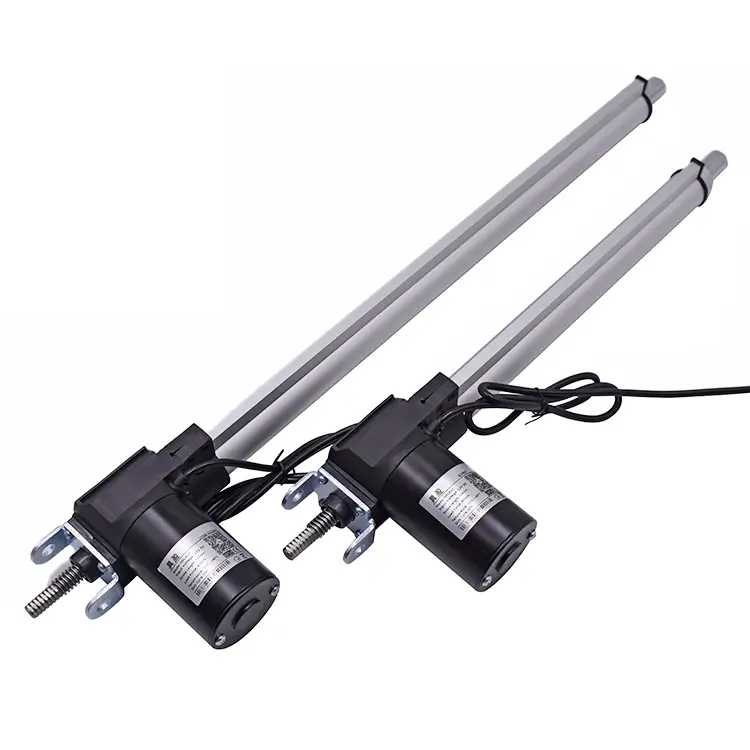

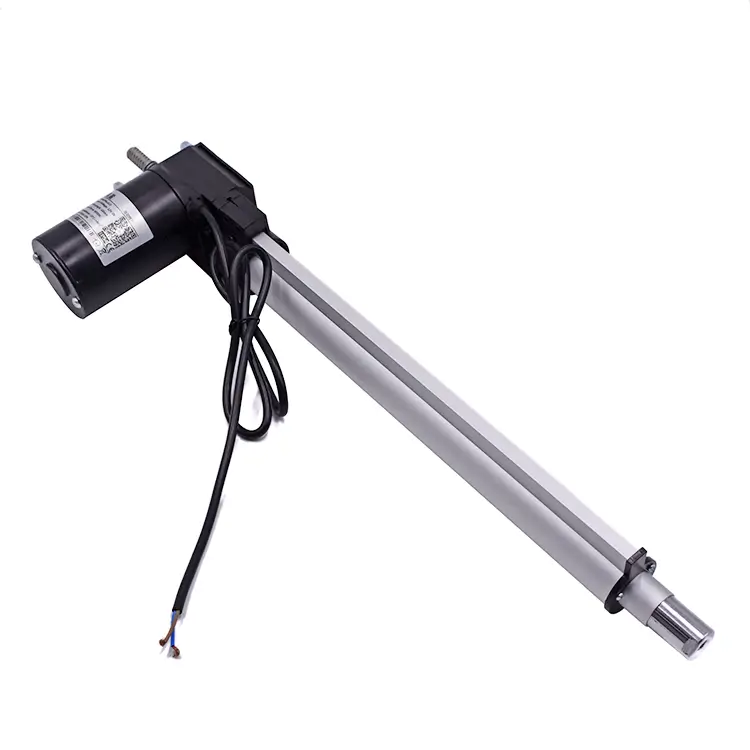

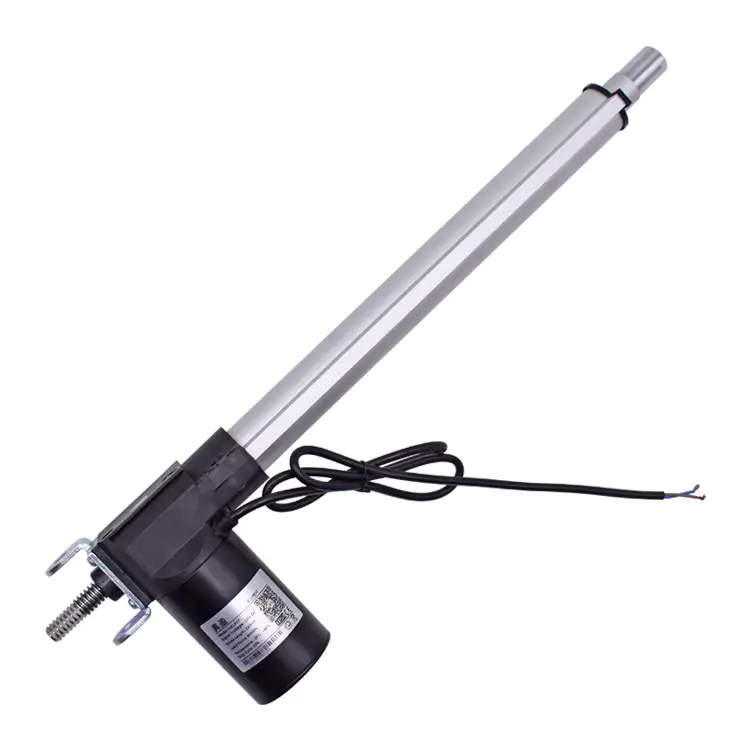

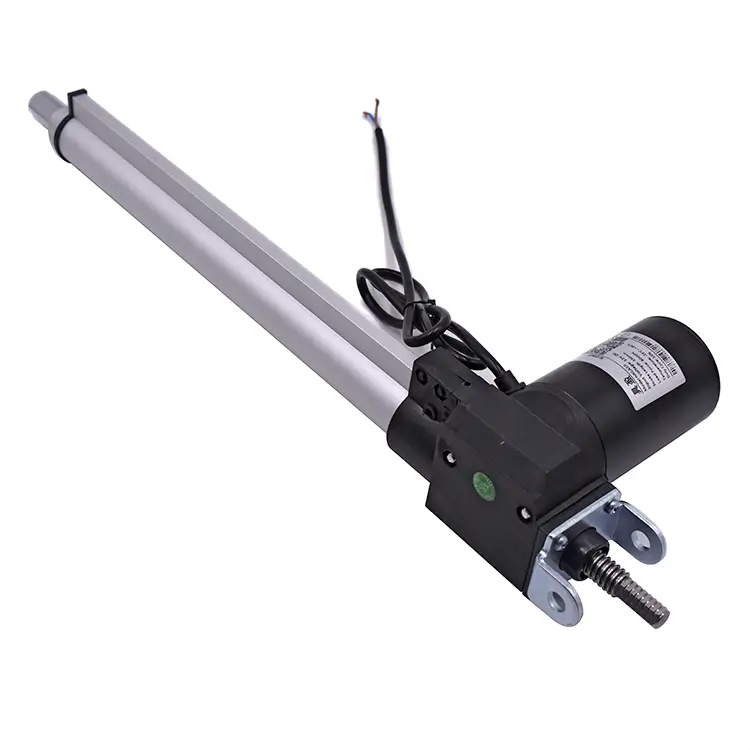

NKLA10 manual operate linear actuator is a powerful and reliable linear actuator for small to medium loads. We designed our linear actuator with pre-lubricated metal gears, pre-installed limit switches.
Manual operate linear actuator has a lot of advantages that make it a reliable and efficient mechanism for various applications. Firstly, manual operate linear actuator is cost-effective compared to other electrically powered actuators. This is because it does not require any form of electrical connection or power source for its operation, making it more affordable to purchase and maintain.
Another advantage of the manual operate linear actuator is its simplicity of design and ease of installation. It is easy to fit into various applications and does not require a professional to install. It can easily fit in various spaces, including tight spaces and corners where other actuators may not be feasible.
The manual operate linear actuator is also highly durable and reliable. It is built with high-quality materials that can withstand harsh environmental conditions, corrosion, and rust. It can be used in different industries such as transportation, agriculture, construction, and many more.
Features
1、24V DC permanent magnet motor
2、Thrust up to 6000 N in push and up to 4000 N in pull
3、Color: gray or black
4、Standard protection class: IP43
5、Aluminium-Alloy outer tube and inner tube, beautiful and corrosion resistant
6、Low noise; The average noise level is lower than 48dB (ambient noise is less than 40dB).
7、Built-in electronic limit switches
8、High-strength front and back fixtures
9、The actuator can go up or down by crank after the power if off
| Dynamic Load Push(N) | 6000 | 4000 |
| Dynamic Load Pull(N) | 4000 | 4000 |
| Static Load Push*(N) | 5000 | 3500 |
| Static Load Pull*(N) | 4000 | 3500 |
| Input（VDC） | 24/12 | |
| Speed at Full Load(mm/s) | 3 | 4 |
| Stroke Length（mm） | 50~400 | 50~250 |
| Mounting position | H type、V type | |
| Color | Black or Grey | |
| Limit Switch | Build-in | |
| Overload Protection | Yes | |
| Duty Cycle | 10%. max 2min. continuous use | |
| IP Grade | IP43 | |
| Operating Temperature | +5℃ ~ +40℃ | |

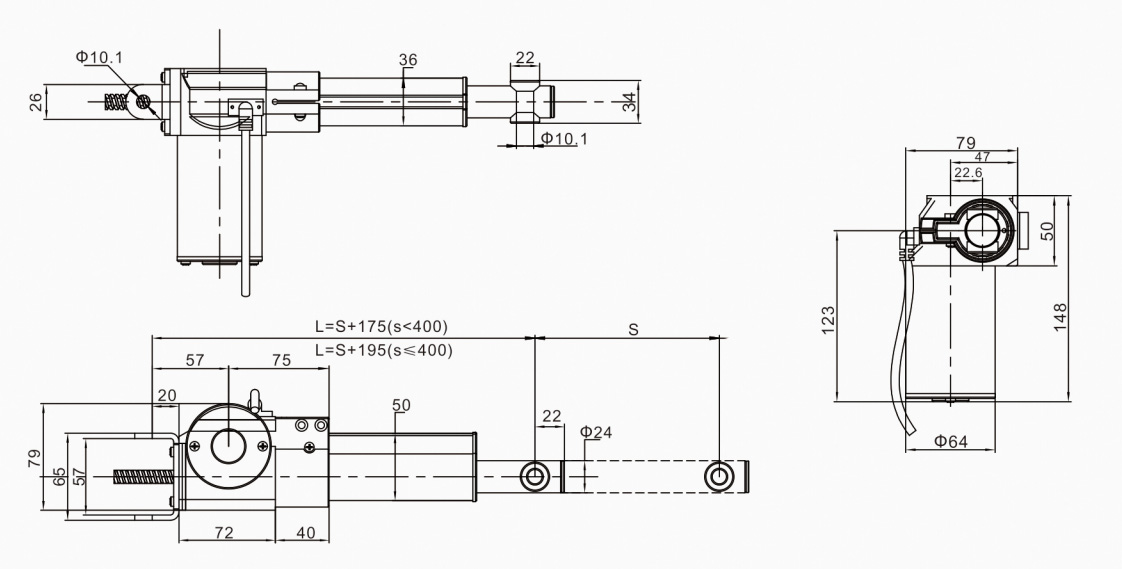

NKLA10 Dimensions
