medical 12000N 24V DC linear actuator
high load medium pressure linear actuator
Introduction

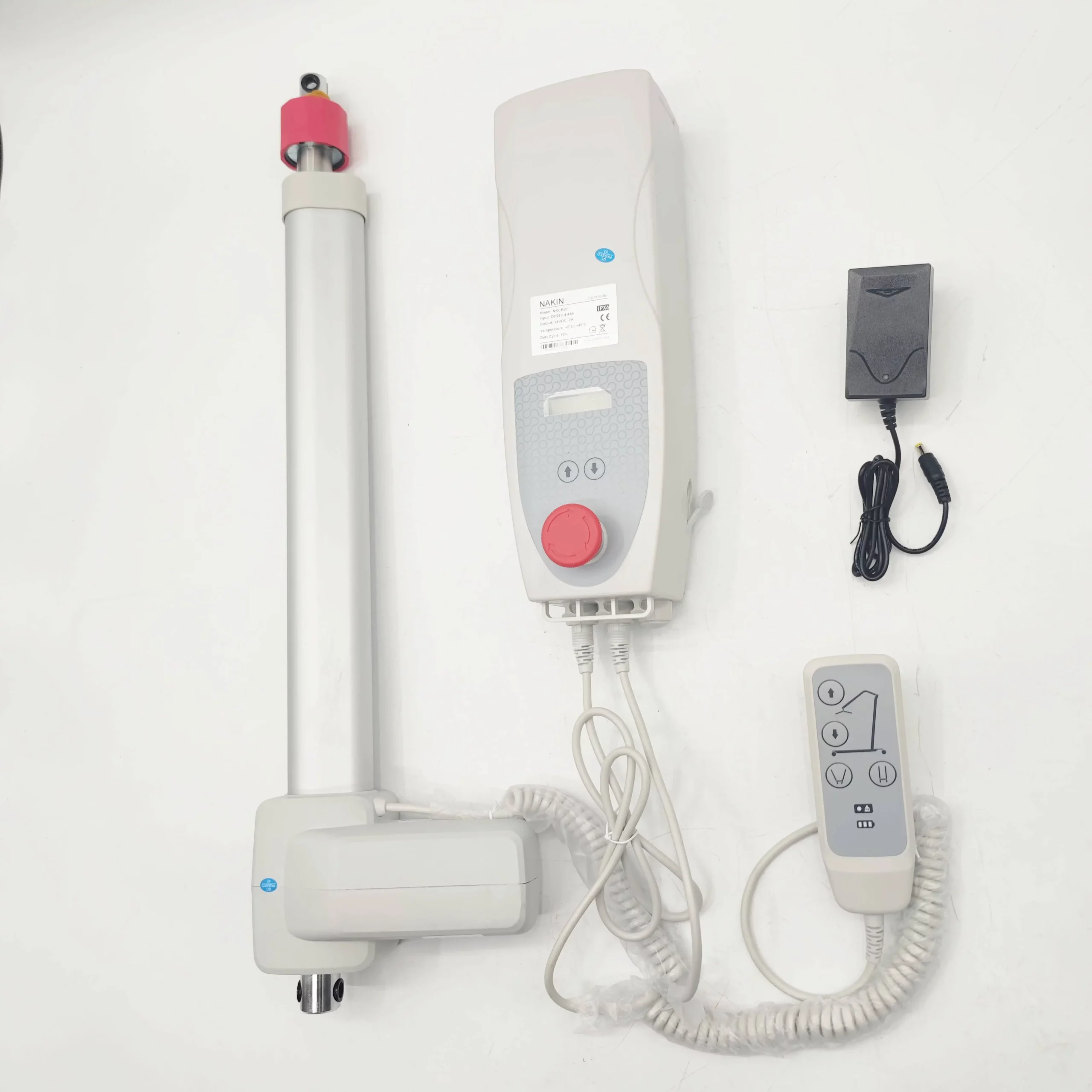

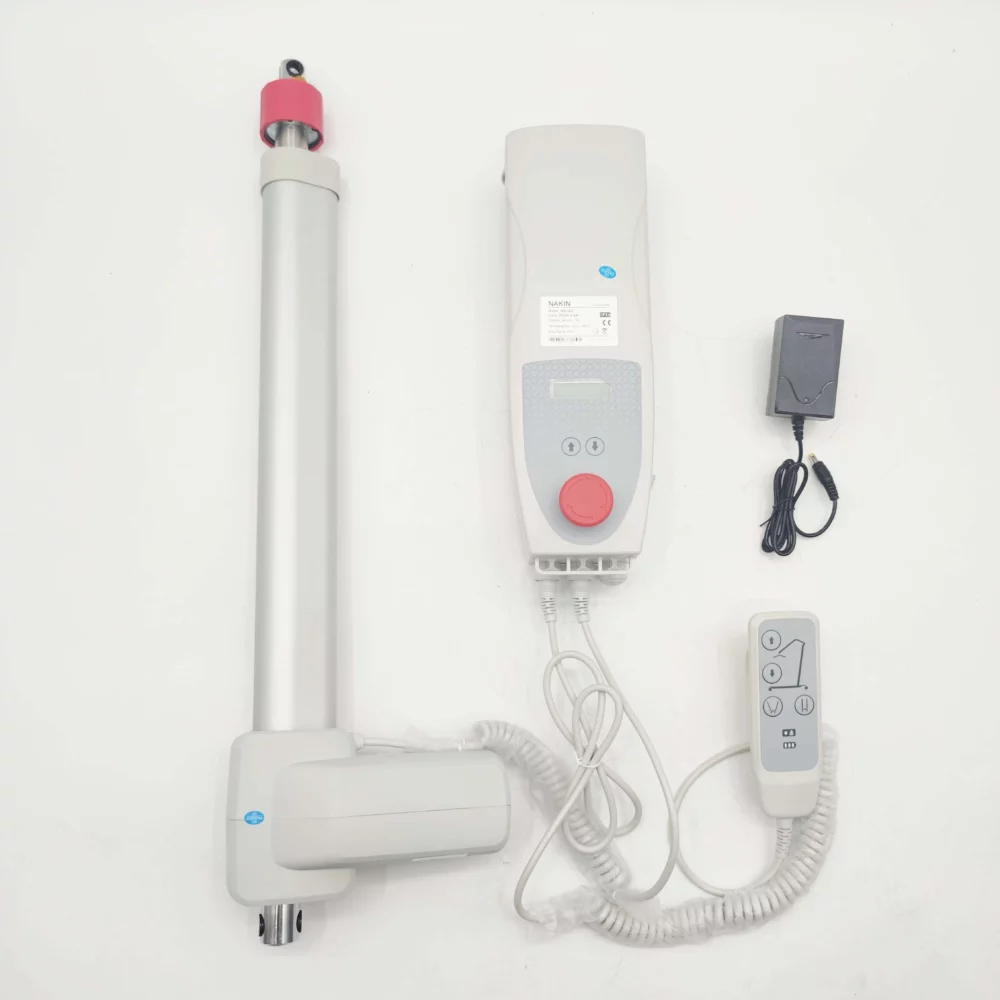

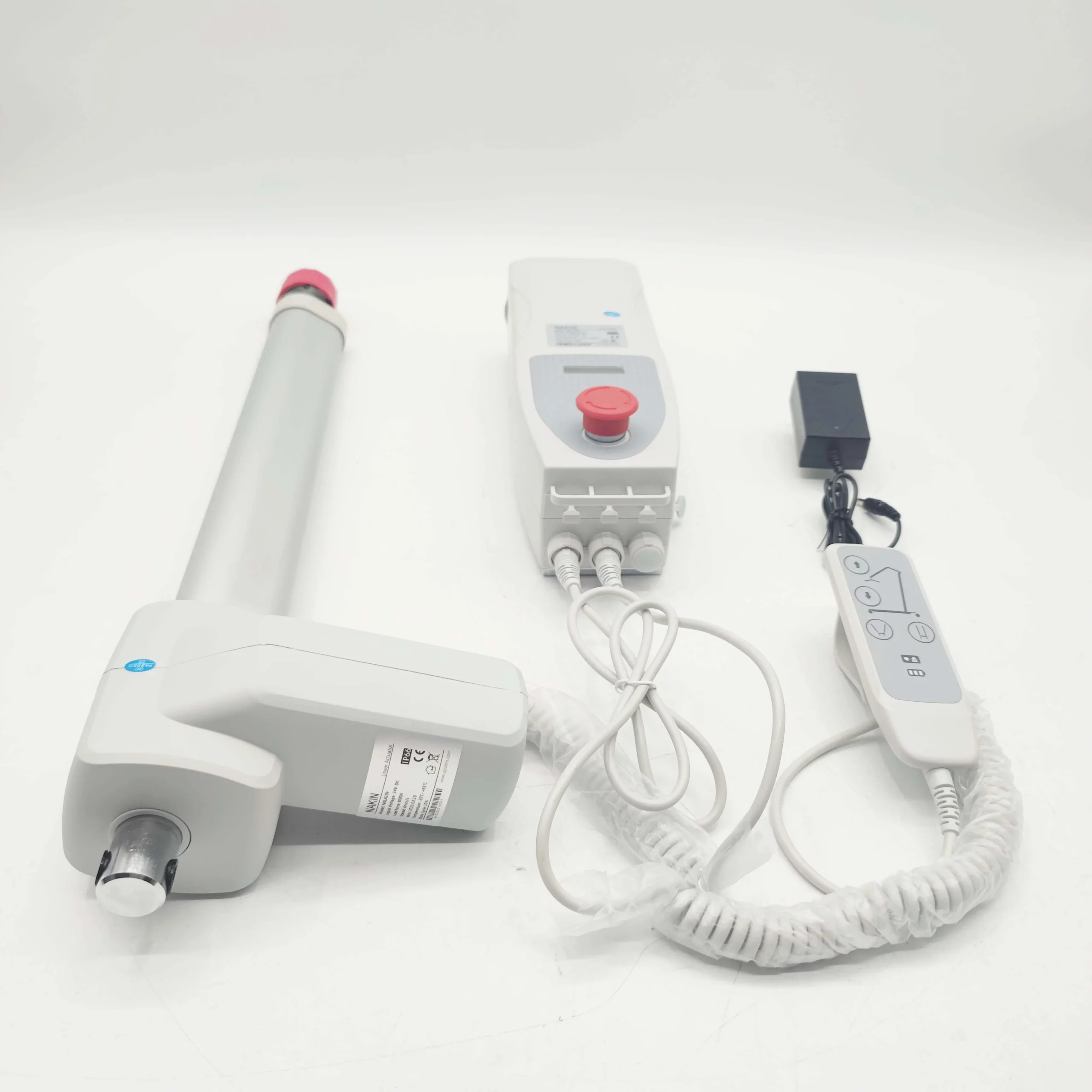

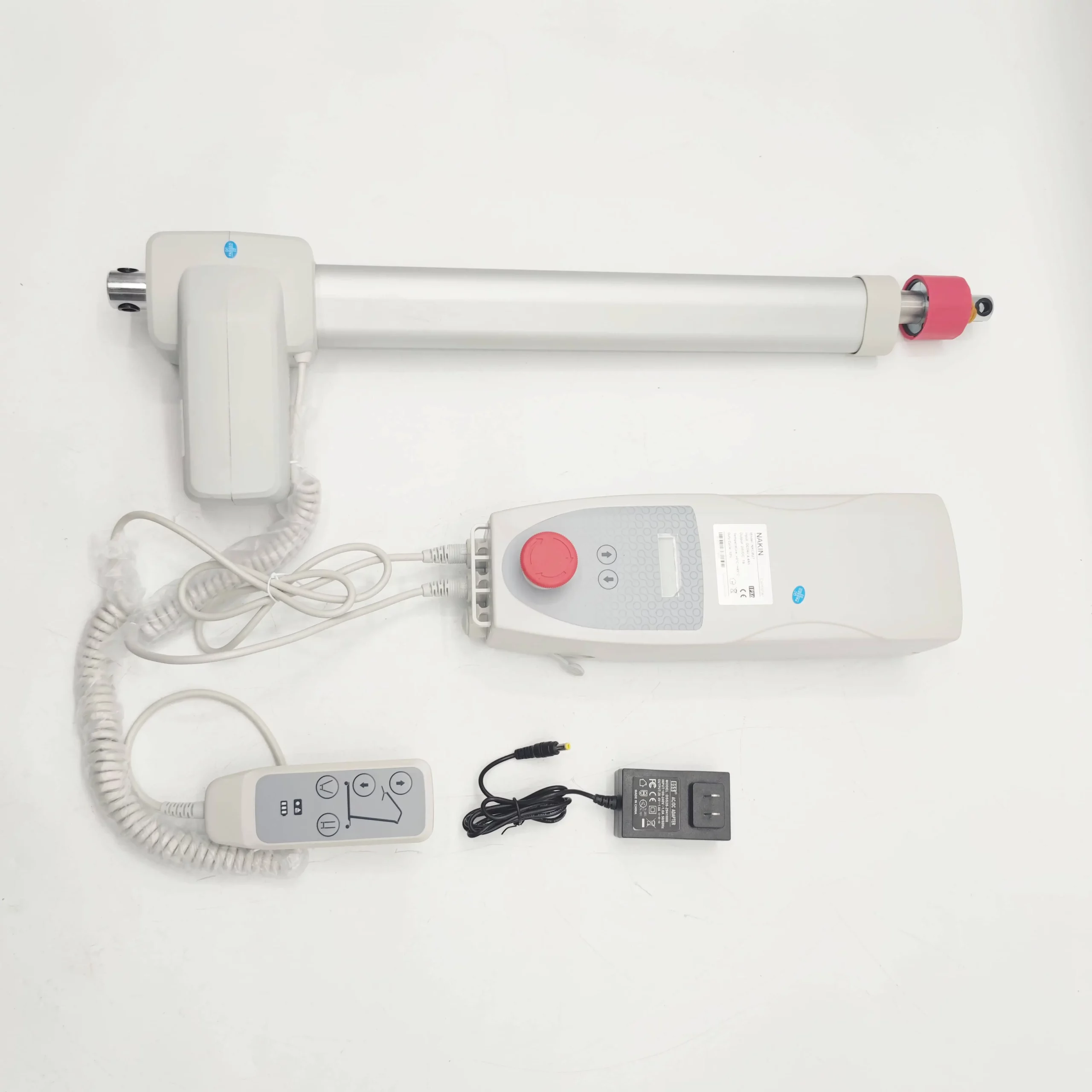

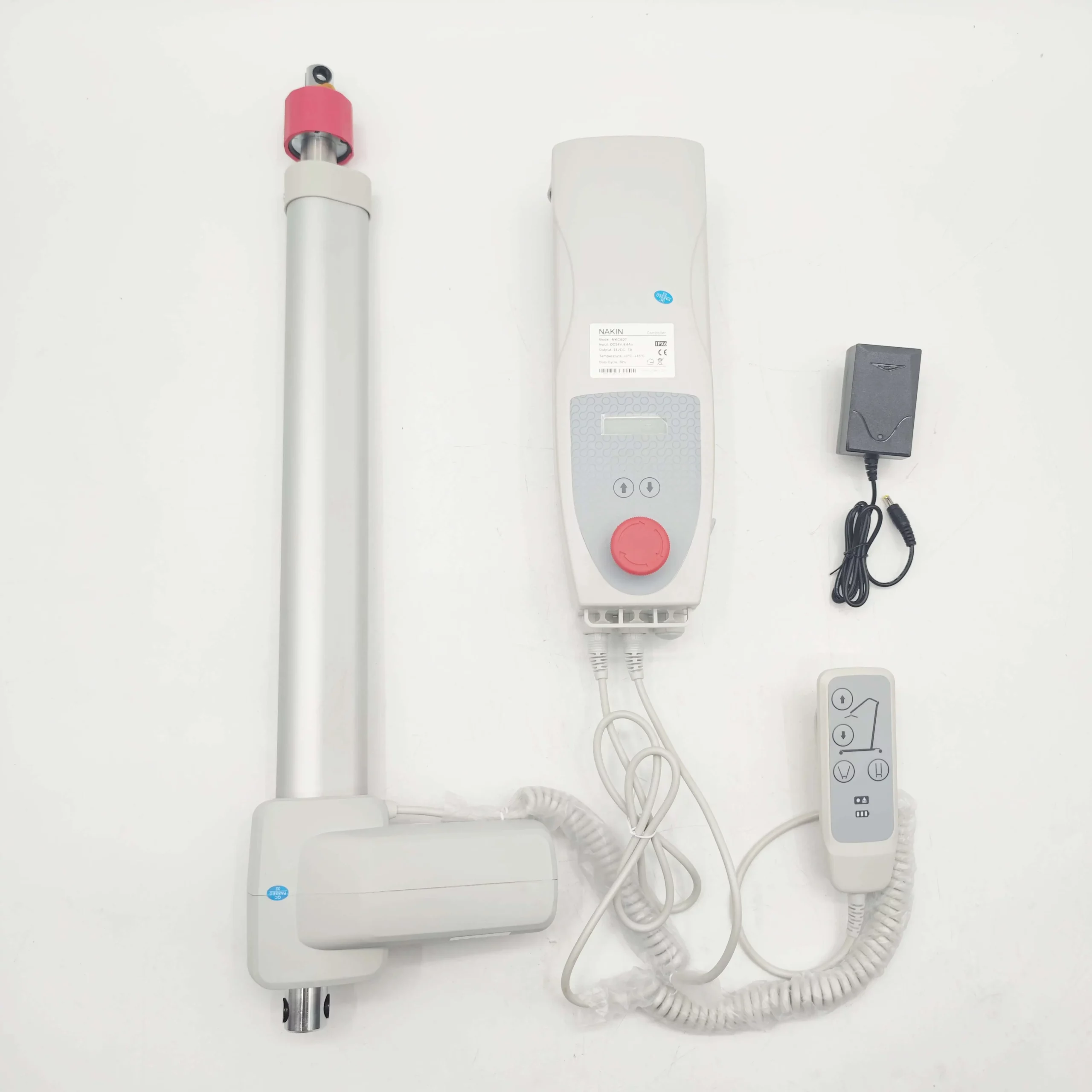

load 8000n linear actuator for hospital Patient lift Nkla109 push rod (with manual lowering) is a strong and fast motion actuator. Functions of manual lowering and anti-pinch area vailable. Large thrust and small installing dimensions make it has wide applications.
NAKIN load 8000n linear actuator for hospital Patient lift Nkla109 push rod provides a complete system solution for patient lift applications to improve the comfort of patients. This system also offers caregivers a safe and efficient working environment. NAKIN’ s patient lift system is the ideal solution to meet specific patient needs.
Our system of powerful, quiet actuators, along with a wide range of hand controls and control boxes, assure patients a safe and comfortable transfer. NAKIN load 8000n linear actuator for hospital Patient lift Nkla109 push rod provides an extensive range of actuators for different needs and requests. All have up to IP66, the highest level of protection against water and dust. Actuators with the manual release function for lifting.
Features
- Thrust up to 8000N
- Color: light gray or black
- Manual lowering: red
- IP Grade:IP66
- Input voltage: 24VDC/29VDC
- Strokelength: 0-400mm(+2mm)
- Retracted length: L=S+260 (S <300)
- L=S+290(300<S<400)
- Noise levels50dB (ambient noise<40dB)
- Safety nut: necessary
- Built-in electrical limit switches
| Model | NKLA109 | NKLA109 | NKLA109 |
| Dynamic Load push(N) | 8000 | 8000 | 8000 |
| Dynamic Load pull(N) | 8000 | 8000 | 8000 |
| lnput(VDC) | 24~29 | ||
| Current(A) | 8 | 8 | 8 |
| Speed at Full Load(mm/s) | 8.2/6 | 10/7.5 | 8.5/7 |

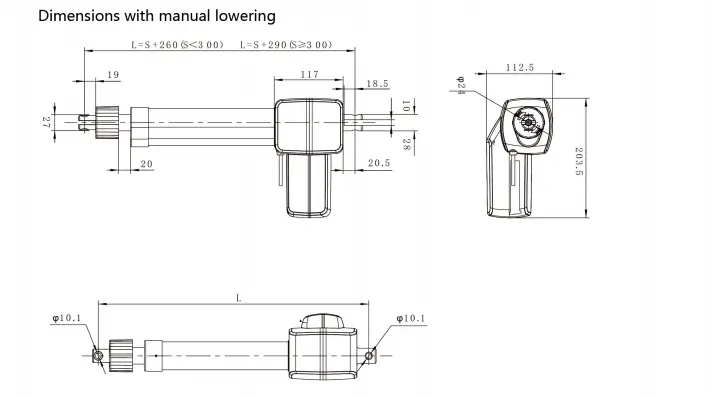

NKLA109 Dimensions
