Introduction
load 6000n ip66 electric linear actuator NKLA67 load 6000n ip66 electric linear actuator (stainless steel version) provide a variety of solutions for automated adjustment applications on yachts, boats and other sea vessels.
load 6000n ip66 electric linear actuator NKLA67 NAKIN actuators make it possible to open doors, hatches or windows by using a simple remote control. load 6000n ip66 electric linear actuator NKLA67 Compact size and elegant design, the Integrated with high-efficiency 12VDC or 24VDC brushed motor and planetary gearbox, With built-in limit switches, Max load capacity: 6000N Standard stroke: 20mm – 1000mm, customised stroke available upon request, IP66 protection class or IP67M / IP69K as an option on certain models Body materials: in aluminium, stainless steel or powder coated 45# steel, Hall sensors for precision control and positioning.
Features
- Stroke Length: 50~400mm
- Color: BLACK
- Limit Switch: Built-in
- Duty Cycle: 25%, max 2min continuous use
- IP Grade: IP66
- Operating Temperature: -20°C~+65°C
- Industrial protection and intensity, medical noise
- Hall sensor
| Model | NKLA67 | NKLA67 | NKLA67 |
| Dynamic Load push(N) | 300 | 1200 | 6000 |
| Dynamic Load pull(N) | 300 | 1200 | 6000 |
| lnput(VDC) | 12/24 | ||
| Speed at Full Load(mm/s) | 55 | 15 | 4 |

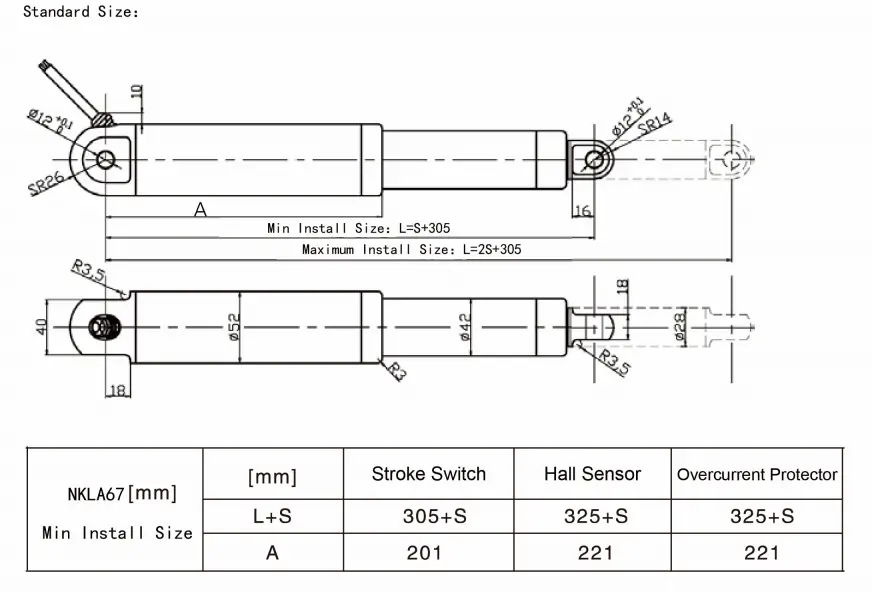

NKLA67 Dimensions
