Introduction
load 6000N dual motor electric linear actuator Nkla107 load 6000N dual motor electric linear actuator is widely used in home furniture, hospital & healthcare fields, such as open doors, lift tables, raise flat screens, adjust recliners for the headset, footrests, relaxation beds.The Linear Actuator Motor is with low noise design, noise level below 50 dB.
load 6000N dual motor electric linear actuator NKLA107 The linear actuator is Commonly used in automotive, medical devices and engineering industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.Linear Motion Actuators With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc. load 6000N dual motor electric linear actuator nkla107 push rod High quality metal material, high performance motor, built-in stroke switch. Plastic gear: smooth transmission, wear – resistant, high transmission torque.Pure copper core: low heating, long service life and more stable performance.
Features
- Stroke Length: 30/36.5 or 70/41.5mm
- Color: Black or Grey
- Limit Switch: Build-in
- Overload Protection: Yes
- Duty Cycle: 10%.max 2min. continuous use
- IP Grade: IP20
- Operating Temperature: +5C~+40C*Standard: CE
- Apply for smart homecare bed
| Model | NKLA107 |
| Dynamic Load push(N) | 6000 |
| Dynamic Load pull(N) | 6000 |
| lnput(VDC) | 24 |
| Speed at Full Load(mm/s) | 2.2 |

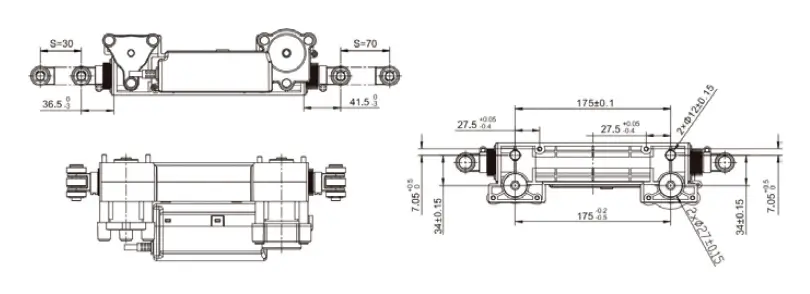

NKLA107 Dimensions
