stroke adjustable linear actuator
1500n small linear actuator with potentiometer position feedback
Introduction

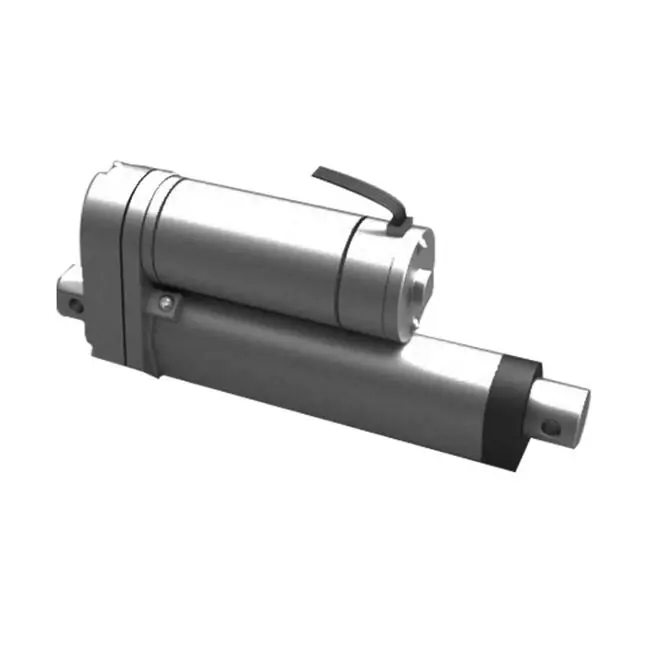

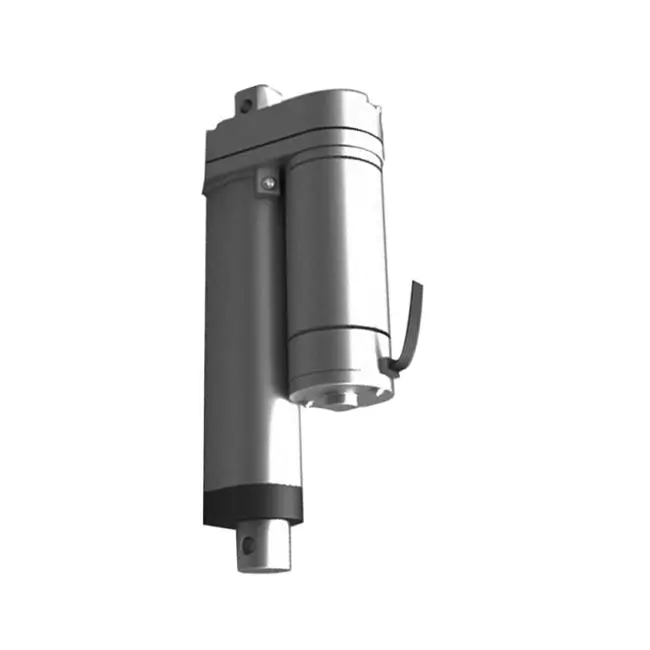

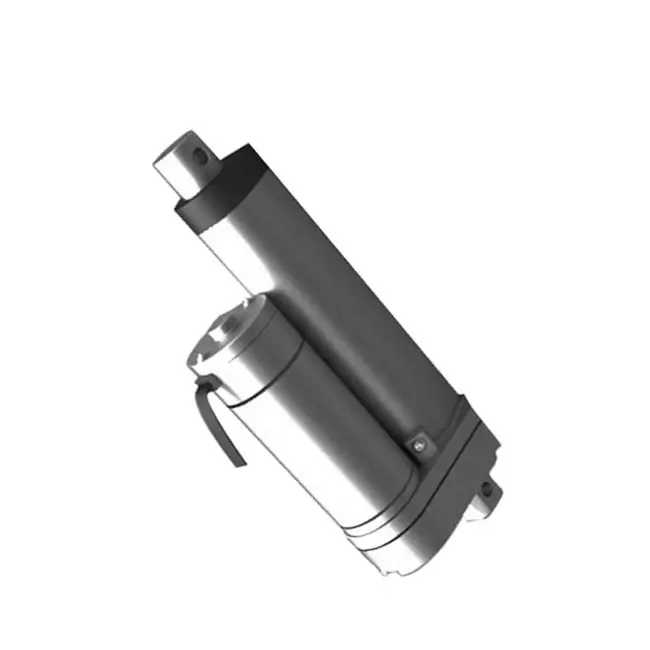

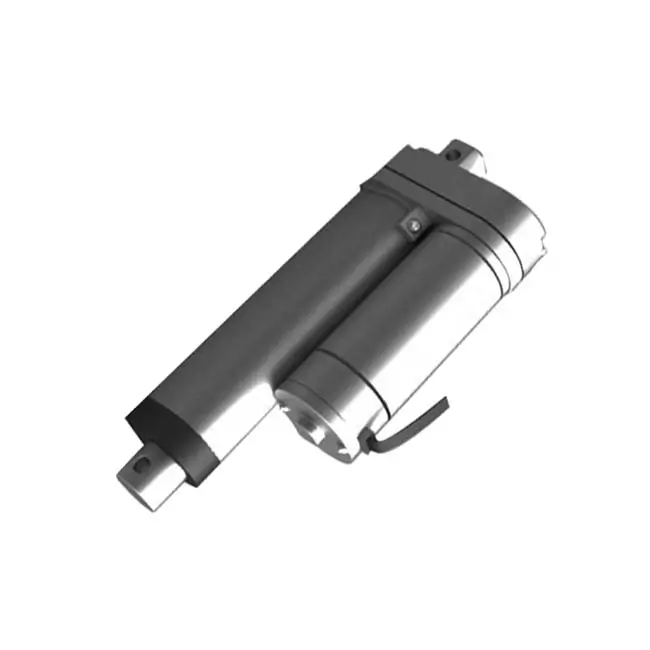

This type of lightweight and compact electric linear actuator, made of aluminium, takes DC motor element and gear reduction element and internal micro switch to make the stroke stop automaticly after it ends. This model add encoder to original model of NKLA37. Internal chip of encoder processed electric signal could recognize the streching direction depending on its internal multiple photoelectric sensors and realize the visualizaiton and controlable of stroke.
The encoder feedback system allows for precise and accurate control of the actuator’s position, making it ideal for precise positioning tasks.
Micro linear actuators are typically small and lightweight, making them easy to integrate into compact systems and machinery.
Micro linear actuators with encoder position feedback are a versatile and reliable choice for a variety of applications, including robotics, medical devices, industrial automation, and more. Their precision control, compact size, low power consumption, and durability make them an ideal solution for many different industries.
Features
- Max load force:900N
- Duty cycle: 20%(High-speed condition: 10%)
- Max static load force: 2300N
- Ambient temperature: -20°C~+65°C
- Aluminium outer tube and pushrod
- IP Grade: IP54 or IP65
- Input voltage:12,24,36,48VDC
- external encoder: feedback process of stroke
- Powder metal gear
| Product name | NKLA37 linear actuator with encoder | ||||||
| Load force(N) | 900N | 800N | 600N | 350N | 200N | 100N | 50N |
| NO load speed(mm/s) | 3 | 10 | 16 | 25 | 30 | 50 | 80 |
| Stroke length (mm) | 50mm~600mm (option>600) | ||||||
| Retracted length(mm) (mounting length ) |
Stroke +105mm | ||||||
| IP grade | IP54/IP65 | ||||||
| Duty cycle | 20% , max 4 min. continuous use | ||||||
| Limit Switches | Built in | ||||||
| Color | Black or silver | ||||||

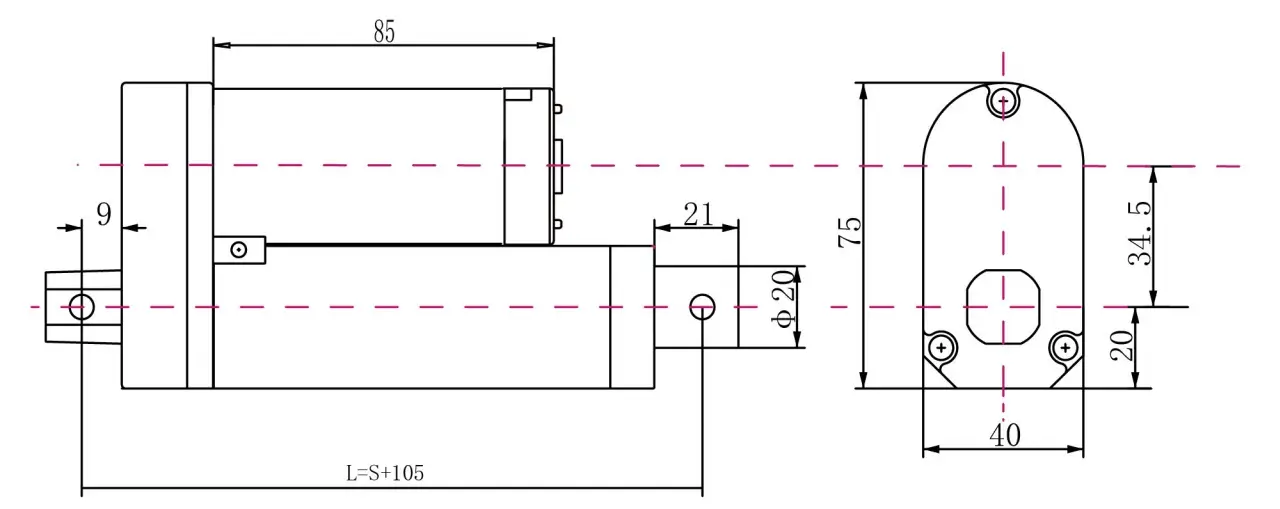

NKLA37 Dimensions
