push 3000N pull 2000N linear actuator
12000N heavy duty IP66 waterproof electric linear actuator
Introduction
IP54 6000N electric linear actuator Nkla112 push rod actuator 6 Inch Stroke with Mounting Bracket, DC12V 900N(200lbs) IP65 Waterproof 12mm/s Quiet Low Noise Motor for medical bed DIY Chicken Coop Electric Recliner Lift Massage Bed Sofa (6″).
NAKIN’s P54 6000N electric linear actuator Nkla112 push rod is one of the smart furniture actuator options with compact dimension. This linear actuator is designed with a custom gear box, molded with a specially formulated plastic material which allows the P54 6000N electric linear actuator Nkla112 push rod to support load ratings up to 6000N. An EMC certification has been attained for this series, which is also available with optional IP54 or IP66 protection.
Features
- Stroke Length: 50~500mm
- Max Load Push: 6000N
- Max Load Pull: 4000N
- Color: Black or Grey
- Limit Switch: Build-in
- Overload Protection: Yes
- Duty Cycle: 10%. max 2min. continuous use
- IP Grade: IP54
- Operating Temperature: 0C~+50C
- Optional Features: Only push option
- Mounting position: H type V type
| Model | NKLA112 | NKLA112 |
| Dynamic Load push(N) | 6000 | 4000 |
| Dynamic Load pull(N) | 6000 | 4000 |
| lnput(VDC) | 24 | |
| Speed at Full Load(mm/s) | 4 | 6 |

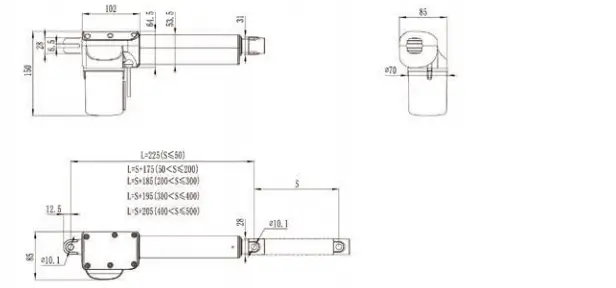

NKLA112 Dimensions
