Tubular Linear Motor 2300N Low Noise
High speed 10000n 24V electric linear actuator
Introduction
inline 12V 500N Linear Electric Actuator NKLA62 compact size for easy installation, optional 12V/24V/36V/48V DC input voltage, 6000N in push, customized stroke.
inline linear actuator was designed for low-load industrial applications where up to IP66 dust and liquid ingress protection is necessary. inline 12V 500N Linear Electric Actuator NKLA62 It is best suited for applications with visual or compact installation dimension requirements. Hall sensors are optional for the NKLA62 which allows for synchronization and position feedback.
inline 12V 500N Linear Electric Actuator NKLA62 High performance tubular actuator with self – lock function, limit protection, over-current protection, widely used in medical, elevator manufacturing machinery, etc. inline 12V 500N Linear Electric Actuator NKLA62 Small size for small space applications, such as construction machinery, ventilation systems, solar tracking systems and other automation equipment.Perfect for solar panels. With the right kind of tools, most importantly solar panels and 12v solar tracker actuator, you can create your solar tracker station and ensure your solar panels capture the maximum amount of sunlight.
Features
- Stroke Length: 50~1000mm
- Color: Black/Silver Grey
- IP Grade:IP66
- Operating Temperature: +5C~+40*Noise: 45~48dB
- Optional: Hall sensor; Limit switch
- Min Installation Size: stroke+150mm(without hall sensor or overload protect)
- Min Installation Size: stroke+170mm(with hall sensor or overload protect)
| Model | NKLA62 | NKLA62 | NKLA62 |
| Dynamic Load push(N) | 100 | 250 | 500 |
| Dynamic Load pull(N) | 100 | 250 | 500 |
| lnput(VDC) | 12/24 | ||
| Speed at Full Load(mm/s) | 11 | 6.5 | 3.5 |

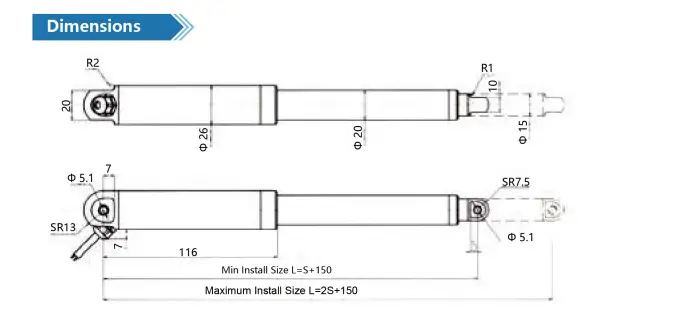

NKLA62 Dimensions
