Introduction

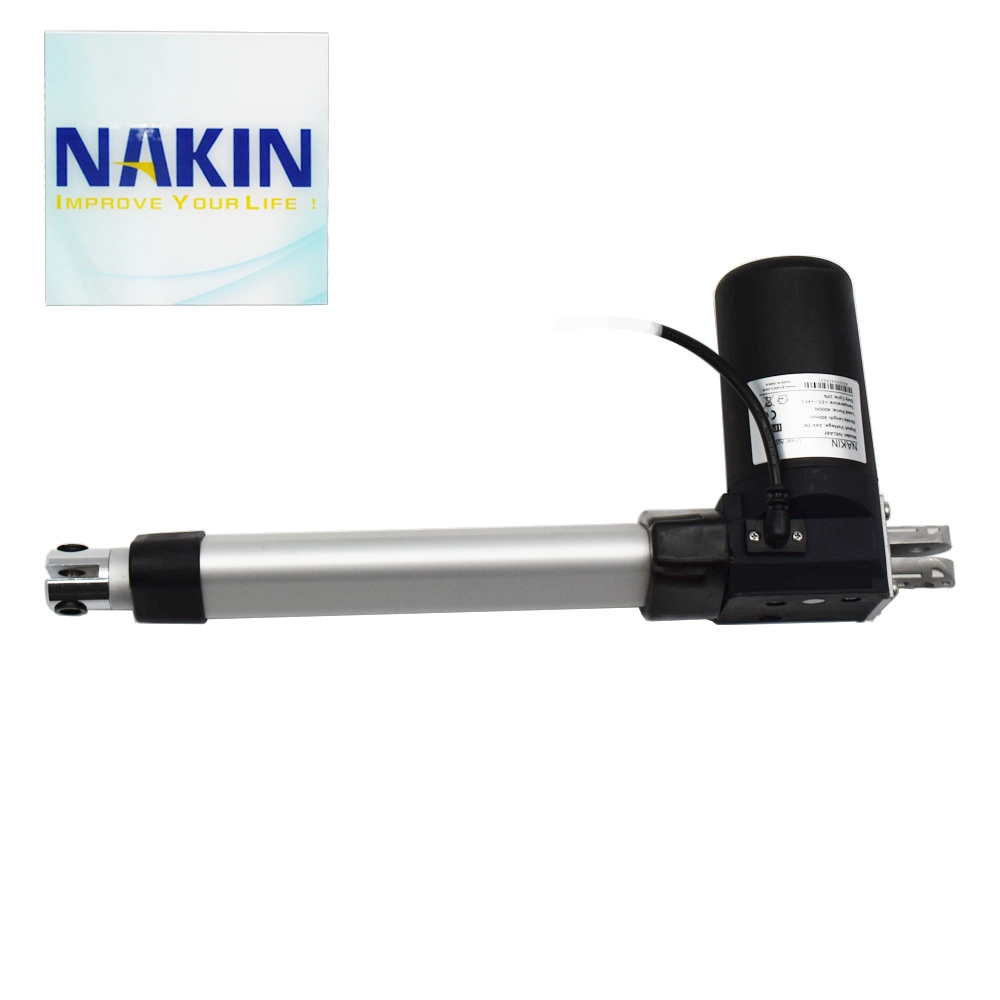

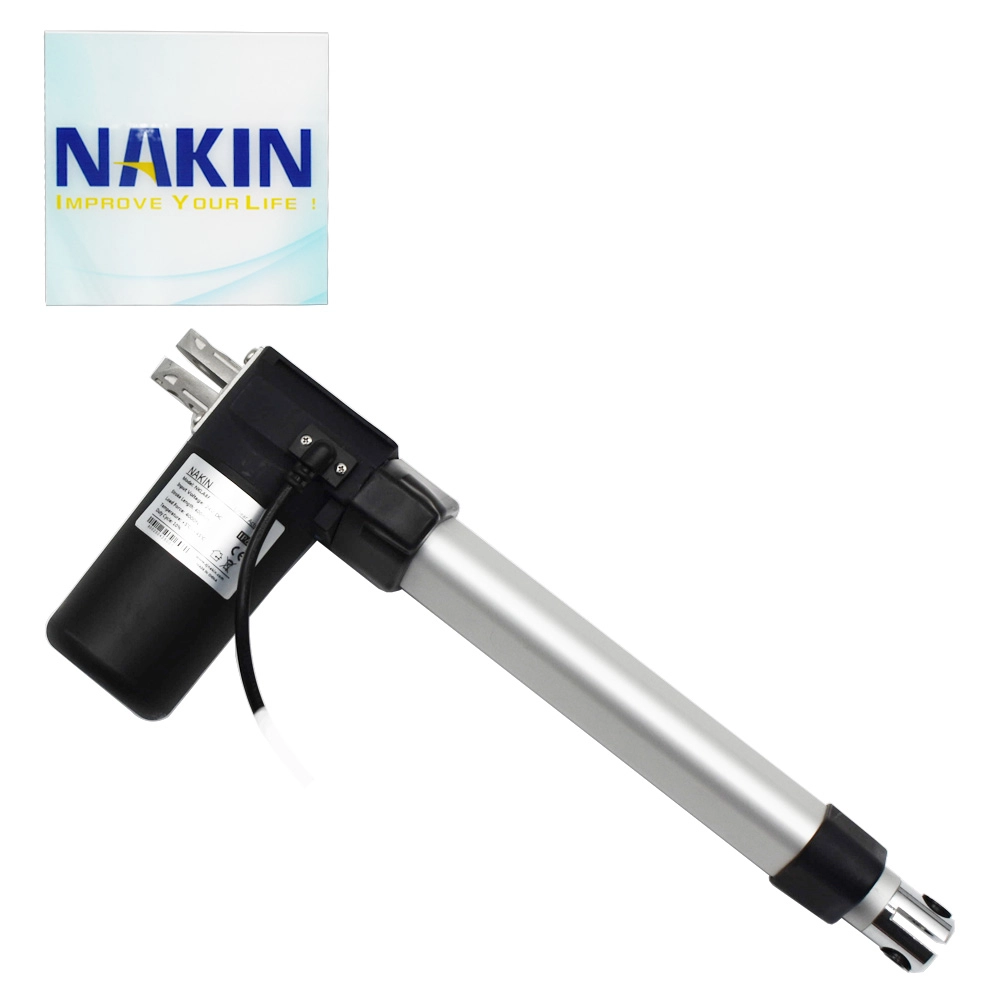

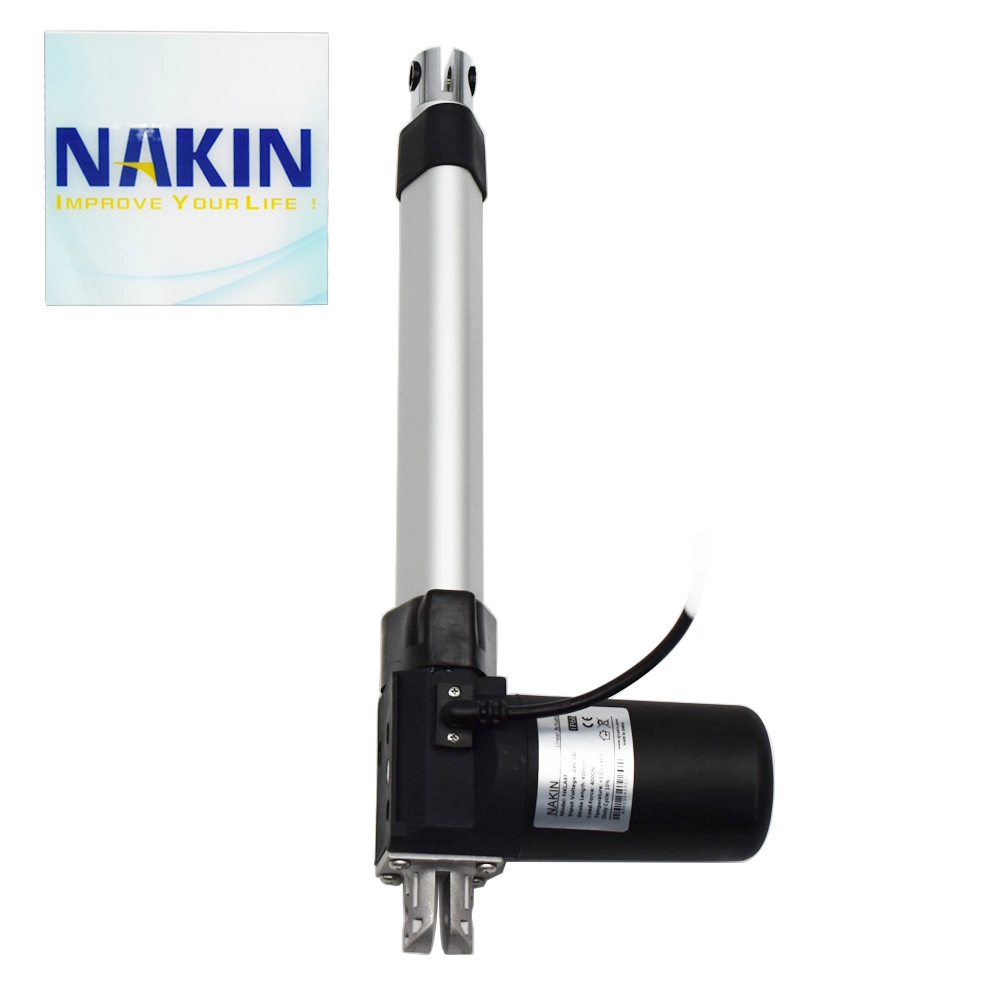

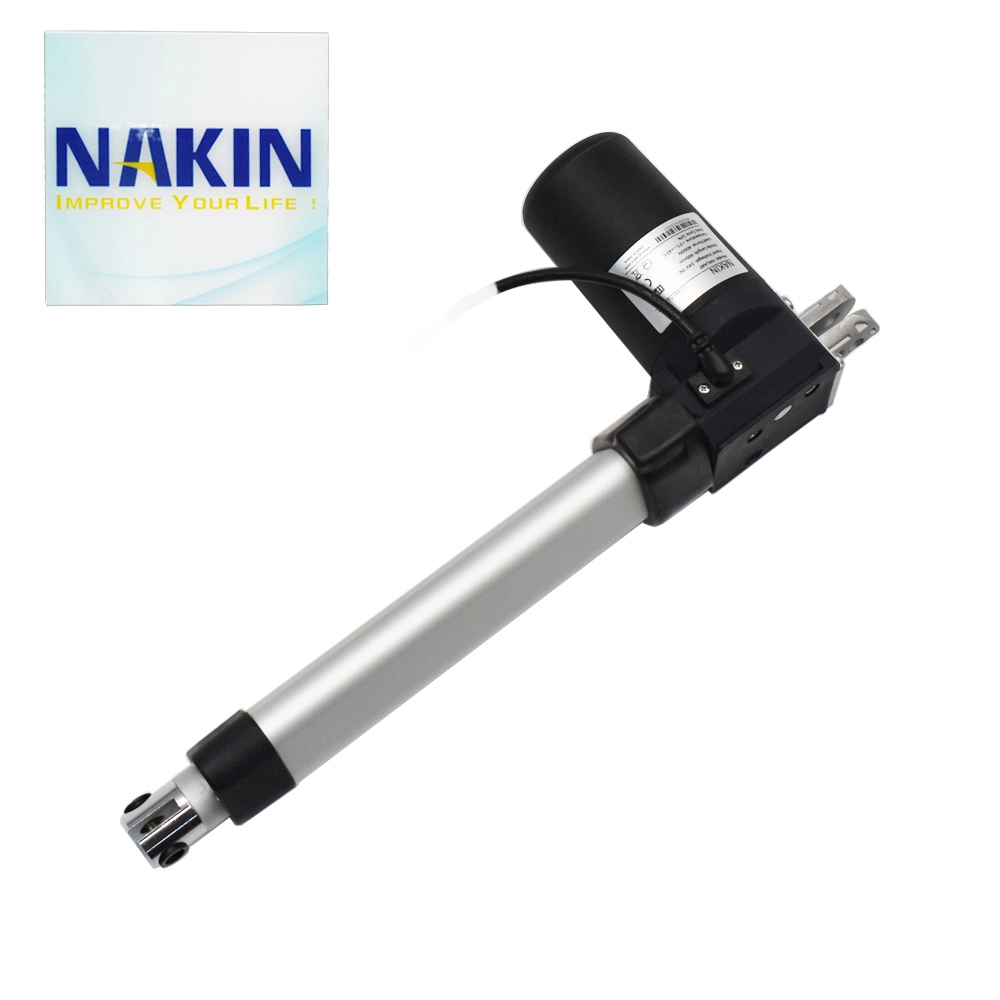

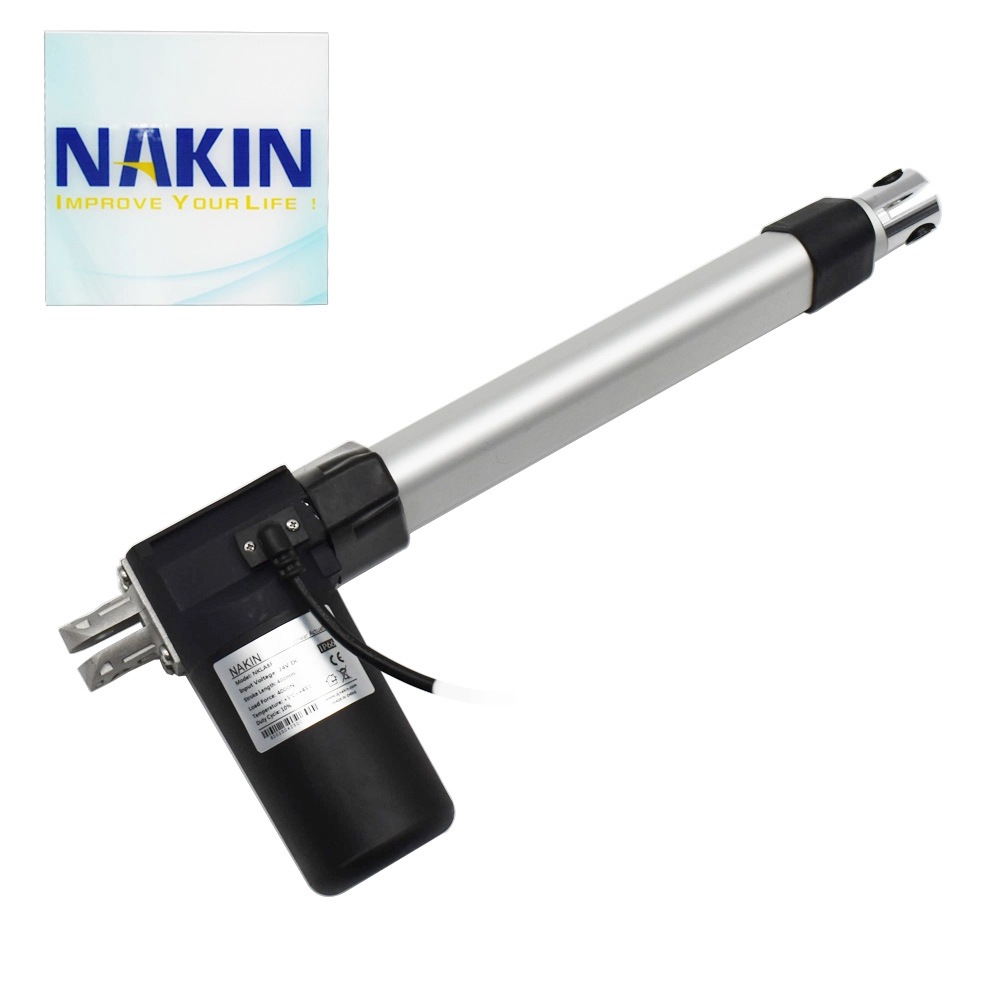

- NKLA8F high speed linear actuator is a relatively fast-extending actuator available. Typical applications include driving electric gates, automatic windows and other home automation assemblies. The actuator may provide a pushing or pulling force of up to 4000N and a travel speed of up to 9mm/s at full load .
- The IP66 rating of this linear actuator makes it suitable for harsh environments such as outdoor applications or areas with extreme temperatures. Its waterproof and dustproof protection ensures that it can withstand exposure to water, dust, or other environmental factors, making it a reliable and durable solution.
- 4000N high speed IP66 linear actuator is highly customizable, which allows for more flexibility in terms of its use. It can be easily integrated with other systems or equipment, making it an ideal option for various applications in automotive, industrial, medical, and farming industries, among others.
Features
- Strong and robust design
- 24V DC permanent magnet motor
- Thrust up to 4000 N in push and up to 4000 N in pull
- Color: gray or black
- Standard protection class: IP66
- Aluminium-Alloy outer tube and inner tube, beautiful and corrosion resistant
7.Low noise; The average noise level is lower than 48dB (ambient noise is less than 40dB).
- Built-in electronic limit switches
- High-strength front and back fixtures
- Quick speed, the quickest speed can arrive 55mm/s
| Model | NKLA8F | ||
| Dynamic Load Push(N) | 4000 | 2000 | 500 |
| Dynamic Load Pull(N) | 4000 | 2000 | 500 |
| Static Load Push*(N) | 4000 | 2000 | 500 |
| Static Load Pull*(N) | 4000 | 2000 | 500 |
| Input（VDC） | 24/12 | ||
| Speed at Full Load(mm/s) | 9 | 18 | 55 |
| Stroke Length（mm） | 100-400( option>400) | ||
| Mounting position | H type、V type and 45 degrees type | ||
| Color | Black or Gray | ||
| Limit Switch | Build-in | ||
| Overload Protection | Yes | ||
| Duty Cycle | 10%. max 2min. continuous use | ||
| IP Grade | IP66 | ||
| Operating Temperature | 0℃ ~ +40℃ | ||
| Optional Features | Only push option | ||
| Standard | CE | ||

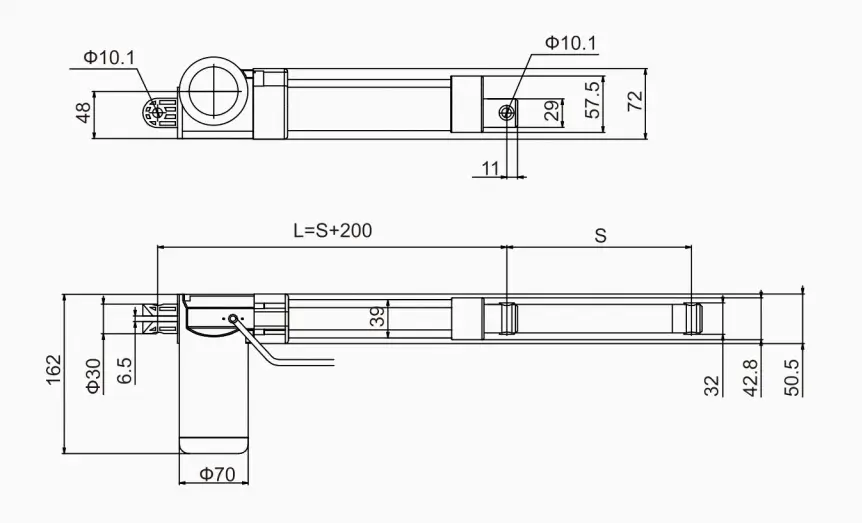

NKLA8F Dimensions
