slide track linear actuator
10000n heavy duty linear actuator for hospital beds
Introduction

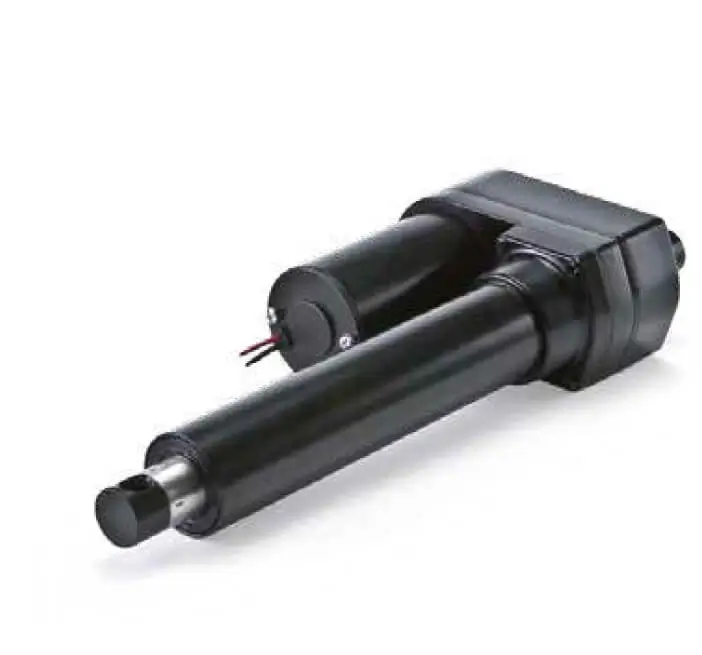

nkla55 high speed 3500n 24vdc linear actuator Heavy Duty linear actuator is an ideal electric linear actuator for ground cleaning machine, scrubber, etc. 12V/24V DC voltage, optional signal feedback potentiometer/hall sensor.
2000N-7000N load, 50mm~600mm stroke length. IP 66 grade. Built-in limit switch and clutch dual protection.High quality unit. Very smooth operation. Die-cast Aluminum frame, hardened steel shaft. Easily one of the strongest and most durable actuators on the Australian/US market, and for the cost, possibly the best! NAKIN 24vdc linear actuator Uses Include: Furniture, appliances, automotive, satellite, solar, off-road equipment, construction equipment, agricultural equipment, adjustable seating mechanisms etc.
nkla55 high speed 3500n 24vdc linear actuator Material: aluminum alloy housing, IP66-rated protection sealed against dust, water, and corrosion suitable for outdoor use. The internal limit switch automatically switches off when it reaches in case of the motor idling. It widely used in many industries, such as electric power, machinery, metallurgy, mining, petroleum, chemical industry, transportation, lifting, construction, food and feed processing, and so on.
nkla55 high speed 3500n 24vdc linear actuator Professional team: NAKIN has been manufacturing linear actuators for many years, passing several technical tests.
Features
- Stroke Length: 102~610mm
- Color: Blac
- Limit Switch: Built-in
- Overload Protection: Yes
- Duty Cycle: 25%, max 2min continuous use
- IP Grade: IP66
- Operating Temperature: -40°C~+65°C
- High efficiency ball screw
| Model | NKLA55 | NKLA55 | NKLA55 |
| Dynamic Load push(N) | 2300 | 3500 | 4500 |
| Dynamic Load pull(N) | 2300 | 3500 | 4500 |
| lnput(VDC) | 12/24 | ||
| Speed at Full Load(mm/s) | 45~65 | 24~36 | 14~19 |

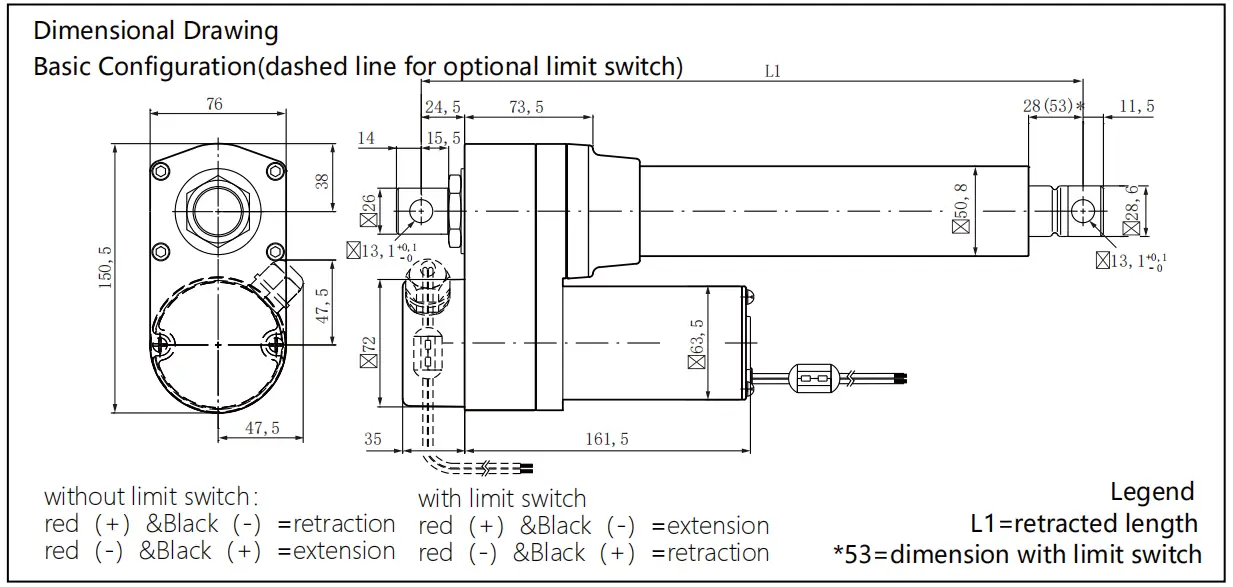

NKLA55 Dimensions
