Introduction

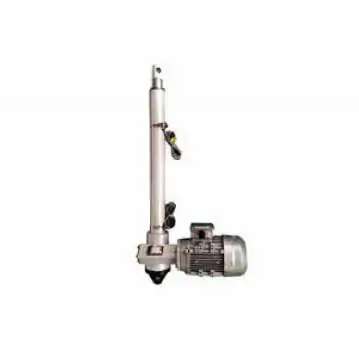

high speed 3000n electric cylinder nkla75 load 4500n the electric mechanical screw rams Nkla75 is a universally applicable drive for a wide range of mechanical engineering applications. The high speed 3000n electric cylinder nkla75 system is particularly suitable for individual drive applications for linear drive tasks. high-speed 3000n electric cylinder nkla75 is a bearing unit with a spindle directly driven by a drive motor. The high speed 3000n electric cylinder version consists of a shaft and thrust tube construction in a completely closed version.
There are many types and sizes of electric linear actuators. From small and compact that fit into tight spaces, such as in wheelchairs, to large and powerful to move heavy items like a wheel loader engine hood. In addition to size and power, there are also many different designs of electric linear actuators. The original design has a motor housing that is outside of the gear and spindle profile. But when space is limited, an inline actuator is used so that the motor only extends the shape of the profile.
Features
- Stroke Length: 50~800mm
- Color: Grey
- Limit Switch: built-in
- Duty Cycle: 10%, max 2min continuous use
- Standard:CE
- Max push load:4500N
- Speed with load: 3.5~82mm/s
- Optional: Explosion-proof motor
- 12 VDC operation (actuator can also be used on 24 VDC systems on a 15% duty cycle)
- Stroke length = 24 in and 18 in respectively
- Travel speed = 0.31 inches/sec (8 mm/s)
- Maximum current draw for one actuator = 12 Amps
- Included: 1pc 24″ NAKIN NKLA75 Linear Actuator, 1pc 18″ NAKIN nkla75 Linear Actuator plus mounting hardware
| Model | NKLA75 | NKLA75 | NKLA75 |
| Dynamic Load push(N) | 1300 | 3000 | 4500 |
| Dynamic Load pull(N) | 1300 | 3000 | 4500 |
| Input(VDC) | 220/380 | ||
| Speed at Full Load(mm/s) | 82 | 10 | 3.5 |

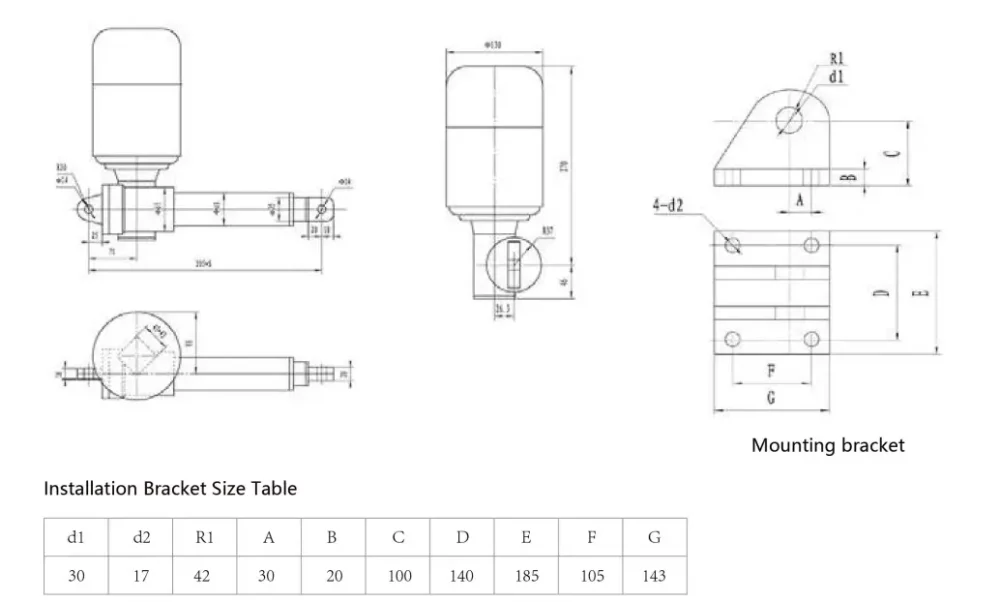

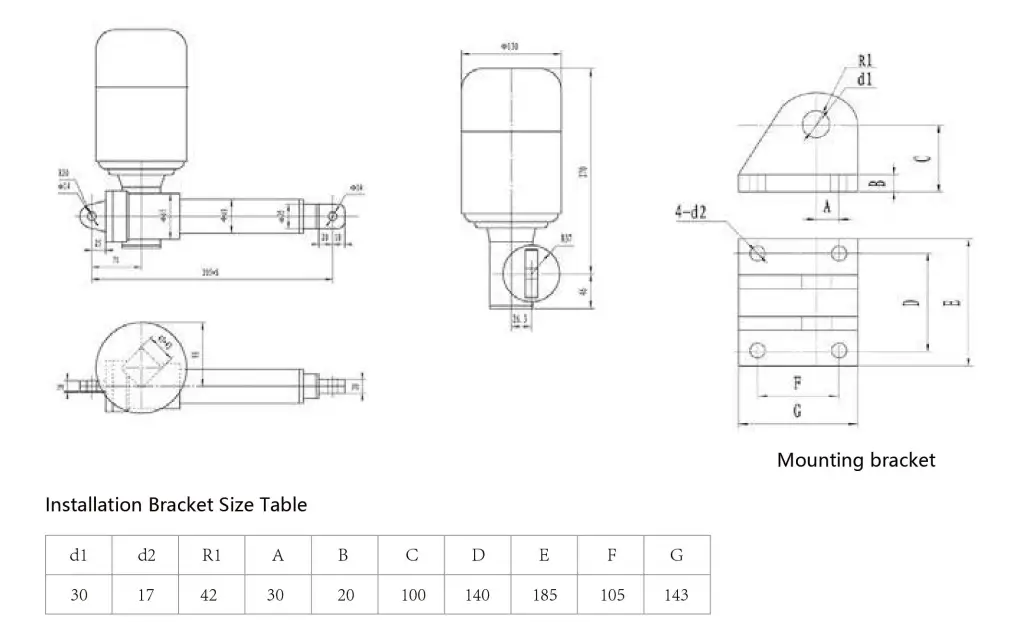

NKLA75 Dimensions
