Introduction
High speed 10000n 24V electric linear actuator Nkla63 electric linear actuator was specifically designed for applications that face harsh working environments, requiring a heavy-duty construction and durability. high load 10000n electric linear actuator 10 Inch 10″ Stroke Heavy Duty 3000N/660lbs Linear Actuator 12V Electric Actuator 0.2″/s with Mounting Brackets for Window Opener,Door Opener,Home Automation.
Linear actuator Nkla63 the environmental protection rating provides a versatile unit able to withstand dust, water, and harsh environments. High speed 10000n 24V electric linear actuator Nkla63 heavy duty actuator is the only unit in our line of products with adjustable limit switches, which allows customers fully control over where to start and stop the actuator.
High speed 10000n 24V electric linear actuator Nkla63 Built-in adjustable (up to 24″ stroke length) this Industries actuator can be used in a variety of different applications, from lifting a marine hatch on a boat to being utilized in industrial machinery equipment found in the construction industry. Might be used in modern forage harvesters, combines and feeding machines.
Features
- Stroke Length: 50~700mm
- Color: black
- Limit Switch: Built-in
- Duty Cycle: 20%, max 2min continuous use
- IP Grade: IP69K
- Operating Temperature: -40°C~+85°C
- Industrial protection and intensity, medical noise
| Model | NKLA63 | NKLA63 | NKLA63 | NKLA63 |
| Dynamic Load push(N) | 2300 | 3500 | 6800 | 10000 |
| Dynamic Load pull(N) | 2300 | 3500 | 6800 | 10000 |
| Max Push/pull Load | 3500 | 4900 | 9500 | 14000 |
| lnput(VDC) | 12/24 | |||
| Speed at Full Load(mm/s) | 42 | 37 | 17 | 10.2 |

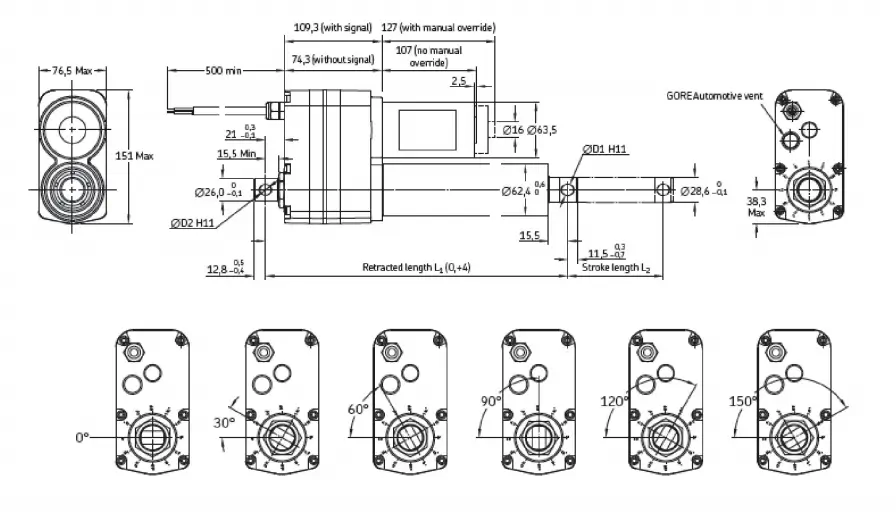

NKLA63 Dimensions
