Introduction
high load medium pressure linear actuator nkla110 actuator high load electric linear actuator is one of our great medical grade linear actuators. It can lift up to 8000N and its IP rating is up to IP66W. high load medium pressure linear actuator nkla110 actuator is a high quality solution for medical applications such as medical beds, medical chairs, or home care options.
high load medium pressure linear actuator nkla110 actuator is a quiet and powerful actuator up to 8000n thrust, which is designed for use in a variety of medical and home care applications such as patient hoist and bed.
Features
- Main applications: Medical, Home care
- Input voltage: 24V DC
- load: 8000N (push) / 6000N (pull)
- Typical speed at no load: 8.2 mm/sec
- Typical speed at full load: 4.8 mm/sec (8000N load)
- Stroke: 50 ~ 400 mm
- Noise level: ≦50dB
- IP Level: IPX4, IPX6 (static, non-action)
- Rear connector’s pivot oritention can be chosen in every 30 degrees
- Preset limit switches
- Steel extension tube
- Color: Light gray RAL 7035
- Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
- Ambient operation temperature: +5°C ~ +40°C
- Storage ambient temperature: -25°C ~ +65°C
| Model | NKLA110 | NKLA110 |
| Dynamic Load push(N) | 6000 | 4000 |
| Dynamic Load pull(N) | 4000 | 3000 |
| lnput(VDC) | 24~29 | |
| Current(A) | 4.5 | 4.3 |
| Speed at Full Load(mm/s) | 3.9 | 5.9 |

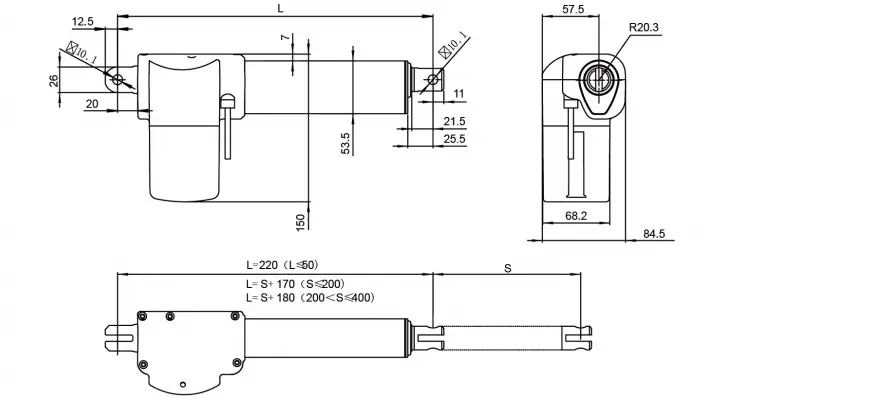

NKLA110 Dimensions
