Introduction

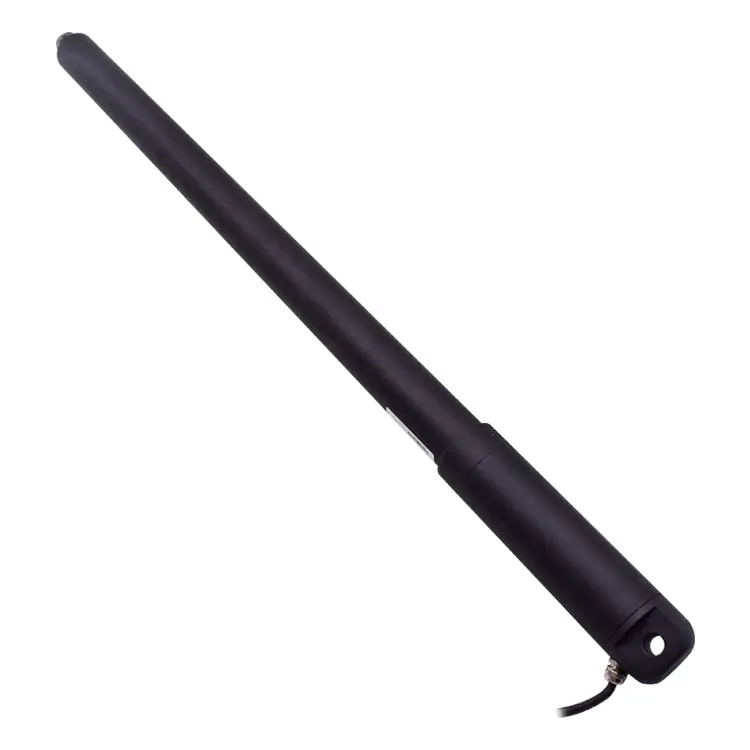

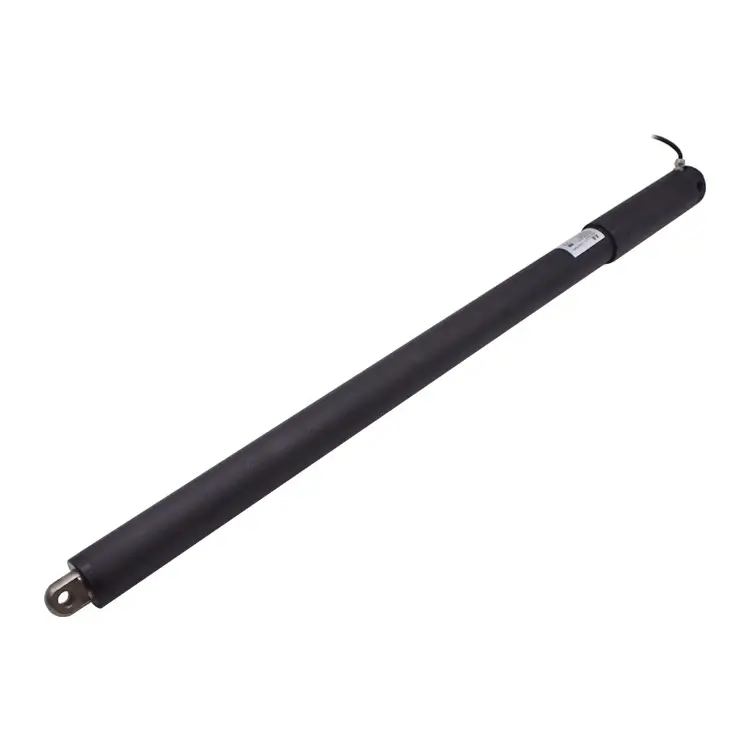

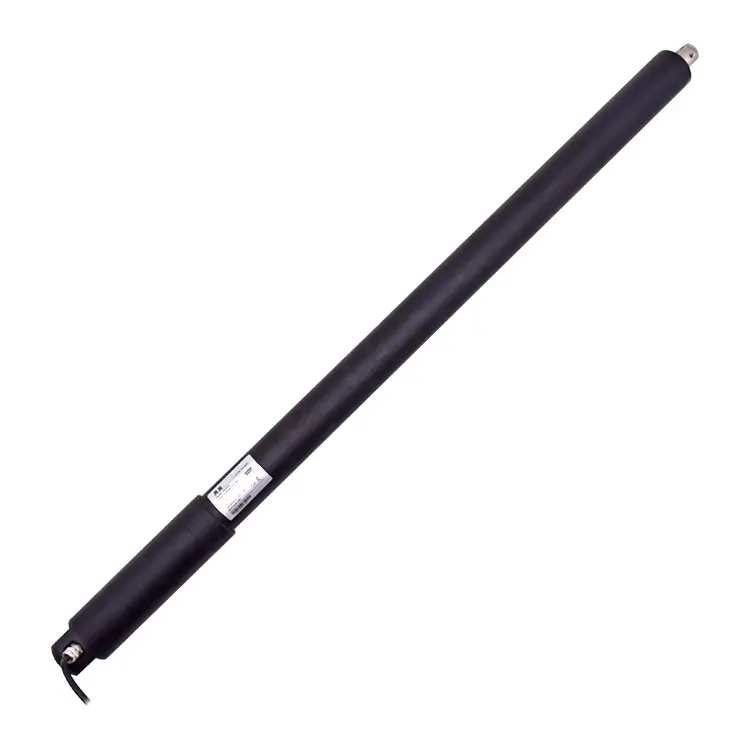

NKLA43 heavy load tubular inline actuator is widely used, such as the antenna, hatch door and escalator of yacht, for the adjustment of antenna’ s angle, open of the hatch door, the up & down of escalator. Actuator make the yacht more intelligent as it is easy to install, convenient to use with its compact structure, attractive appearance, low energy, low noise, waterproof and dustproof.
This type of actuator is incredibly powerful, with a load capacity of up to 6000N, making it an ideal choice for heavy-duty applications that require a high degree of force.
The use of a tubular inline design makes these actuators highly compact and space-efficient, allowing them to be easily integrated into a wide range of installations.
Features
1.DC mini permanent magnet motor .
2.Speed 2~48mm/s (optional)
3.maximum load 6000N.
4.Temperature range : -20°C~+45°C
5.Duty cycle : 10% with full load .
6.build in limit switch .
7.IP grade: IP66
8.hall sensor for option
| Product name | NKLA43 tubular linear actuator | |||
| Load force(N) | 6000N | 4000N | 2000N | 500N |
| Full load speed(mm/s) | 2 | 3 | 12.5 | 48 |
| Stroke length (mm) | 50mm~600mm | |||
| Retracted length(mm) (mounting length ) |
Stroke +320mm | |||
| IP grade | IP65 | |||
| Duty cycle | 10% , max 2 min. continuous use | |||
| Limit Switches | Built in | |||
| Color | Silver | |||

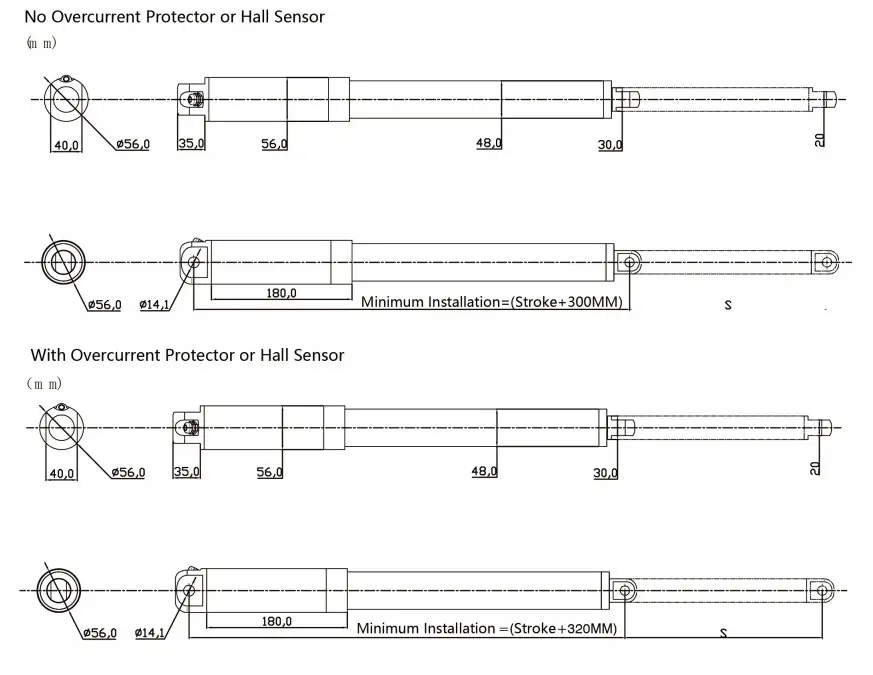

NKLA43 Dimensions
