24v solar electric actuators with mounting bracket
AC motors 220/380V 80000N linear actuator
Introduction

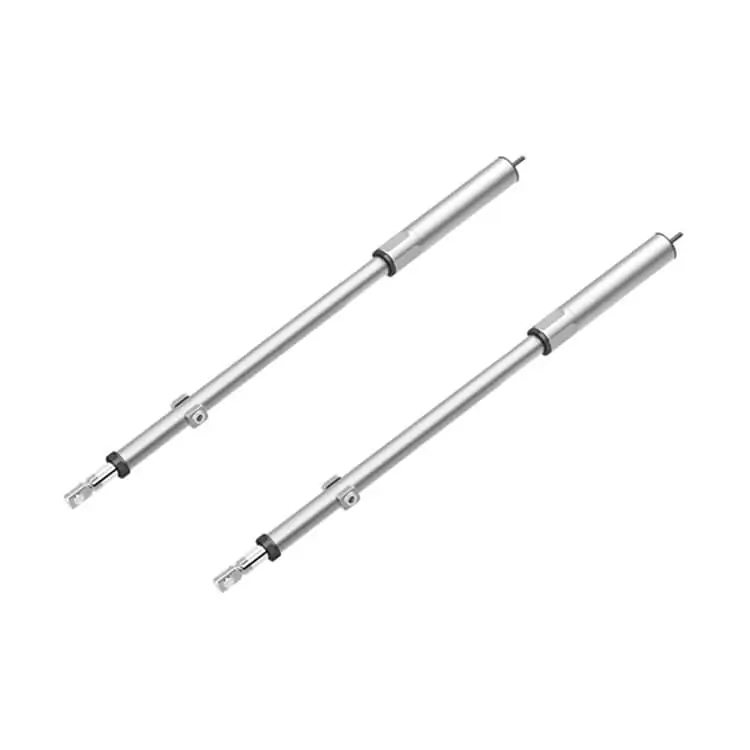

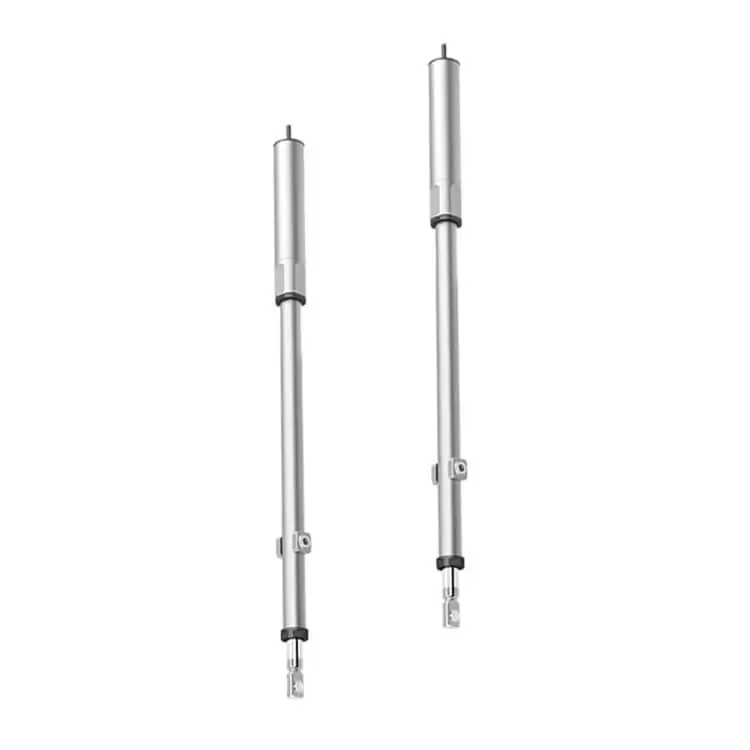

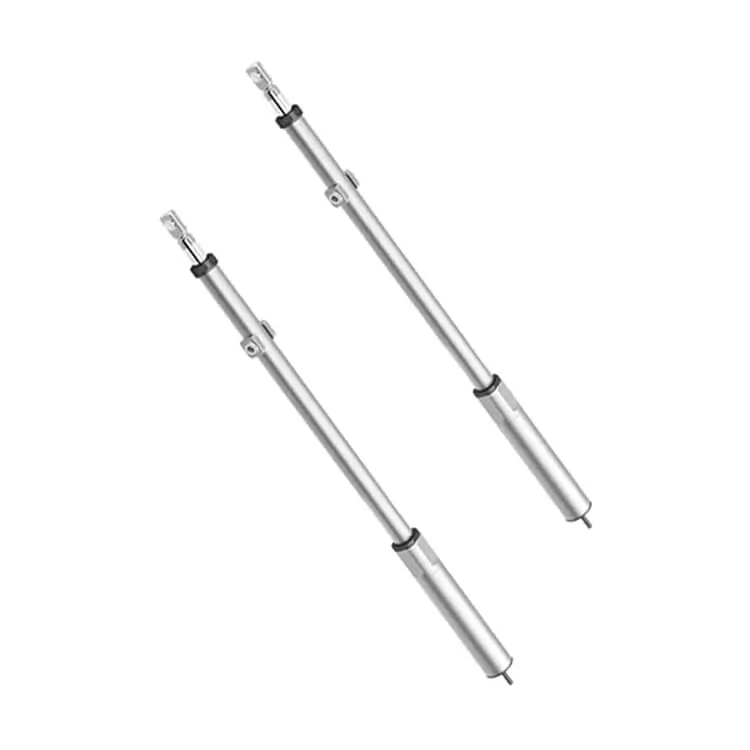

Heavy Duty Electric Linear Actuator for solar NKLA105Compatible with solar Maximum current consumption: 4A. Linear actuators are actuators which create motion in a straight line, can be used with any application that requires moving something in a straight line. Drive other objects to push, pull, rise, drop.
Heavy Duty Electric Linear Actuator for solar NKLA105 Compatible with solar It with Built-in Limit Switches, can Cut off the power, this 12 volt actuator can be stopped at any position, with self-locking function.Industries – from lifting a marine hatch on a boat to being utilized in industrial machinery equipment found in the construction industry.
Features
- Stroke Length : ≤1000mm
- color: Meta
- Limit Switch : Build-in
- IP Grade: IP66
- Operating Temperature : -30C~+65°
- High precise of positioning and repositioning
- Suitable for industrial solar field, tower photothermal solar heliostat
| Model | NKLA105 |
| Dynamic Load push(N) | 24000 |
| Dynamic Load pull(N) | 50000 |
| lnput(VDC) | 24 |
| Speed at Full Load(mm/s) | 0.6 |

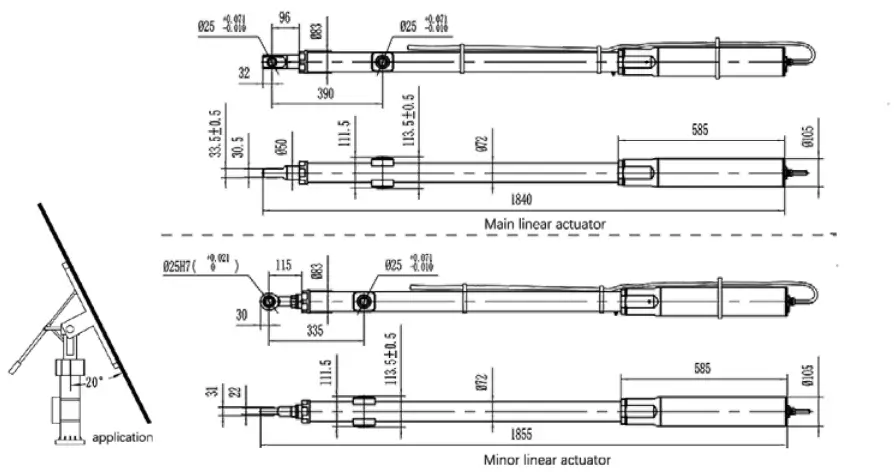

NKLA105 Dimensions
