Introduction
Linear actuator is a device that converts the rotational motion of a low voltage DC motor into linear motion – that is push and pull movements. The electric linear actuator consists of a motor, a gear and a spindle including a nut. A special version of the linear actuator is the built-in actuator meant for integration in a customer guidance. A complete actuator system solution includes one or more linear actuators, a control box and a control device to operate the actuator .

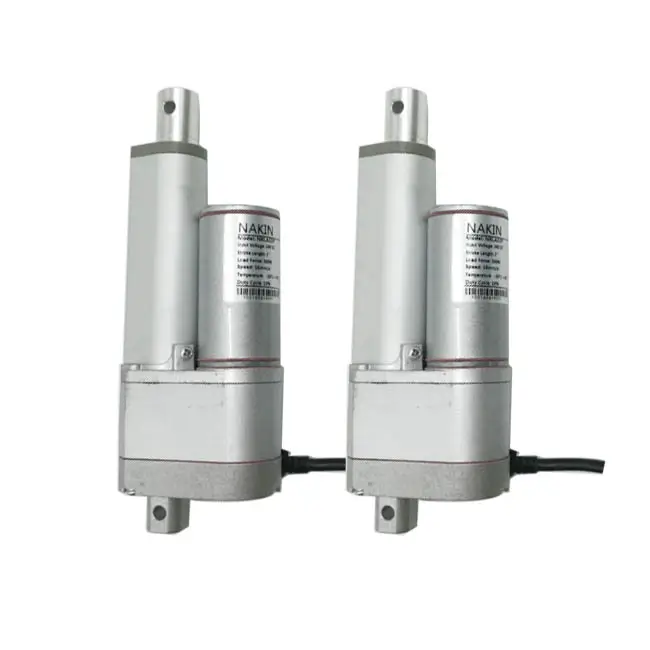

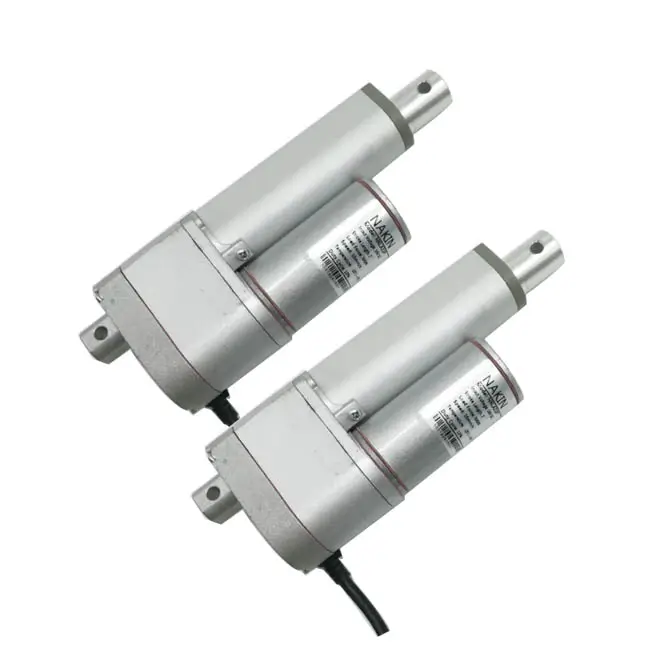

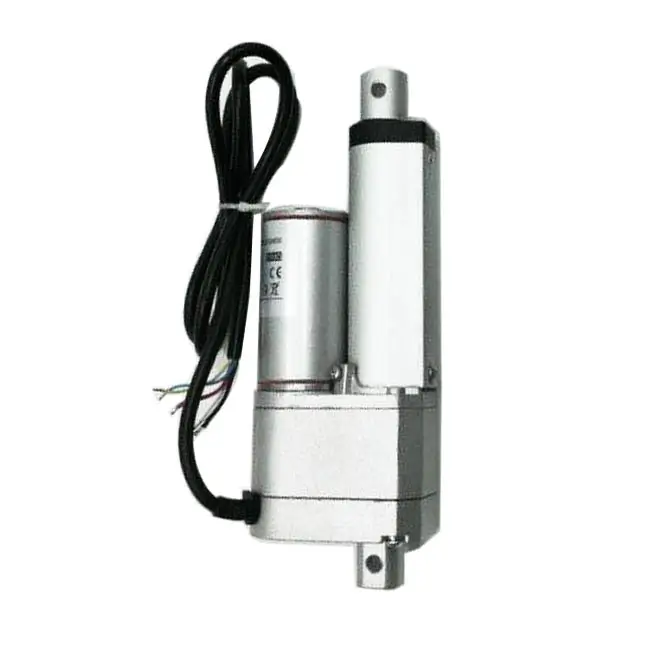

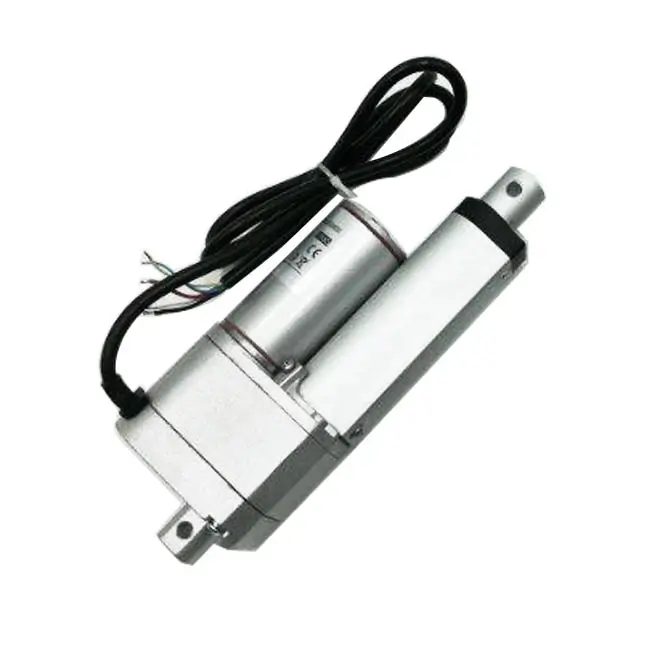

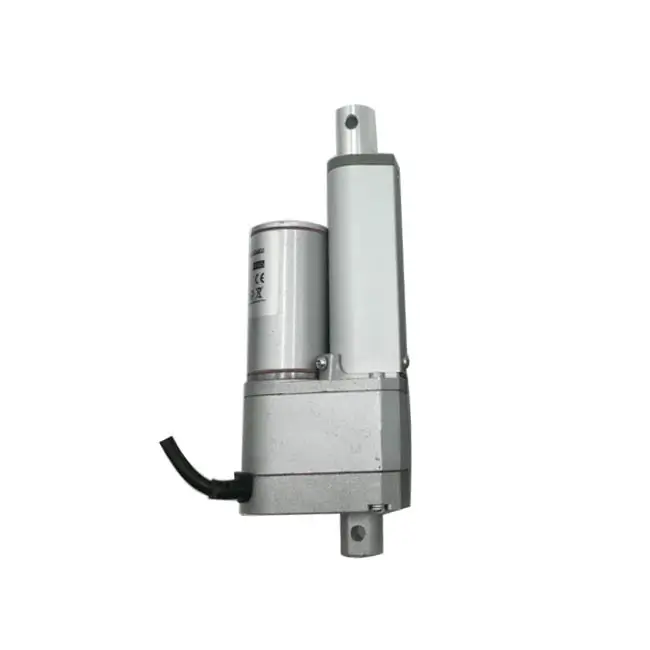

NKLA22P feedback linear actuator utilizes a fundamental linear motion design in a compact body. The built-in potentiometer feedback allows for position control. This feature is important to applications that require precision. The low current, medium force actuator is ideal for industries such as home automation , automotive and manufacturing.
Features
- Max load 900N
- Duty cycle 20%(High-speed linear 10%)
- Max static force 2300N
- Aluminium outer tube and stroke rod
- Protection IP54 or IP65
- Potentiometer:1K,5K,10K
- 12 or 24 or 36 or 48VDC
- Aluminium alloy housing
- Preset limit switches
- Powder metal gear
| Product name | NKLA22P linear actuator with potentiometer | ||||||
| Load force(N) | 900N | 800N | 600N | 300N | 200N | 100N | 50N |
| NO load speed(mm/s) | 3 | 10 | 16 | 26 | 30 | 50 | 80 |
| Stroke length (mm) | 50mm~600mm (option>600) | ||||||
| Retracted length(mm) (mounting length ) |
Stroke +140mm | ||||||
| IP grade | IP54/IP65 | ||||||
| Duty cycle | 20% , max 4 min. continuous use | ||||||
| Limit Switches | Built in | ||||||
| Color | Black or silver | ||||||

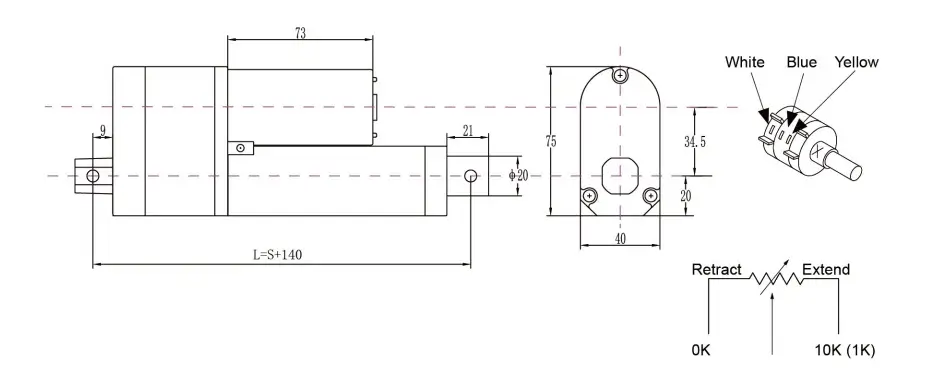

NKLA22P Dimensions
