Introduction

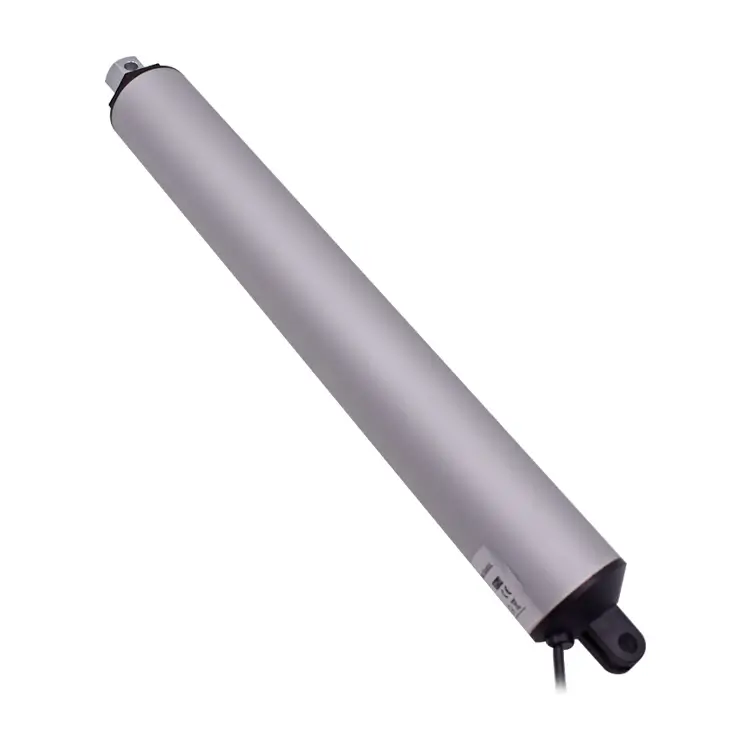

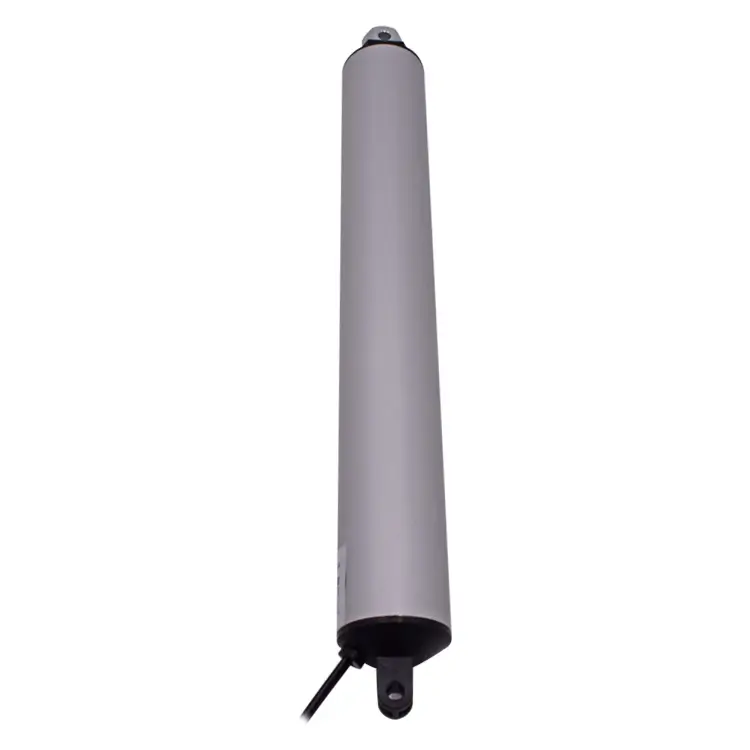

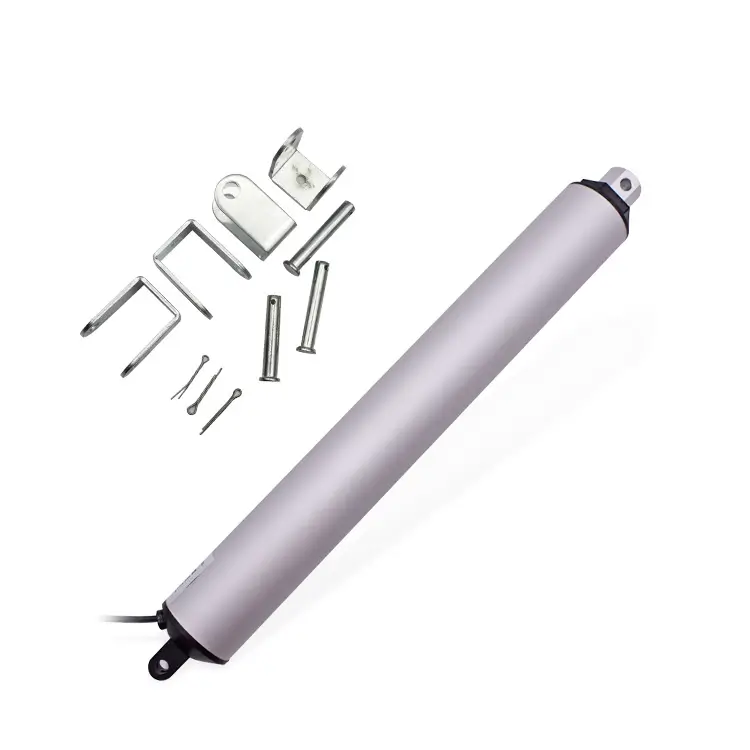

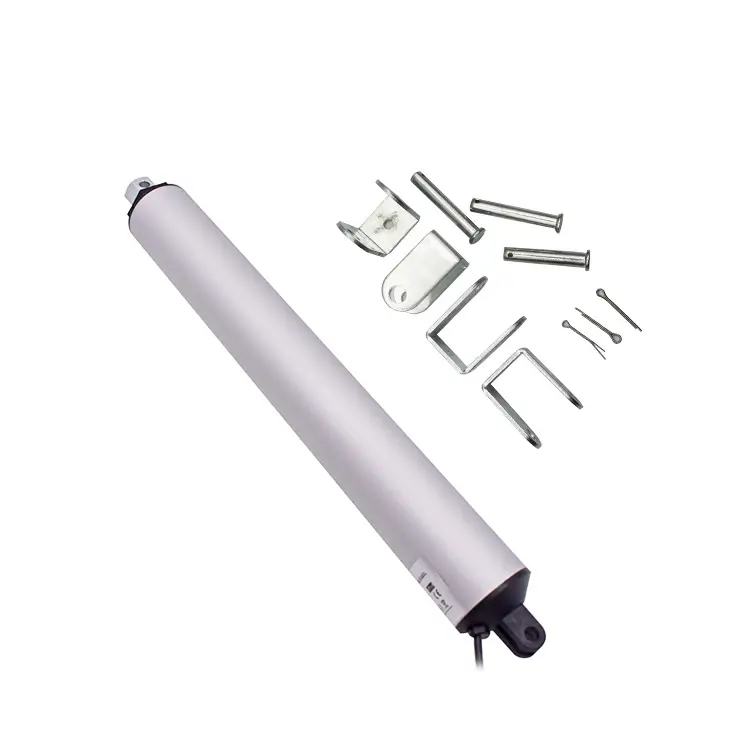

NKLA42 fast speed linear actuator With ACME screws, built-in Micro switch and an internal diode, can automatically stop and enables the change of direction by simply reversing the applied voltage polarity. stroke length can be customized. switches are not made to be adjustable. Little power, but run high-speed .
NKLA42 high-speed linear actuator is the fastest unit in our line of products. The small outer-diameter shaft housing and actuator rod create an ideal unit for applications where space is limited.
Features
- Max load 200N
- Duty cycle 20%
- Max speed 230mm/s
- Operating temperature -26°C~+65°C
- Aluminium outer tube and stroke rod
- Protection IP54
- 12 or 24 or 36VDC
- Aluminium alloy housing
- Preset limit switches
- Low price
- High-speed
| Product name | NKLA42 tubular linear actuator | |||
| Load force(N) | 50N | 100N | 150N | 200N |
| No load speed(mm/s) | 230 | 140 | 80 | 45 |
| Stroke length (mm) | 50mm~500mm | |||
| Retracted length(mm) (mounting length ) |
Stroke +235mm | |||
| IP grade | IP65 | |||
| Duty cycle | 10% , max 2 min. continuous use | |||
| Limit Switches | Built in | |||
| Color | Silver | |||

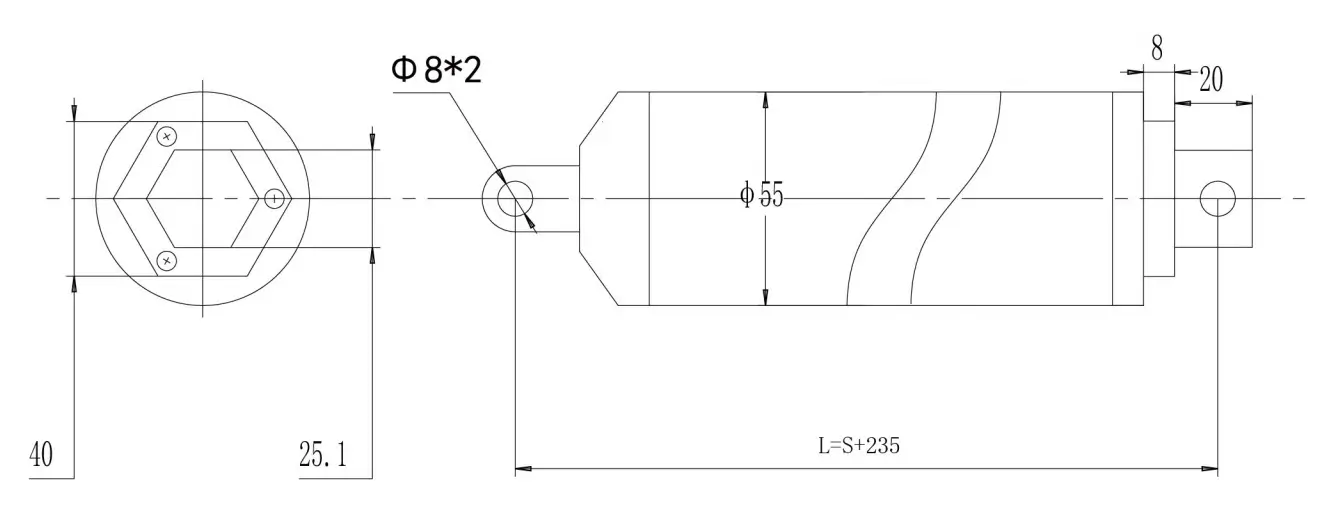

NKLA42 Dimensions
