solar 24v 18in 15kn linear actuator
Single leg height adjustable lifting desk frame
Introduction

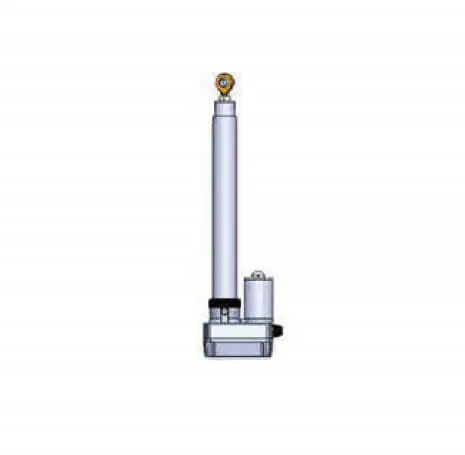

dual axis ip66 solar tracker linear actuator nkla73 stroke 4 inch 8000n heavy duty linear actuator The linear actuator is made of high quality aluminum;with high performance motor and built-in limit switch,it can be stopped at any position and automatically stop at the top,with self-locking function.dual axis ip66 solar tracker linear actuator nkla73 solar product range has been designed with all challenges like limited end play, high precision, large holding forces due to wind loads etc. Our design criteria have been to design actuators with a lifetime of 20 years.
NAKIN Electric linear actuators are used in everything from private homes, the offices where we work, all areas of hospitals, in production in factories, to farming equipment, and many other places. NAKIN electric linear actuators create adjustments in both desks, kitchens, beds, and couches, as well as hospital beds, patient lifts, and surgery tables among others in for example hospitals and medical centers. Electric linear actuators can also replace hydraulic and pneumatic solutions in industrial and rugged environments for example, those found in agriculture, construction, and industrial automation equipment.
Features
- Stroke Length: 50~1000mm
- Color: Grey
- Limit Switch: built-in
- Duty Cycle: 20%
- Operating Temperature: -26C~+65°C
- Signal Feedback: Reed Switch/Potentiometer
- Material: Metal gear; Copper nut
- Max push load: 8000N
- Max static load: 20000NRated load : 6000N
- Input: 12/24/36VDC
- Speed with load: 3mm/sCurrent with load: <4.0A
| Model | NKLA73 |
| Dynamic Load push(N) | 8000 |
| Dynamic Load pull(N) | 20000 |
| lnput(VDC) | 12/24/36 |
| Speed at Full Load(mm/s) | 3 |

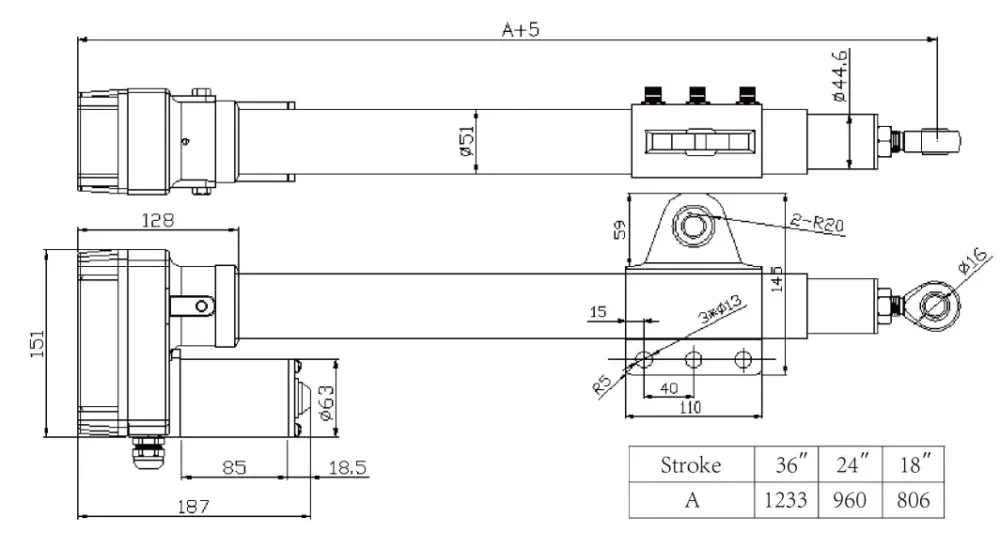

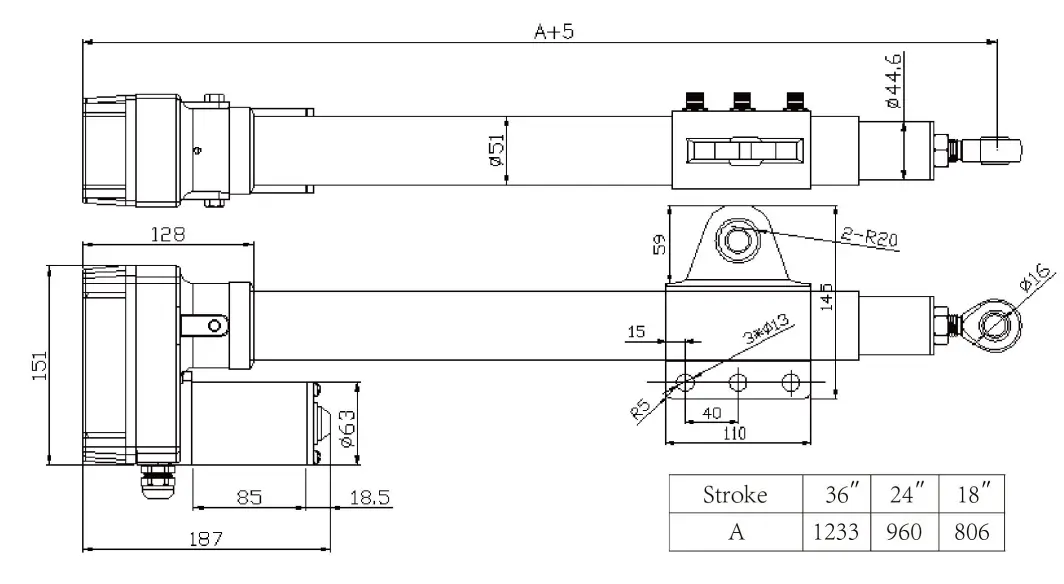

NKLA73 Dimensions
