Heavy Duty Electric Linear Actuator for solar
load 6000N dual motor electric linear actuator
Introduction

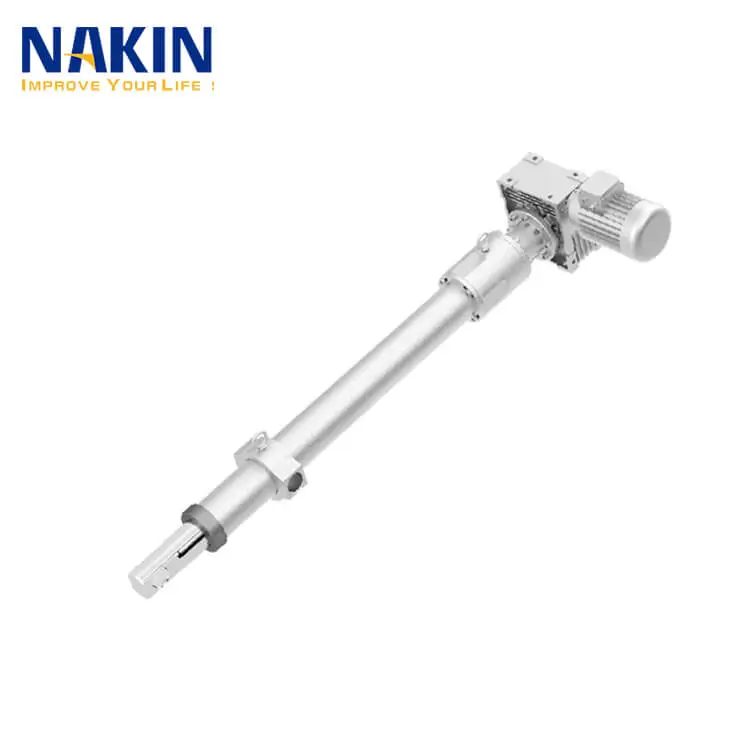

AC motors 220/380V 80000N linear actuator Nkla106 high load 80000N linear actuator High-strength/high-wear-resistant material selection, high-precision parts processing, and advanced shell design concepts create high-quality products with high load-bearing capacity, impact resistance, low noise, and long life, and can work normally in harsh industrial environments. The configuration is divided into ordinary tooth screw electric push rod (working duty is 30%) and ball screw electric push rod (working duty is 60%).
AC motors 220/380V 80000N linear actuator The electric actuator can be driven by optional DC motors 12/24/36/48V, single-phase/three-phase AC motors 220/380V, stepper motors, servo motors, explosion-proof motors, reduction motors, etc.
Features
- Stroke Length: <2100mm
- Color: BlackGrey
- IP Grade: IP66/IP56
- Operating Temperature: -30°C~+65C
- Industrial field
| Model | NKLA106 |
| Dynamic Load push(N) | 80000 |
| Dynamic Load pull(N) | 80000 |
| Input(VAC) | AC380/220 |
| Speed at Full Load(mm/s) | 4 |
NKLA106 Dimensions
