Introduction
Linear actuators are the most versatile and fundamental products in our line up, making them an ideal choice for many projects. Combining compact design with powerful performance, this cost-effective solution can be found in a variety of industries.
The 8000N patient lift linear actuator is a highly advanced, reliable, and efficient device that is used to move patients from one place to another.
NKLA15 actuator is one of the most powerful and efficient devices used for patient mobility. This device ensures smooth and swift movements of patients, ultimately reducing the risk of injuries or discomfort for both patients and caregivers.
8000N patient lift linear actuator is a highly valuable and effective device that offers numerous advantages. Its versatility, user-friendliness, safety, efficiency, and time-saving features make it an ideal choice for medical facilities, clinics, and patients.
Features
- Quiet and powerful design
- Up to 8000N load capacity with manual function in emergency
- Idea for patient lift application
- 24V DC permanent magnet motor
- Color: gray
- Standard protection class: IP54
- Aluminium-Alloy outer tube and inner tube, beautiful and corrosion resistant
- The average noise level is lower than 45dB (ambient noise is less than 40dB).
- Built-in electronic limit switches
| Dynamic Load Push(N) | 8000 |
| Static Load Push*（N） | 8000 |
| Input（VDC） | 24 |
| Without Load(mm/s) | 6 |
| Speed at Full Load(mm/s) | 3 |
| Stroke Length（mm） | ≤400 |
| Mounting position | H type or V type |
| Color | Grey |
| Limit Switch | Build-in |
| Overload Protection | Yes |
| Duty Cycle | 10%. max 2min. continuous use |
| IP Grade | IP54 |
| Operating Temperature | +5℃~ +40℃ |
| Safety nut | Build-in |
| Operation | Head rotate |

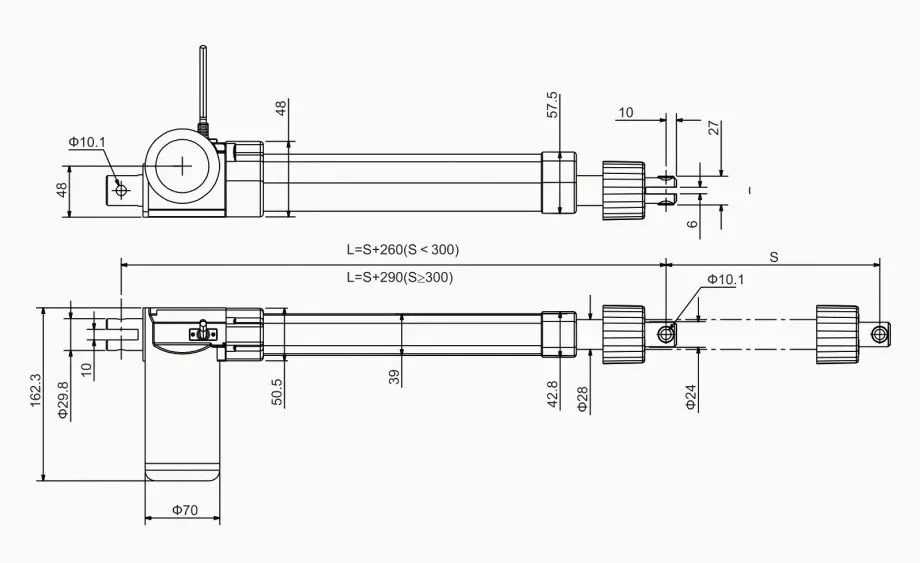

NKLA15 Dimensions
