6000N medical bed linear actuator
6000N electric linear actuator
Introduction
NKLA3 heavy duty linear actuator is for medical bed , furniture field like sofa, elderly chair, lazy chair, foot bath chair, home bed, beauty bed, massage chair, massage bed, TV rack.
Features
- Quiet and powerful design
- Up to 8000N load capacity
- Idea for homecare and medical market
- Color: Gray/black
- IP grade：IP54
- Stroke length：8000N：50-400mm；
- Installation dimensions: L=S+175(Lmin=325)； L=S+195(S≥400)；
- Noise level: ≤50dB, ( environmental noise≤40dB)
- Reed switch: optional
- Weight: About 2kg (different stroke length and installation dimensions with different weight )
- Static bending moment: lateral load are not allowed.

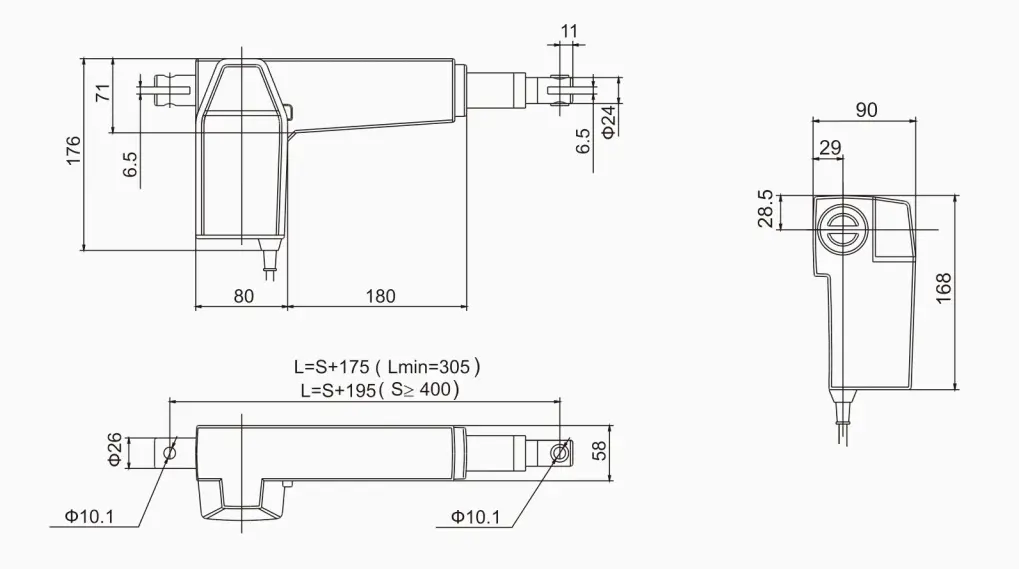

NKLA3 Dimensions
