Introduction
NKLA4 mini industry linear actuator designed for industrial Technology field: door opener, window opener, sweeper, agricultural harvester, yacht, car, stage .
NKLA4 is our fundamental linear actuator making it an ideal choice for many projects. This electric actuator is an optimal choice when a high force, low current actuator is required. Some examples of the key industries that use this cost-effective actuator solution include the automotive , home automation , and medical industries.
Features
- Basic and economic design
- 24V DC permanent magnet motor
- Thrust up to 6000 N in push and up to 4000 N in pull
- Color: gray or black
- Standard protection class: IP43
- Aluminium-Alloy outer tube and inner tube, beautiful and corrosion resistant
- Low noise; The average noise level is lower than 48dB (ambient noise is less than 40dB).
- Built-in electronic limit switches
- High-strength front and back
| Max. load push(N) | 6000 | 4000 | 3000 | 2000 | 1000 | 750 |
| Max. load pull(N) | 4000 | 4000 | 3000 | 2000 | 1000 | 750 |
| Static Load push*(N) | 6000 | 4000 | 3000 | 2000 | 1000 | 750 |
| Static Load pull*(N) | 4000 | 4000 | 3000 | 2000 | 1000 | 750 |
| Input(VDC) | 24/12 | |||||
| Speed at Full Load(mm/s) | 3 | 4 | 6 | 9 | 20 | 25 |
| Stroke Length(mm) | 100~400 (option;400 ) | |||||
| Mounting position | H type、V type,45° type | |||||
| Colour | Black or Grey | |||||
| Limit Switch | Built-in | |||||
| Overload Protection | Yes | |||||
| Duty cycle | 10%, max 2min. continuous use | |||||
| IP Grade | IP43 | |||||
| Optional features | Hall sensor option | |||||
| Reed switch option | ||||||
| Only push option | ||||||
| Relay free option | ||||||

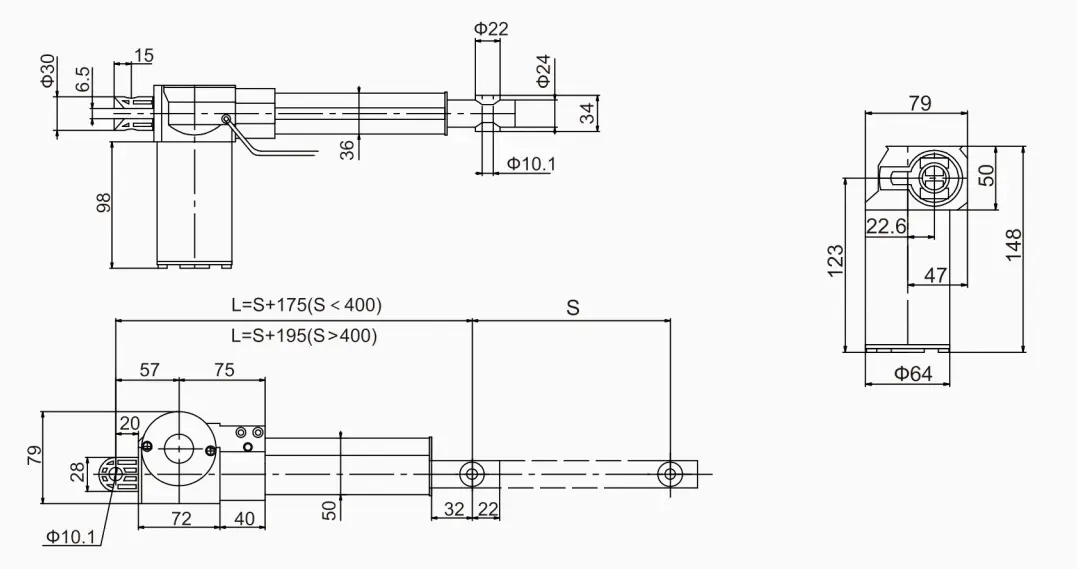

NKLA4 Dimensions
