feedback linear actuator with potentiometer
1200N mini electric actuator
Introduction
NKLA26 dual actuators are divided into home and medical versions according to the version used. The home version has more features, emphasizing convenience and intelligence, and the medical version has higher protection performance, emphasizing performance and durability.
6000n dual motor linear actuator is a highly versatile and efficient tool that can be used in a variety of applications, including electric sofas. Its many advantages make it an excellent choice for anyone looking to enhance the comfort and convenience of their seating solutions.
One of the key benefits of the 6000n dual motor linear actuator is its ability to provide incredibly smooth and reliable motion. The dual motor system ensures that the actuator operates with maximum precision and accuracy, allowing for smooth and effortless movement. This makes it ideal for use in electric sofas, where comfort and ease of use are essential.
Features
1.Max load thrust up to 2*6000N
2.Color: light gray or black
3.IP grade:IPX4
4.Input Voltage:100VAC～240VAC
5.Backrest stroke:Max.87mm
6.Footrest stroke:Max.69mm
7.Single motion noise level:≤50dB (ambient level≤40dB)
8.Linkage motion noise level:≤53dB (ambient level≤40dB)
9.Electrical limit switches: built-in
10. RF remote or wired hand control for option .
| Dynamic Load Push(N) | 6000 |
| Static Load Push*（N） | 6000 |
| Input（VAC） | 100V ~240V AC |
| Backrest stroke | max 87mm |
| Footrest stroke | max 69mm |
| Colour | white /black |
| Limit Switch | Build-in |
| Duty Cycle | 10%. max 2min. continuous use |
| IP Grade | IPx4 |
| Operating Temperature | +5℃~ +40℃ |

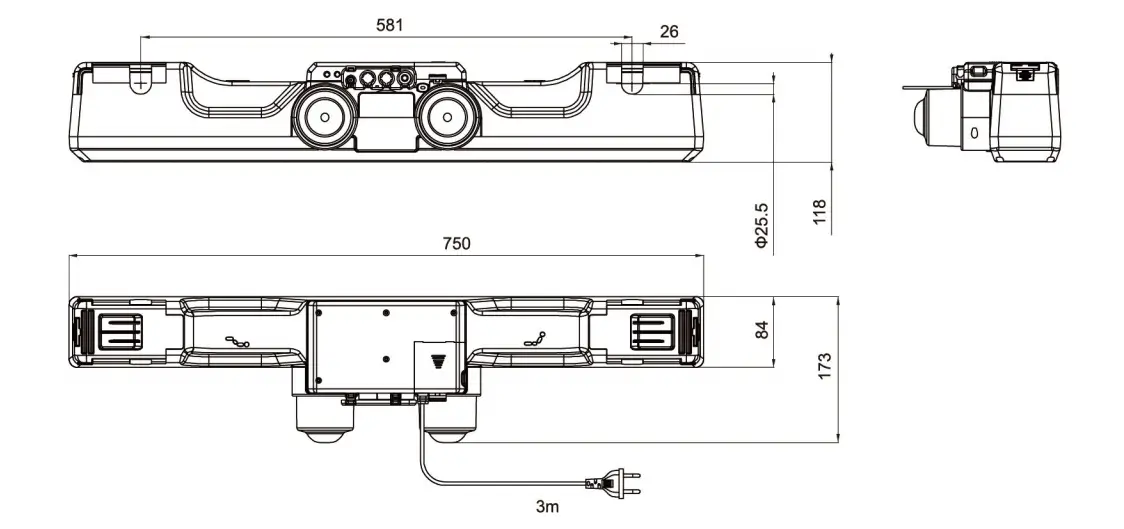

NKLA26 Dimensions
