Introduction

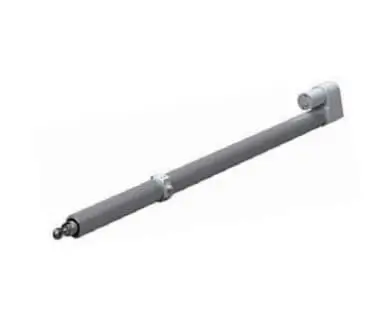

load 5000n solar tracker linear actuator nkla56 actuator 12v, 24v dc heavy duty load 5000n solar tracker linear actuator 12-volt heavy duty – 18″ 750lbs, 24″ 1250lbs solar tracker
for solar tracker system, 5000n maximum load capacity and the max. static load up to 20000n, default 400mm stroke, other strokes are customizable. IP65 protection grade, duty cycle of 10%, more reliable in the long term.
load 5000n solar tracker linear actuator is a small and compact unit, 12 volt / 24-volt dc voltage, 300mm, 400mm 450mm…strokes customized. with strong stability, strong structural design, waterproof and dust-proof, suitable for harsh environments.
NAKIN’s 18″ Limit switches are pre-installed in the actuator. The Linear Actuator will stop moving after it extends 24 inches even if the solar tracking electronics tell the actuator to keep moving.
This solar tracker linear actuator is easy with 1500 watts of solar panels. If you are going to use the NAKIN Actuator on a solar tracker, Please contact our engineers.
Features
- Stroke Length: 50~1500mm
- Color: Silver Grey
- Limit Switch: option
- Duty Cycle: 25%, max 2min continuous use
- IP Grade: IP65
- Operating Temperature: -20°C~+60°C
- For solar tracking
| Model | NKLA56 |
| Dynamic Load push(N) | 5000 |
| Dynamic Load pull(N) | 20000 |
| lnput(VDC) | 12/24/36 |
| Speed at Full Load(mm/s) | 3.7 |

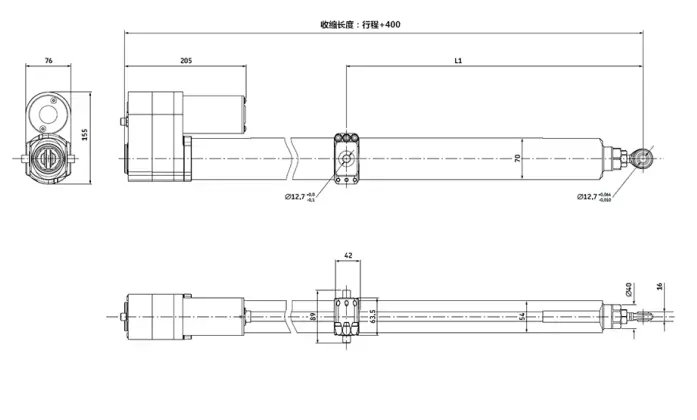

NKLA56 Dimensions
