Introduction
This type of compact-design and lightweight product is made of aluminum. It could stop itself after stroke(customized size) ends under the control of internal micro switch and dc motor gear -ratio box .It is easy and convenient to install and operate .for this characters. It replaces traditional hydraulic and air pressure in many aspects like lifting back of seat of airplane, ship and vehicle, medical and fire equipment, etc.
Features
- Max load:3500N
- Duty cycle:20%(high-speed condition 10%)
- Max static load:5000N
- Ambient temperature: -40°C~+65°C
- Aluminium alloy shell and push rod
- IP Grade: IP54 or IP65
- 12,24,36V or 48VDC
- Internal micro switch
- Powder metallurgy gear
- Durable
- Optional :Copper nut
| Product name | NKLA22B linear actuator linearantrieb actuador lineal lineaire actuator | |||
| Load force(N) | 3500N | 3000N | 2500N | 1000N |
| Full load speed(mm/s) | 3 | 5 | 8 | 20 |
| Stroke length (mm) | 50mm~600mm (option>600) | |||
| Retracted length(mm) (mounting length ) |
Stroke +120mm | |||
| IP grade | IP54/IP65 | |||
| Duty cycle | 20% , max 4 min. continuous use | |||
| Limit Switches | Built in | |||
| Color | Black | |||
| Option Function | Hall sensor /potentiometer | |||

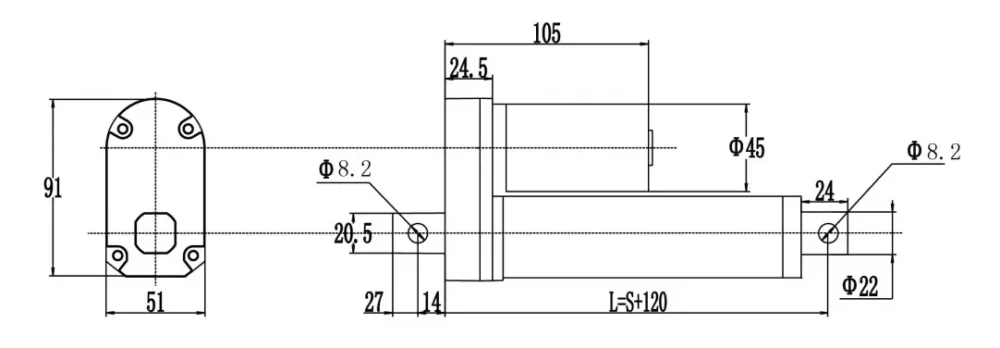

NKLA22B Dimensions
