Introduction
Making your home a smart home is becoming hugely popular and electric linear actuators are widely used to achieve this. These linear drives can be used in your home for automated windows, trap doors, hidden bookcase rooms and so on.
The micro linear actuator is small in size and can fit into tight spaces, making it a practical solution for small-scale projects.
The actuator can be easily programmed and controlled using various types of electronic devices, ensuring accurate and reliable performance.
3000n micro linear actuator is a versatile, efficient, and reliable device that has a wide range of applications across multiple industries. Its numerous advantages include high force output, compact size, precise control, durability, and easy installation.
The micro linear actuator is an ideal solution for robotics ,Medical equipment, Industrial automation applications that require high force output and precision control.
Features
- 24V DC permanent magnet motor
- Thrust up to 3000 N in push and up to 3000 N in pull
- 3. Standard protection class: IP54
- 4. Aluminum-Alloy outer tube and inner tube, beautiful and corrosion resistant
- 5. The average noise level is lower than 50dB(ambient noise is less than 50dB)
- 6. Built-in electronic limit switches
- 7. High-strength front and back fixtures
| Dynamic Load Push（N） | 1000 | 2000 | 3000 |
| Dynamic Load Pull（N） | 1000 | 2000 | 3000 |
| Static Load Push*（N） | 1200 | 2400 | 3500 |
| Static Load Pull*（N） | 1200 | 2400 | 3500 |
| Input（VDC） | 24/12 | ||
| Speed at Full Load（mm/s) | 14 | 8.5 | 5 |
| Stroke Length（mm） | 50-400 | 50-250 | |
| Colour | Silver | ||
| Limit Switch | Build-in | ||
| Overload Protection | Yes | ||
| Duty Cycle | 10%. max 2min. continuous use | ||
| IP Grade | IP54 | ||
| Operating Temperature | 0℃~50℃ | ||
| Optional Features | Hall sensor option | ||

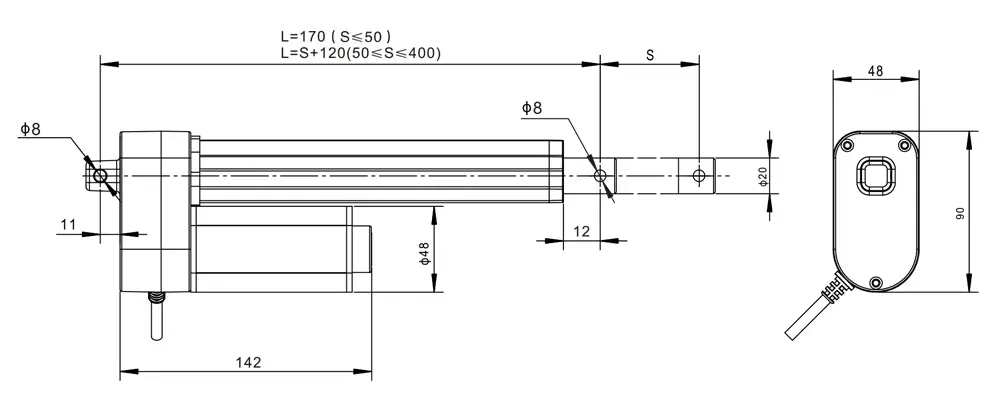

NKLA24 Dimensions
