Heavy Duty Electric Linear Actuator for solar
Introduction

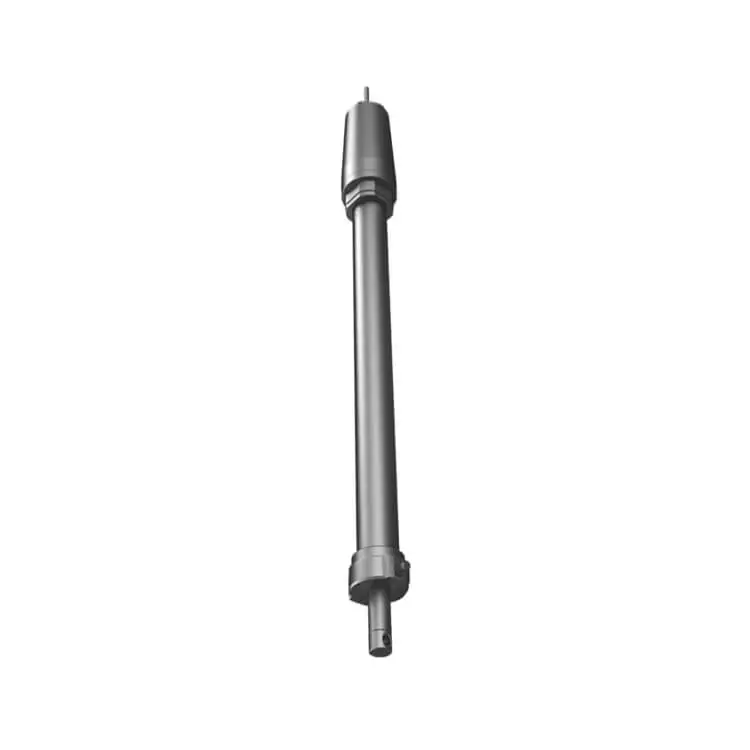

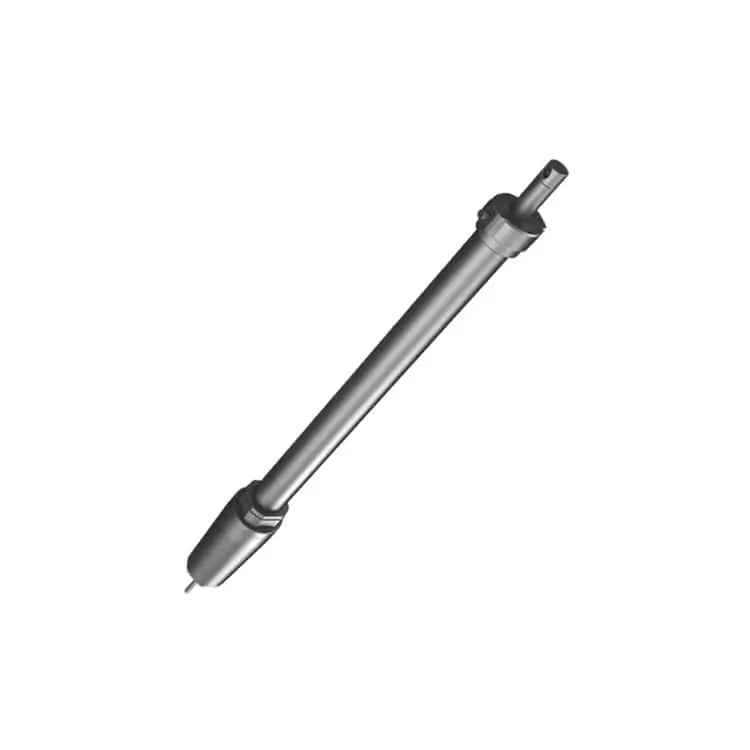

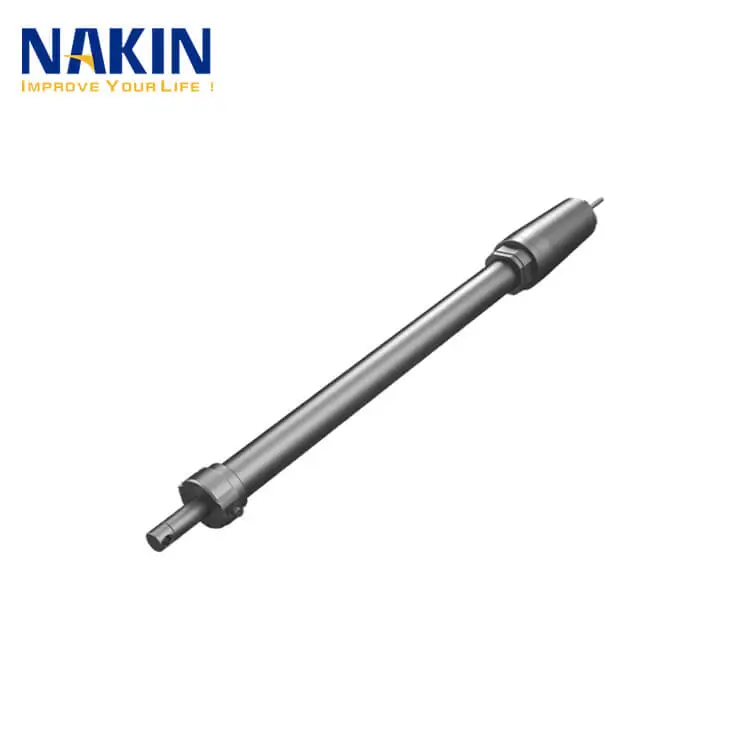

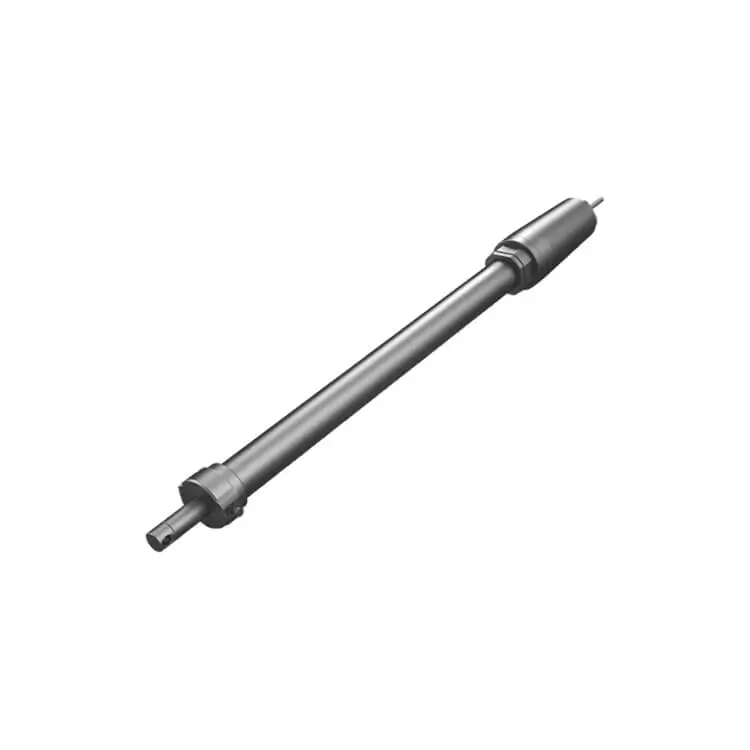

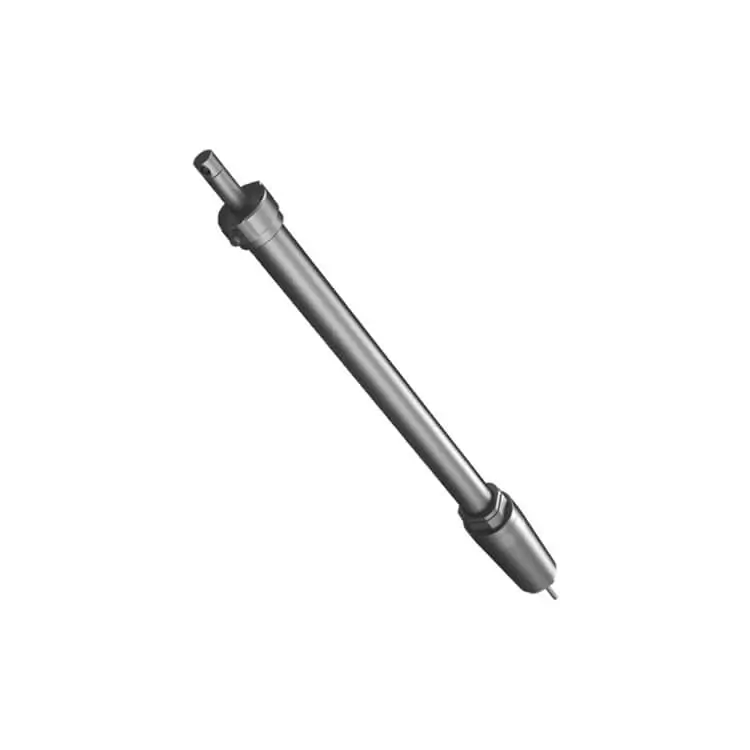

24v solar electric actuators with mounting bracket NKLA104 actuator Widely used: In DIY pet feeders, Marine, Automotive, Medical Devices and Engineering Industries, massage sofas, recliners, TV lifters, lifting tables, electric window openers, etc. Easy setup & Safe: Quickly mounted by using brackets, and easy connect the actuator to your 12-volt safe power supply.
24v solar electric actuators with mounting bracket NKLA104 The package included 1 linear actuator. 24vdc linear actuator offers power and durability for applications that require dynamic linear motion and versatility. One of our strongest units and can withstand harsh environments.
24v solar electric actuators with mounting bracket NKLA104 The stainless-steel shaft accompanied by metal gears allows it to push and pull up to 2000 lbs. The environmental protection rating provides a versatile unit able to withstand dust, water, and harsh environments. The heavy-duty actuator is the only unit in our line of products with adjustable limit switches, which allows customers full control over where to start and stop the actuator. Built-in adjustable (up to 24″ stroke length).
Features
- Stroke Length: 100~600mm (Customized acceptable)
- Color: Black
- Overload Protection: Set in the control box
- Motor option: Stepper motor
- Screw: Ball screw
- IP Grade: IP66
- Operating Temperature: -35°C~+65°
- High precise of positioning and repositioning;
- Applicable to industrial solar energy line.
| Model | NKLA104 | NKLA104 |
| Dynamic Load push(N) | 850 | 3500 |
| Dynamic Load pull(N) | 850 | 3500 |
| lnput(VDC) | 24 | 24 |
| Speed at Full Load(mm/s) | 4 | 1.2 |

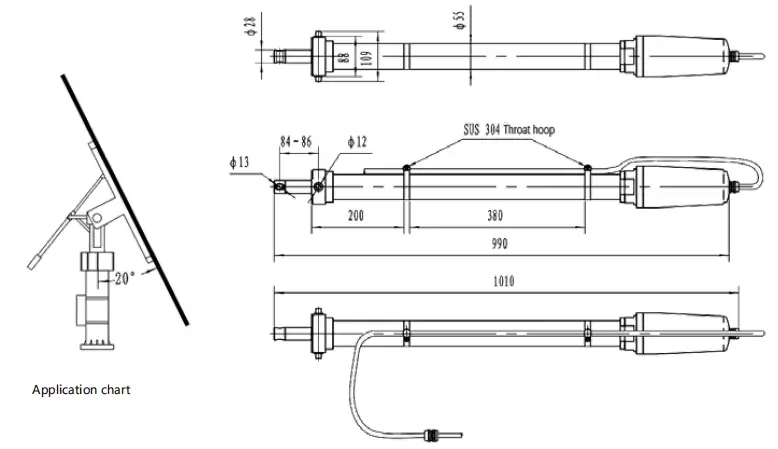

NKLA104 Dimensions
