Introduction

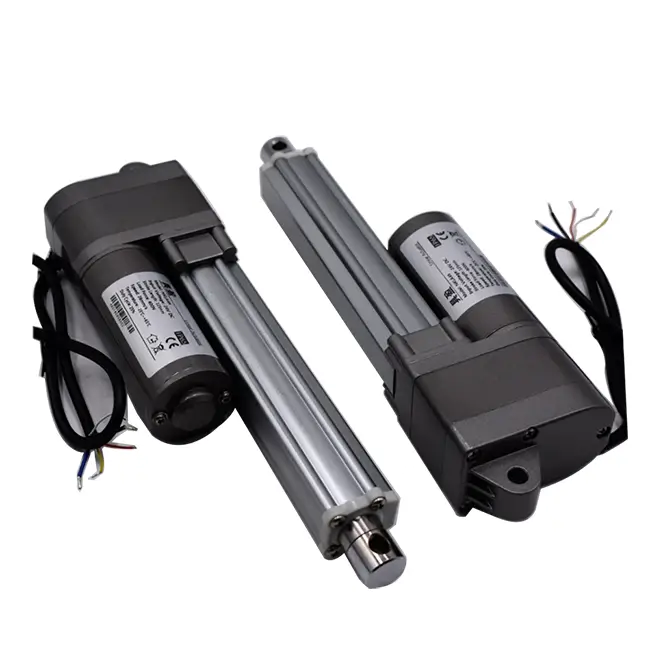

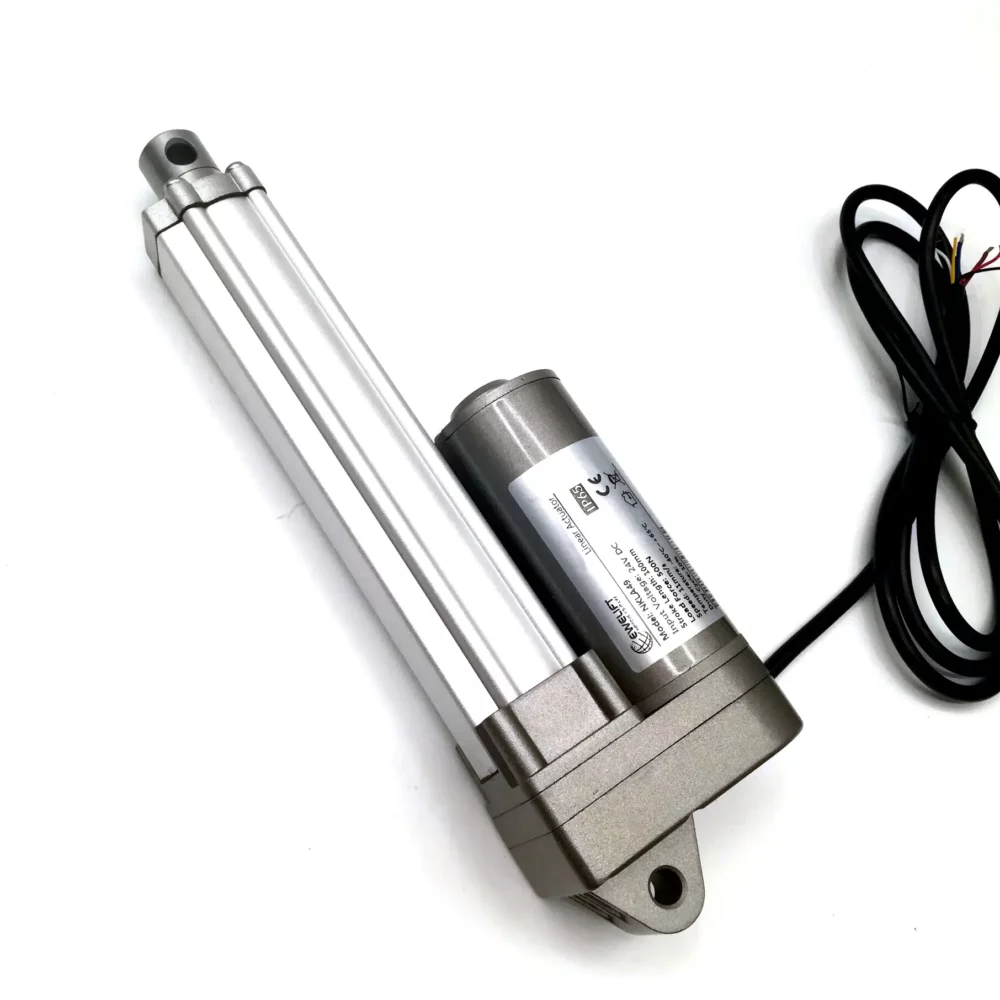

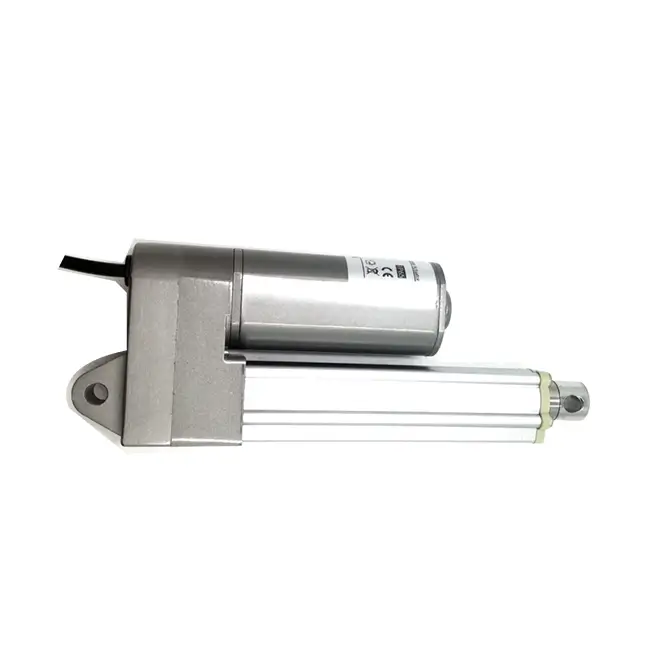

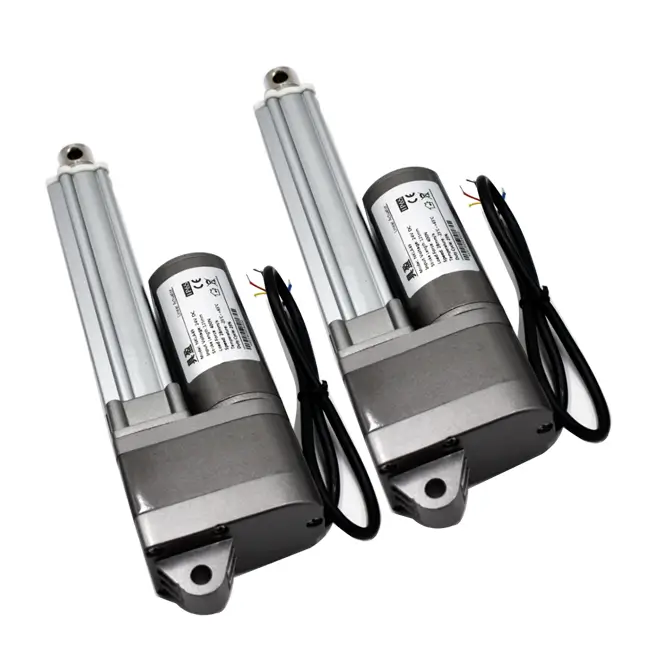

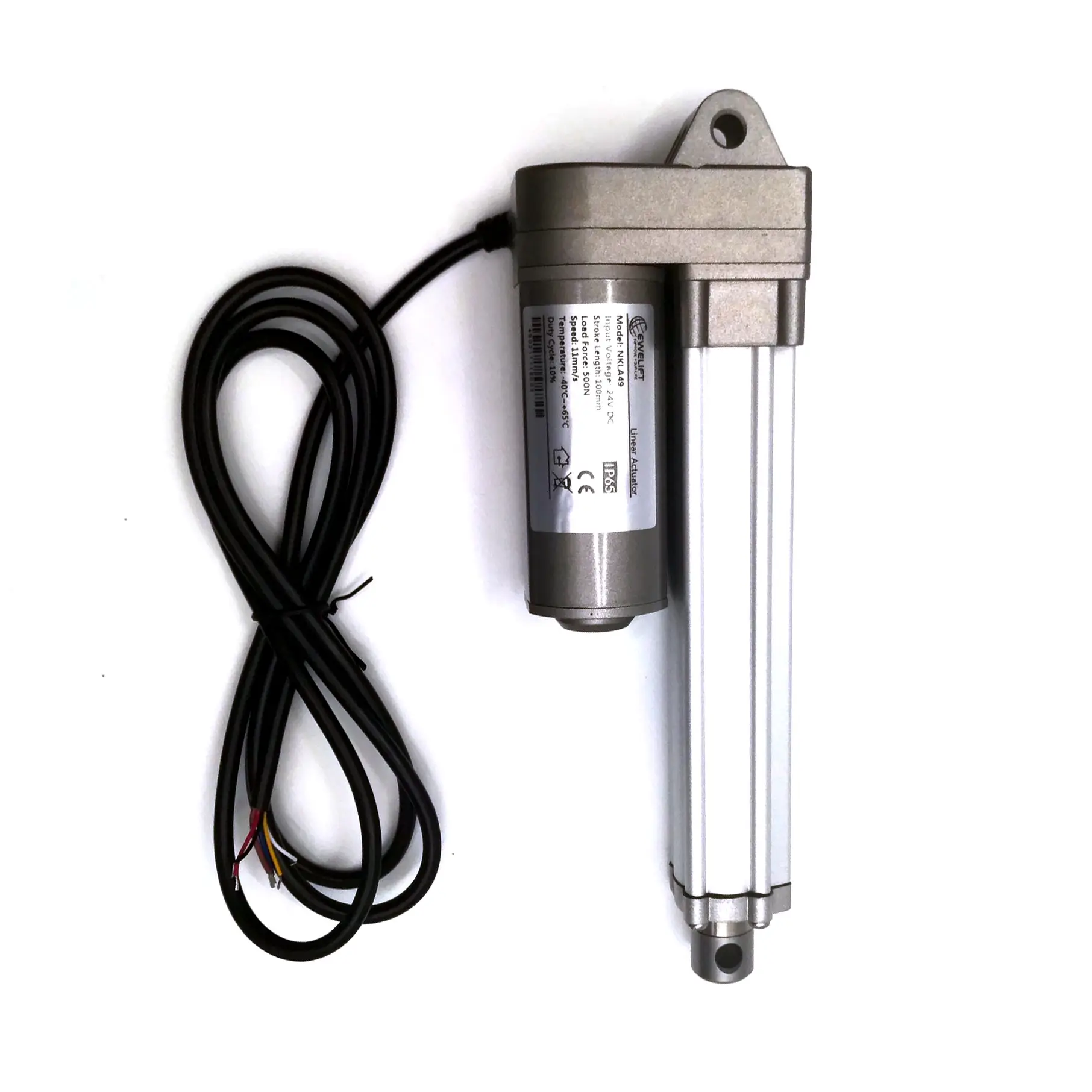

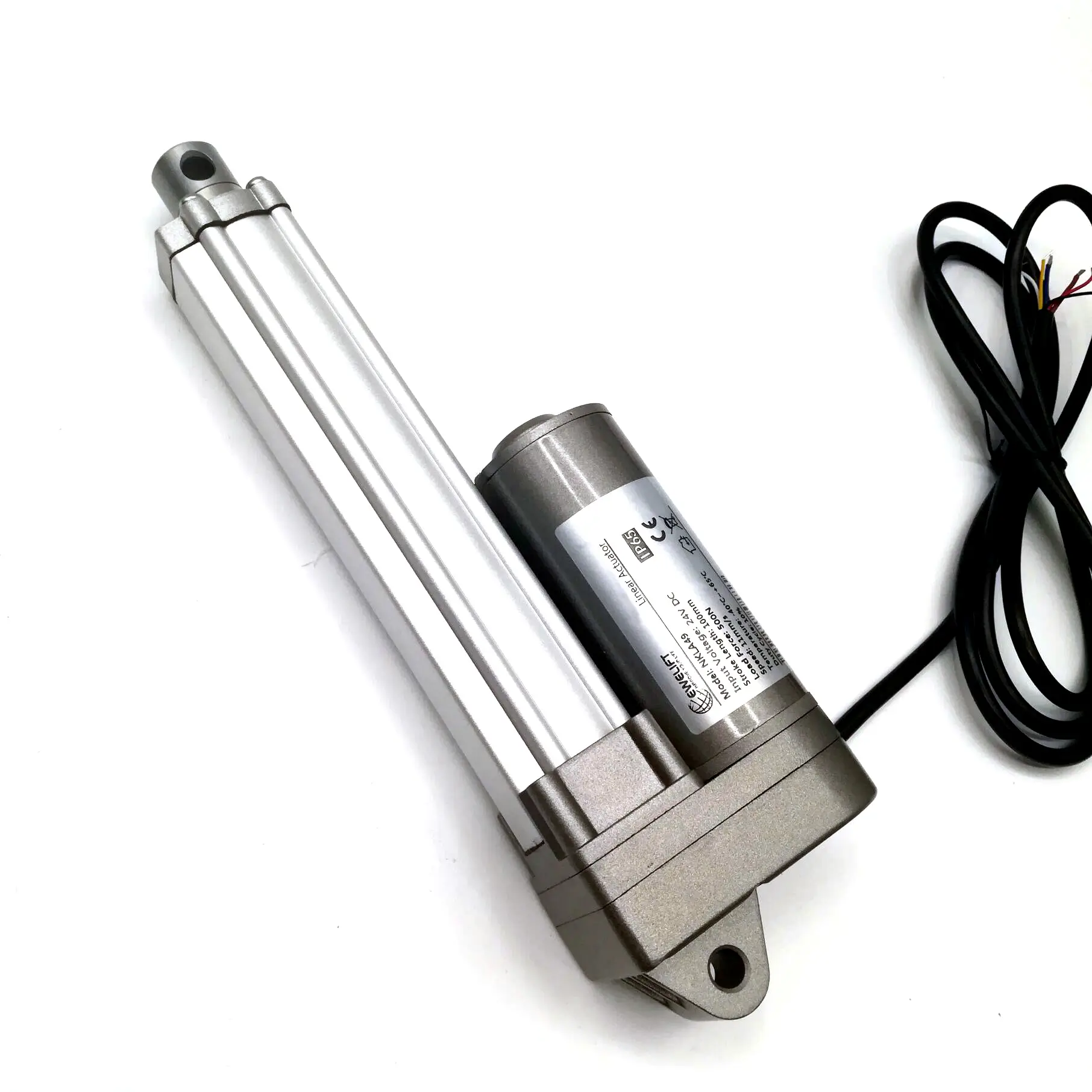

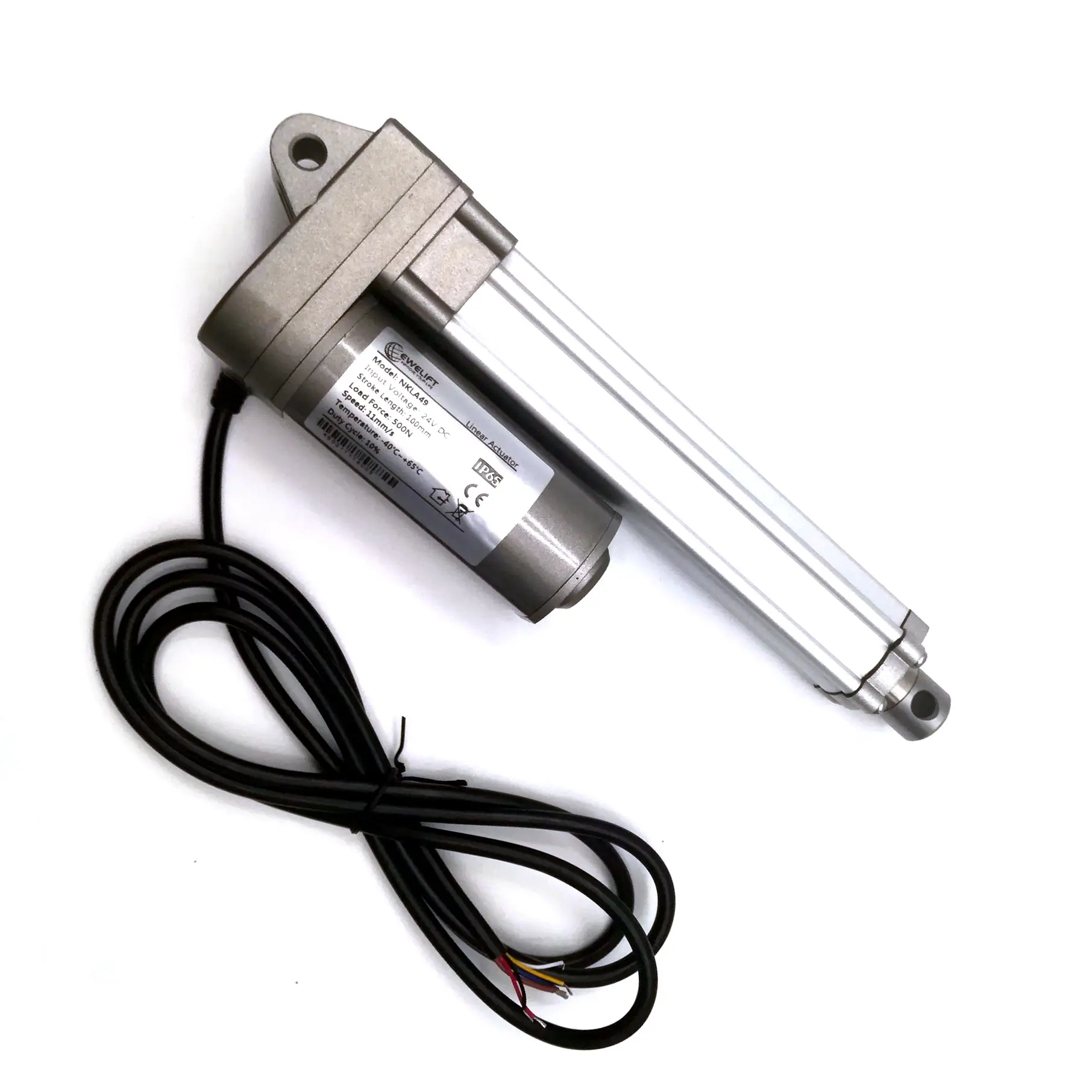

NKLA49 feedback linear actuator are constructed using an anodized aluminum shaft, metal gearbox, brass screw and steel ball bearings. These quality linear drives are not only built to last, but will look great on your models. electric waterproof actuator is Widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, chicken coop door and so on.
NKLA49 mini industrial linear actuator enhances the compact features of our linear actuator with a stainless steel rod, high force, and an increased environmental protection rating. At max load, the low current draw allows this unit to easily integrate into most low voltage control systems.
Features
1.DC mini permanent magnet motor .
2.speed 5, 10,15mm/s (optional)
3.maximum load 2000N.
4.Temperature range : -40°C~65°C
5.Duty cycle : 25% with full load .
6.build in limit switch .
7.IP grade: IP65
8.potentiometer and hall sensor for option
| Product name | NKLA49 linear actuator | ||||||||
| Load force(N) | 2000N | 1600N | 1200N | 800N | 700N | 600N | 400N | 300N | 200N |
| NO load speed(mm/s) | 4 | 5.5 | 8 | 8 | 14 | 11 | 22 | 30 | 45 |
| Stroke length (mm) | 50mm~600mm (option>600) | ||||||||
| Retracted length(mm) (mounting length ) |
Stroke +108mm (S<300) , Stroke +120mm (300<S<500) , Stroke +130mm (S≥500) | ||||||||
| IP grade | IP65/IP66 | ||||||||
| Duty cycle | 25% , max 4 min. continuous use | ||||||||
| Limit Switches | Built in | ||||||||
| Color | Silver | ||||||||
| Option Function | Potentiometer or hall sensor | ||||||||

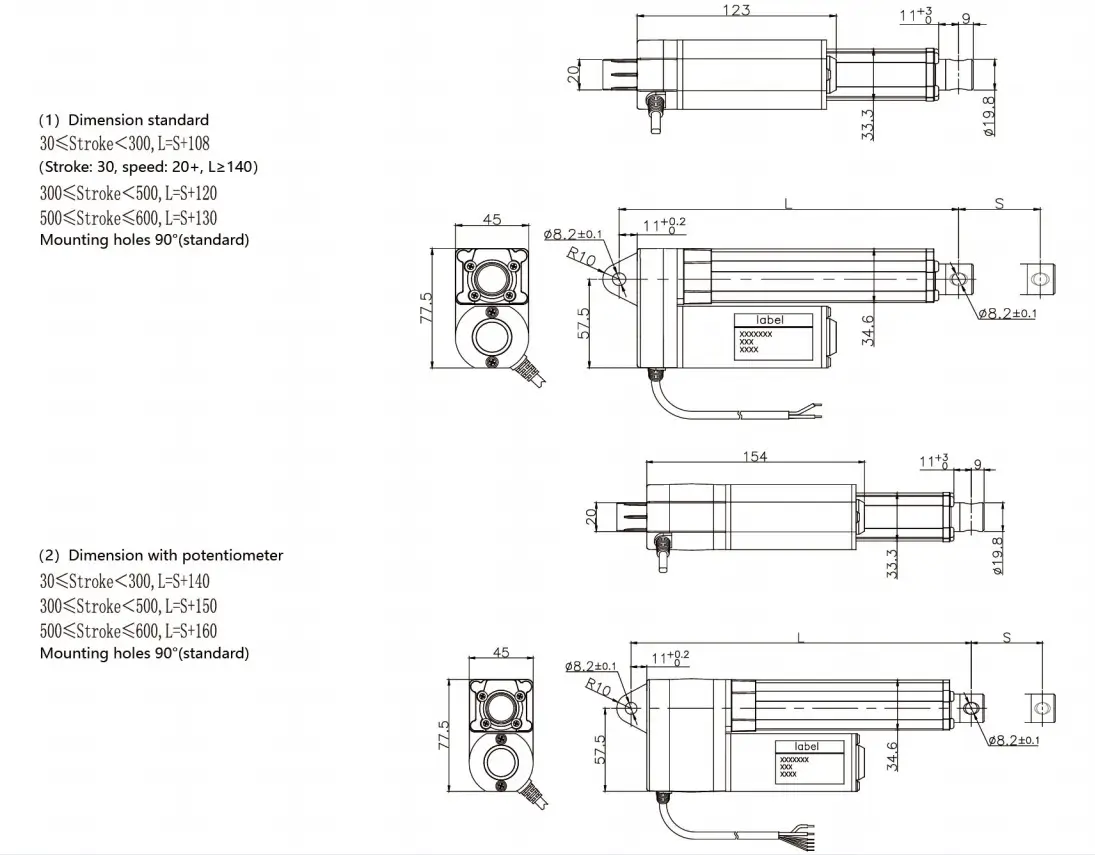

NKLA49 Dimensions
