2000n industrial linear actuator with hall sensor potentiometer
fast speed tubular linear actuator
Introduction
NKLA45 heavy load tubular inline actuator is widely used, such as the antenna, hatch door and escalator of yacht, for the adjustment of antenna’ s angle, open of the hatch door, the up & down of escalator. Actuator make the yacht more intelligent as it is easy to install, convenient to use with its compact structure, attractive appearance, low energy, low noise, waterproof and dustproof .
Its high load capacity of 20000N ensures that it can handle heavy loads with ease and without compromising its performance. This makes it ideal for use in solar tracking systems, where it is required to make continuous adjustments to the position of the solar panels to ensure optimal energy generation.
The tubular inline actuator is designed to be rugged and durable, with a strong outer casing that can withstand harsh environmental conditions. This makes it suitable for use in outdoor installations, where it may be exposed to extreme temperatures, moisture, and other environmental factors
Features
1.DC mini permanent magnet motor .
2.Speed 2~12mm/s (optional)
3.maximum load 20000N.
4.Temperature range : -45°C~+75°C
5.Duty cycle : 10% with full load .
6.build in limit switch .
7.IP grade: IP66
8.hall sensor for option
| Product name | NKLA45 tubular linear actuator | ||||||
| Load force(N) | 20000N | 15000N | 12000N | 7500N | 4500N | 2500N | 1500N |
| NO load speed(mm/s) | 2.2 | 3 | 4.2 | 7.9 | 11 | 22 | 32.8 |
| Stroke length (mm) | 50mm~900mm | ||||||
| Retracted length(mm) (mounting length ) |
Stroke +500mm | ||||||
| IP grade | IP66 | ||||||
| Duty cycle | 20% , max 4 min. continuous use | ||||||
| Limit Switches | Built in | ||||||
| Color | Black | ||||||

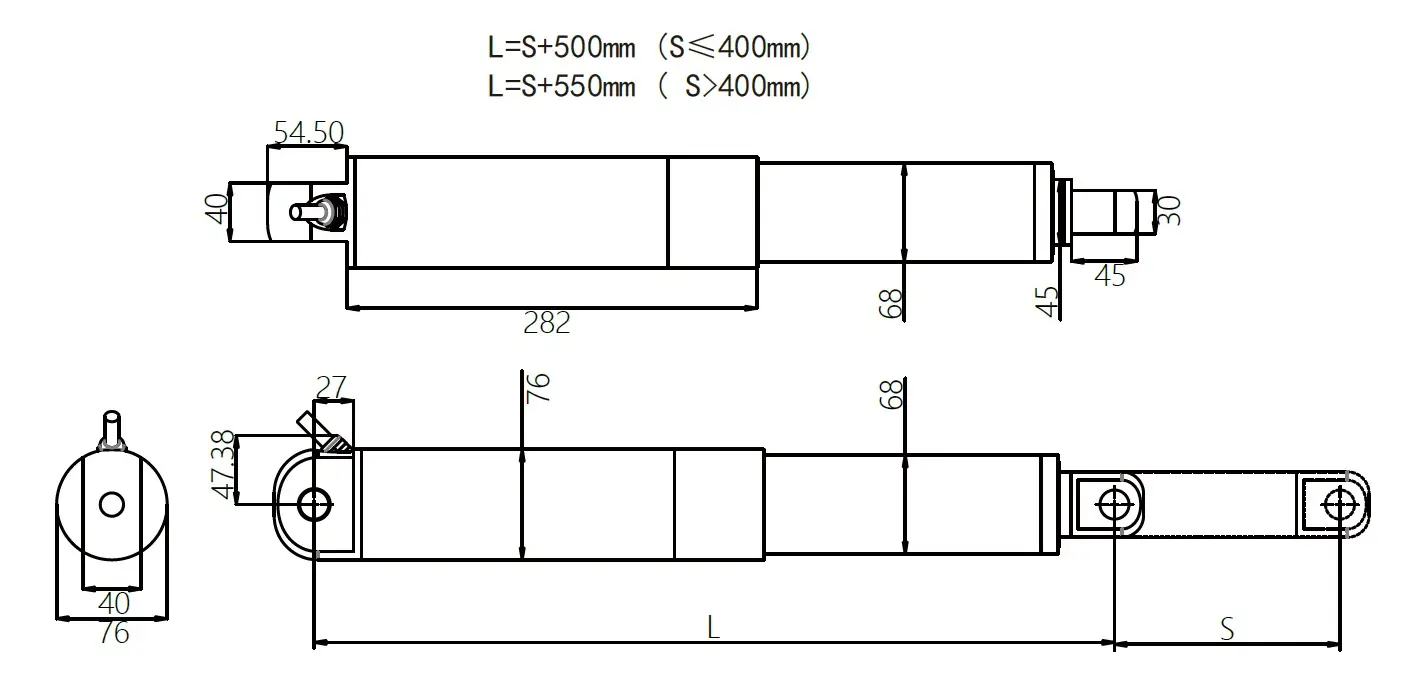

NKLA45 Dimensions
