Introduction

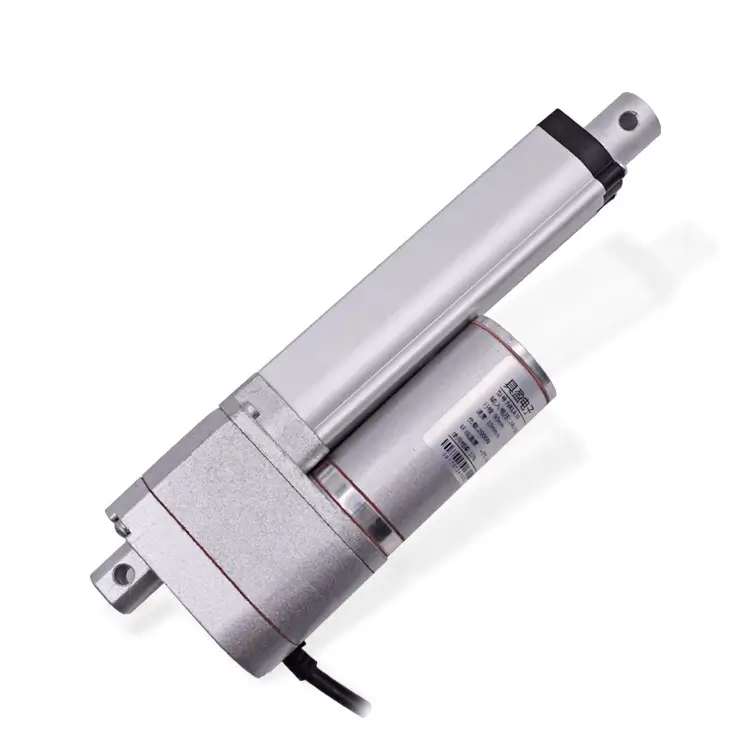

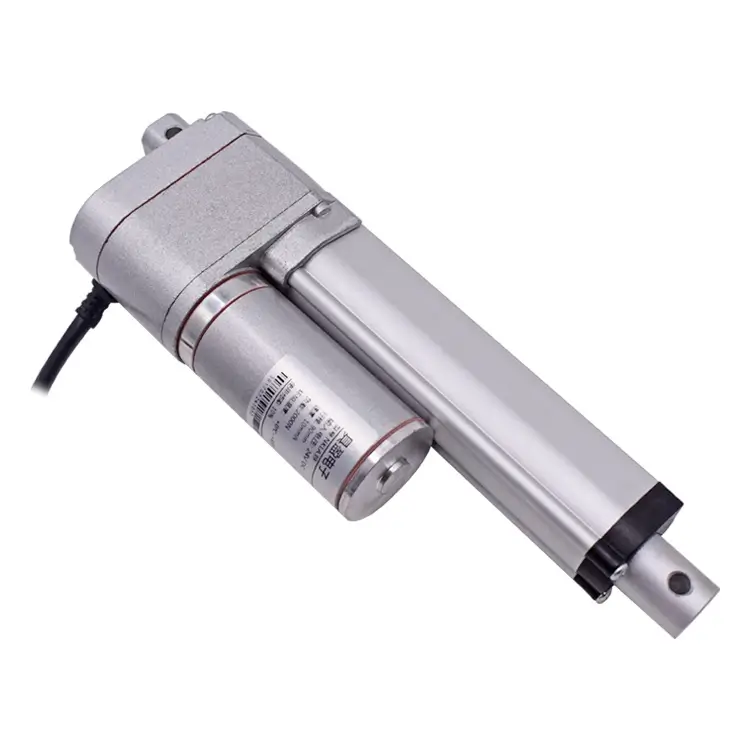

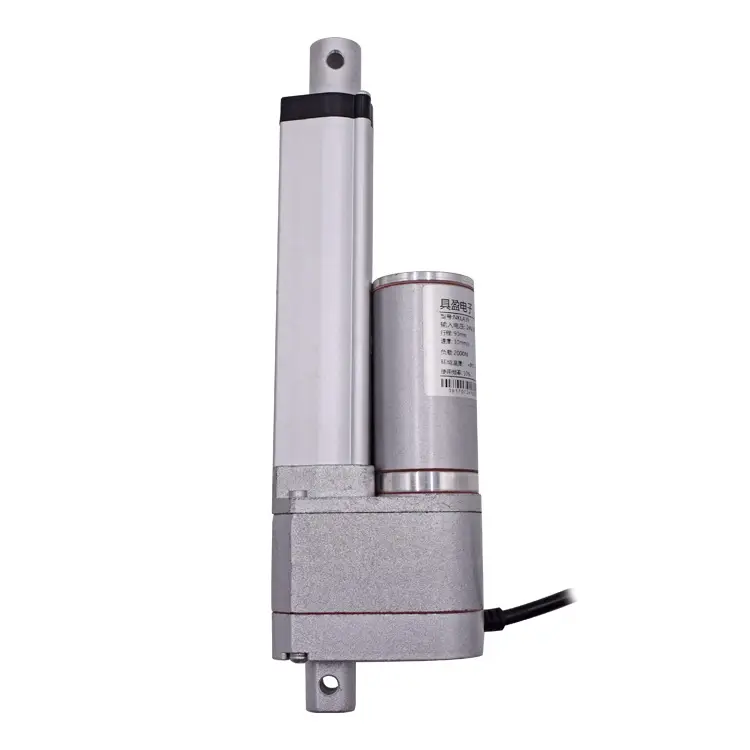

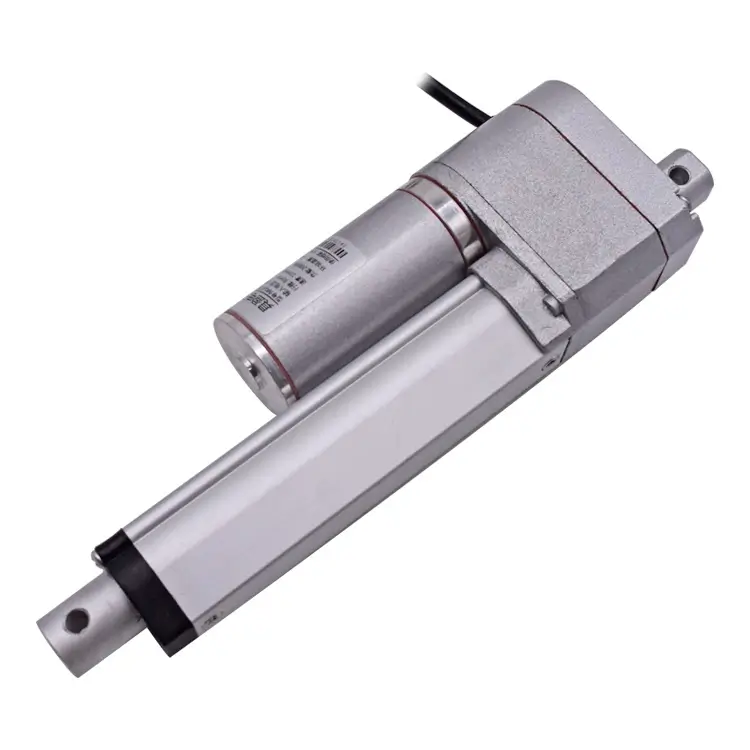

Small motor actuator with ACME screws,built-in Micro switch and an internal diode,can automatically stop and enables the change of direction by simply reversing the applied voltage polarity. stroke length can been customized. switches are not made to be adjustable. Inversely proportional to the speed and power. position feedback is possible .
Features
- Max load 1500N
- Duty cycle 20%(High-speed linear 10%)
- Max static force 2300N
- Operating temperature -26°C~+65°C
- Aluminium outer tube and stroke rod
- Protection IP54 or IP65
- Potentiometer:1K,5K,10K
- 12 or 24 or 36 48VDC
- Aluminium alloy housing
- Preset limit switches
| Product name | NKLA39 linear actuator | ||||||
| Load force(N) | 1500N | 1400N | 1200N | 1000N | 900N | 700N | 600N |
| NO load speed(mm/s) | 4 | 7 | 10 | 13 | 17 | 20 | 27 |
| Stroke length (mm) | 50mm~600mm (option>600) | ||||||
| Retracted length(mm) (mounting length ) |
Stroke +140mm | ||||||
| IP grade | IP54/IP65 | ||||||
| Duty cycle | 20% , max 4 min. continuous use | ||||||
| Limit Switches | Built in | ||||||
| Color | Black or silver | ||||||

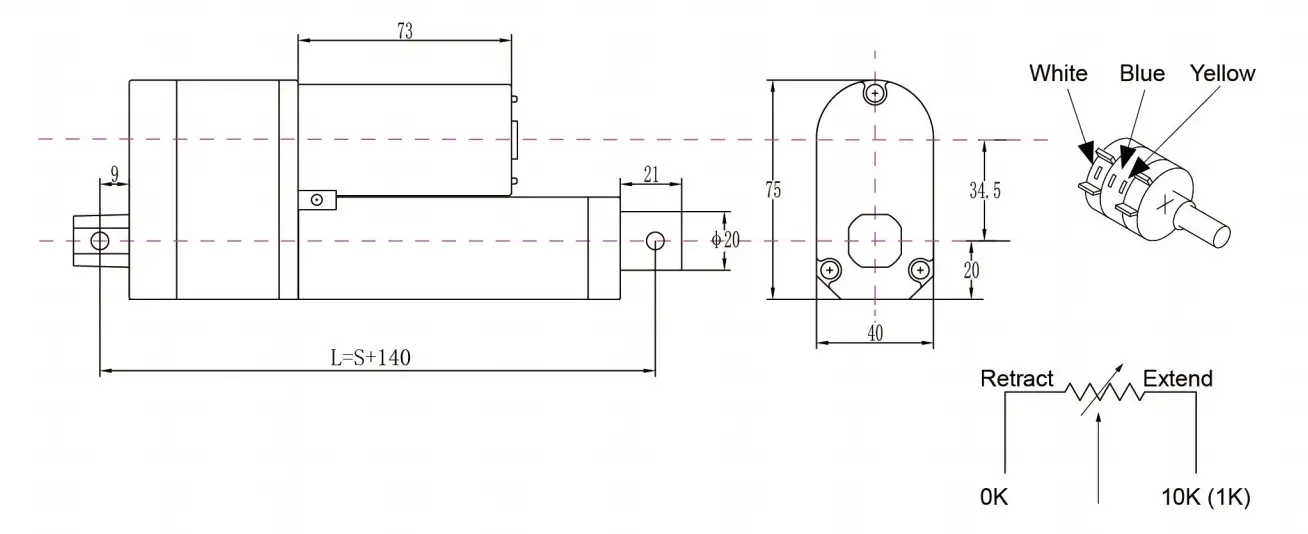

NKLA39 Dimensions
