Introduction

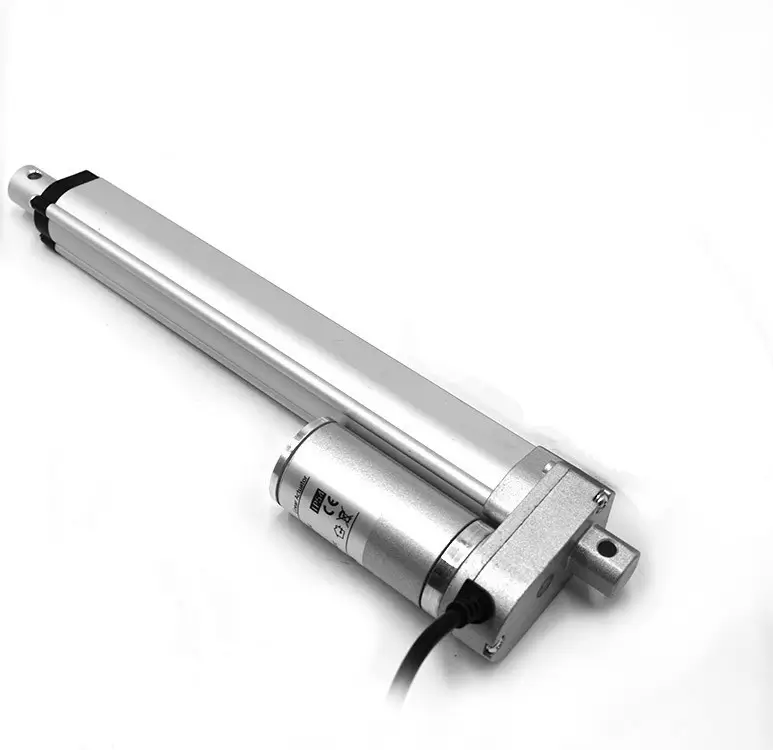

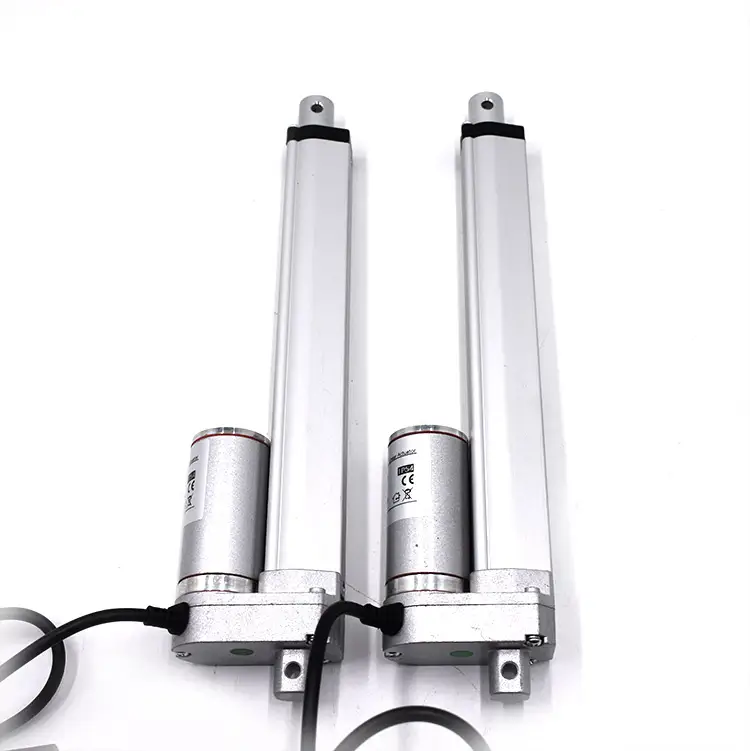

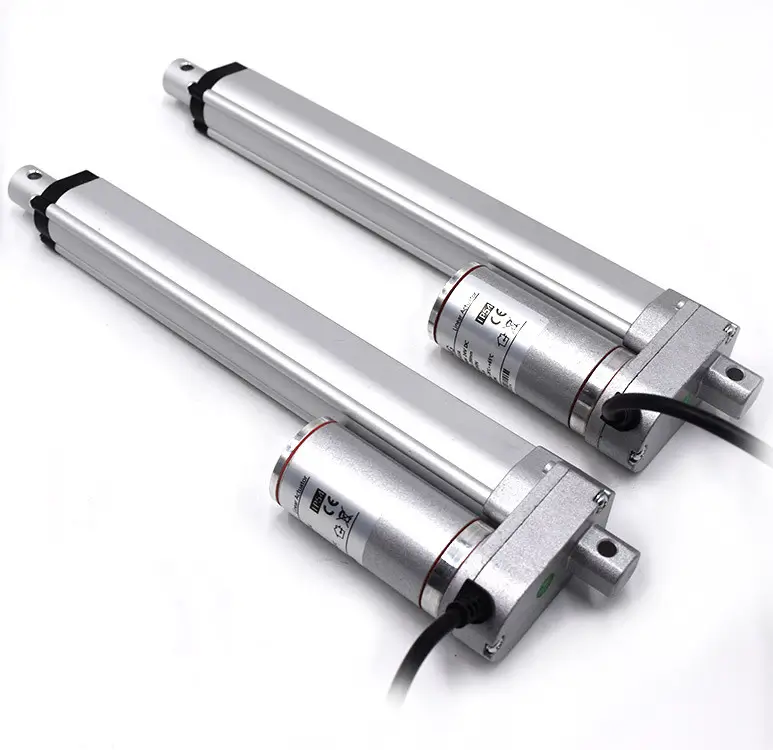

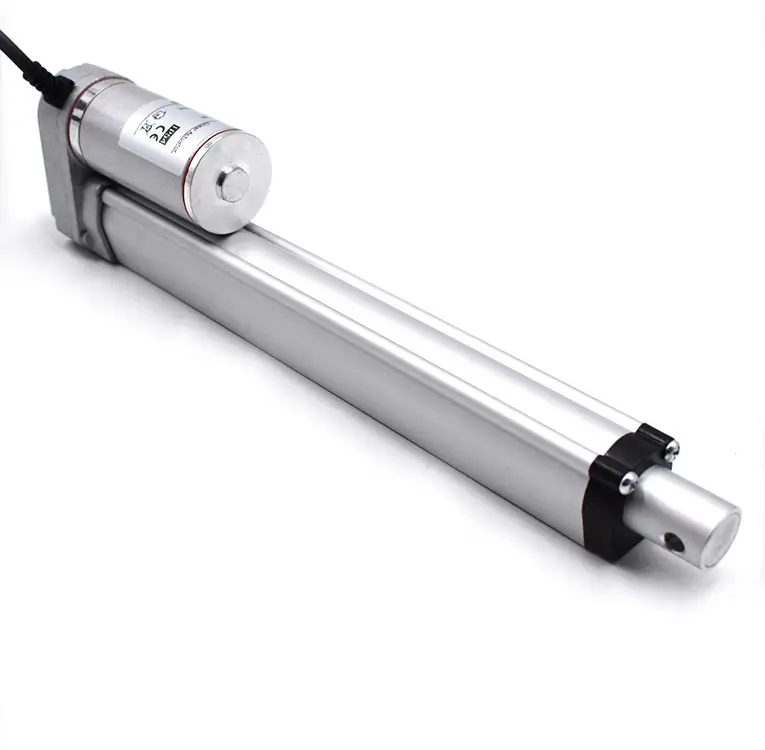

Small motor actuator with ACME screws,built-in Micro switch and an internal diode, can automatically stop and enables the change of direction by simply reversing the applied voltage polarity. stroke length can be customized. switches are not made to be adjustable. Inversely proportional to the speed and power.
Durability: Made from high-quality materials, the actuator can withstand tough conditions and is highly resistant to corrosion.
The actuator comes with an easy-to-use mounting system that allows for quick and convenient installation.
Features
- Max load 1500N
- Operating temperature -20°C~+65°C
- Aluminium outer tube and stroke rod
- Protection IP54 or IP65
- 12 or 24 or 36 or 48VDC
- Preset limit switches
- Powder metal gears
- Aluminium alloy housing
- Low price
- Robust
| Product name | NKLA22A linear actuator | |||||
| Load force(N) | 1500N | 1200N | 1000N | 900N | 700N | 600N |
| No load speed(mm/s) | 4 | 10 | 13 | 17 | 20 | 27 |
| Stroke length (mm) | 50mm~600mm (option>600) | |||||
| Retracted length(mm) (mounting length ) |
Stroke +105mm | |||||
| IP grade | IP54/IP65 | |||||
| Duty cycle | 10% , max 2 min. continuous use | |||||
| Limit Switches | Built in | |||||
| Color | Silver | |||||

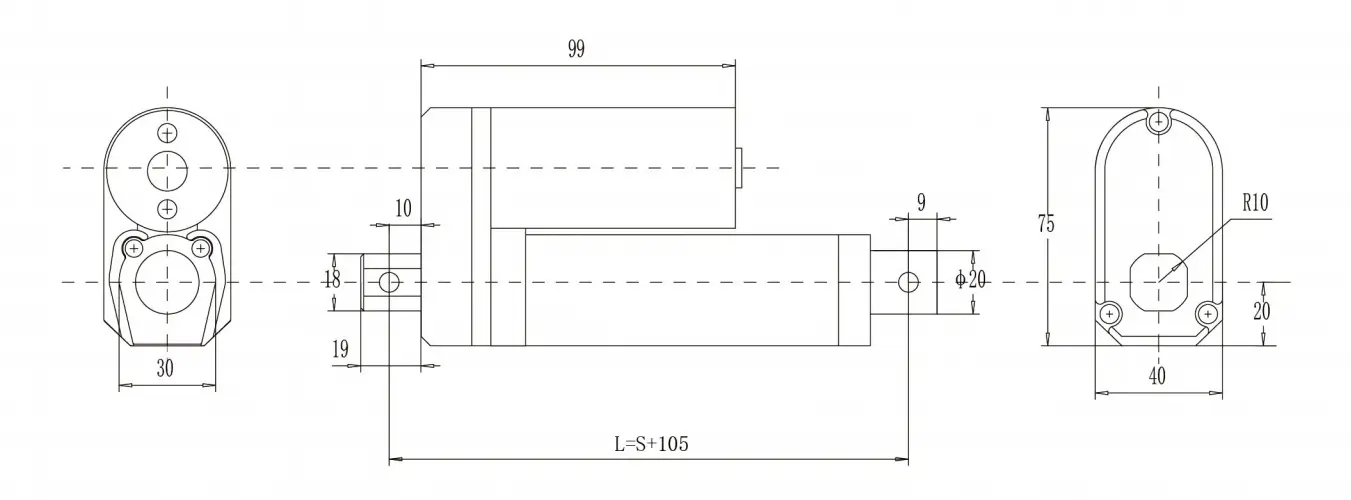

NKLA22A Dimensions
