Introduction
NKLA20 small linear actuator is a superior alternative to designing with awkward gears, motors, servos, and linkages .
NKLA20 micro linear actuator has the smallest footprint in our selection, making it ideal for those projects that require limited space and minimal force. The low current requirement makes implementation with existing systems seamless. The versatile nature of the micro actuator and its environmental-protection rating provides opportunities for integration across multiple applications and industries such as robot arms , food and beverages , general automation and home automation.
Features
- 12V safety voltage
- Thrust up to 20 N in push and up to 20 N in pull
- Speed :12mm/s
- Stroke : 10mm~300mm
- 5. Standard protection class: IP54/IP66
- 6. Aluminium-Alloy outer tube and inner tube, beautiful and corrosion resistant
- 7. The average noise level is lower than 60dB(ambient noise is less than 60dB).
- 8. Built-in electronic limit switches
- 9. High-strength front and back fixtures
| Dynamic Load Push(N) | 20 |
| Static Load Push*（N） | 20 |
| Input（VDC） | 12 |
| Speed at Full Load(mm/s) | 12 |
| Stroke Length（mm） | 10~300 |
| Colour | Black |
| Limit Switch | Build-in |
| Duty Cycle | 10%. max 2min. continuous use |
| IP Grade | IP54/IP66 |
| Operating Temperature | +5℃~ +40℃ |

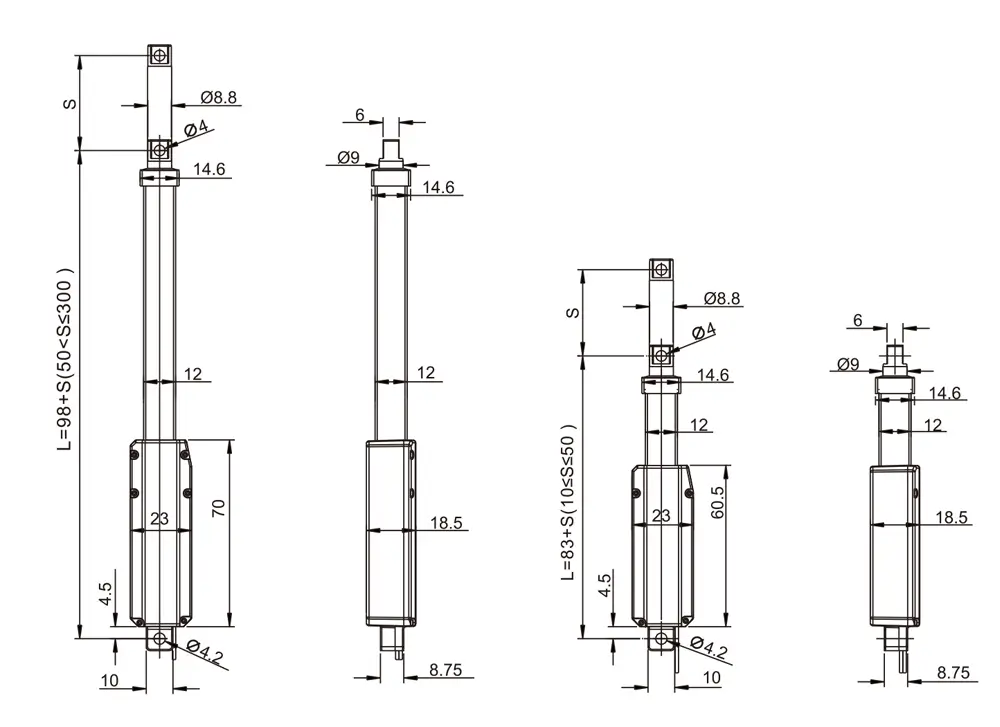

NKLA20 Dimensions
