Introduction
NKLA47 electric waterproof actuator is widely used in various industry equipment ,agricultural machinery, clean sweeping vehicles, ships, cargo , construction and other windows automatic control applications. Manufactured from aerospace-grade aluminum and built-in limit switches for automatic end of stroke stopping, these actuators provide zero maintenance for all your automation projects, making you the Automation Expert . It is designed to be durable, with a sturdy construction that can withstand harsh environments and frequent use. so the 1200N small linear actuator can be used in a wide range of applications, including furniture, healthcare equipment, automation, and engineering machinery. It is also popular in the automotive industry, particularly for electric vehicles, and in the marine industry for vessel steering systems.
Features
1.DC permanent magnet motor .
2.speed from 4mm/s to 65mm/s as requested .
3.maximum load 1200N.
4.Temperature range : -40°C~65°C
5.Duty cycle : 20% with full load in normal temperature .
6.build in limit switch .
7.IP grade: IP65
8.Other options: Potentiometer for position feedback
| Product name | NKLA47 linear actuator | |||||||||
| Load force(N) | 1200N | 1000N | 800N | 700N | 600N | 500N | 400N | 200N | 100N | 50N |
| Full load speed(mm/s) | 4 | 5 | 6.5 | 8.5 | 7 | 12 | 13.5 | 22 | 45 | 65 |
| Stroke length (mm) | 50mm~600mm (option>600) | |||||||||
| Retracted length(mm) (mounting length ) |
Stroke +105mm (S<300) , Stroke +120mm (300<S<500) , Stroke +130mm (S≥500) | |||||||||
| IP grade | IP65 | |||||||||
| Duty cycle | 20% , max 4 min. continuous use | |||||||||
| Limit Switches | Built in | |||||||||
| Color | Silver | |||||||||
| Option Function | Potentiometer | |||||||||

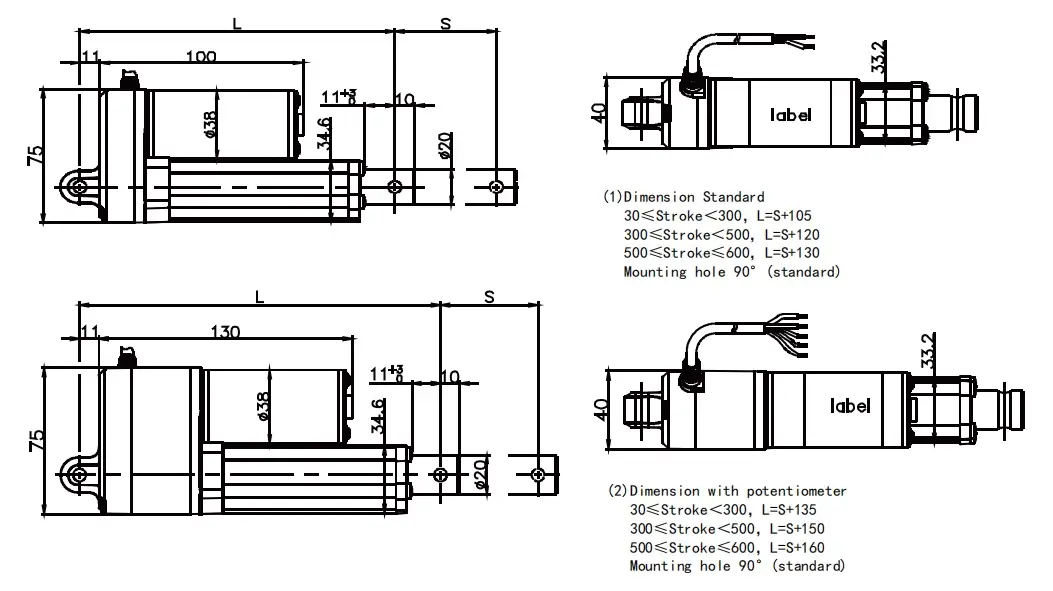

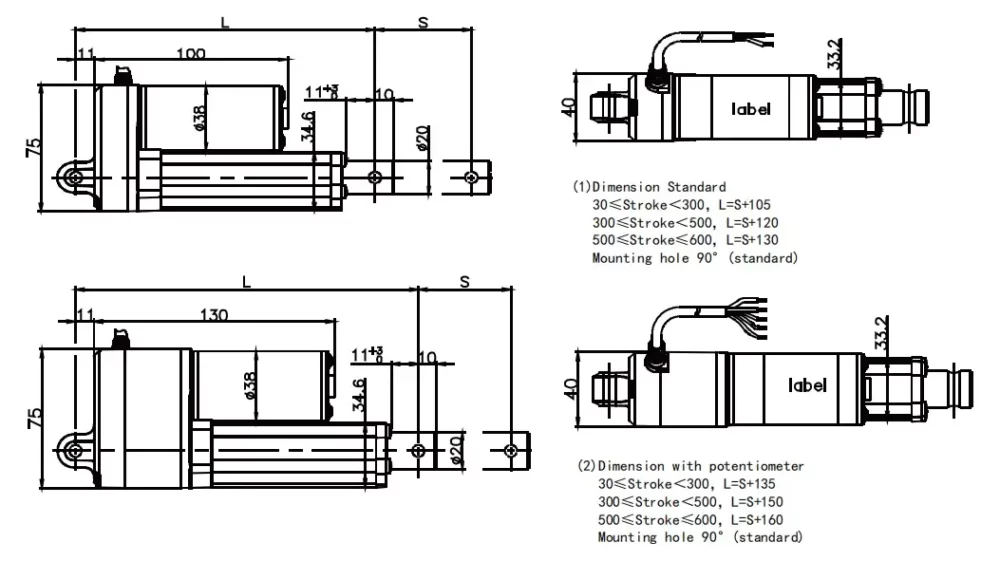

NKLA47 Dimensions
