IP54 6000N electric linear actuator
Introduction

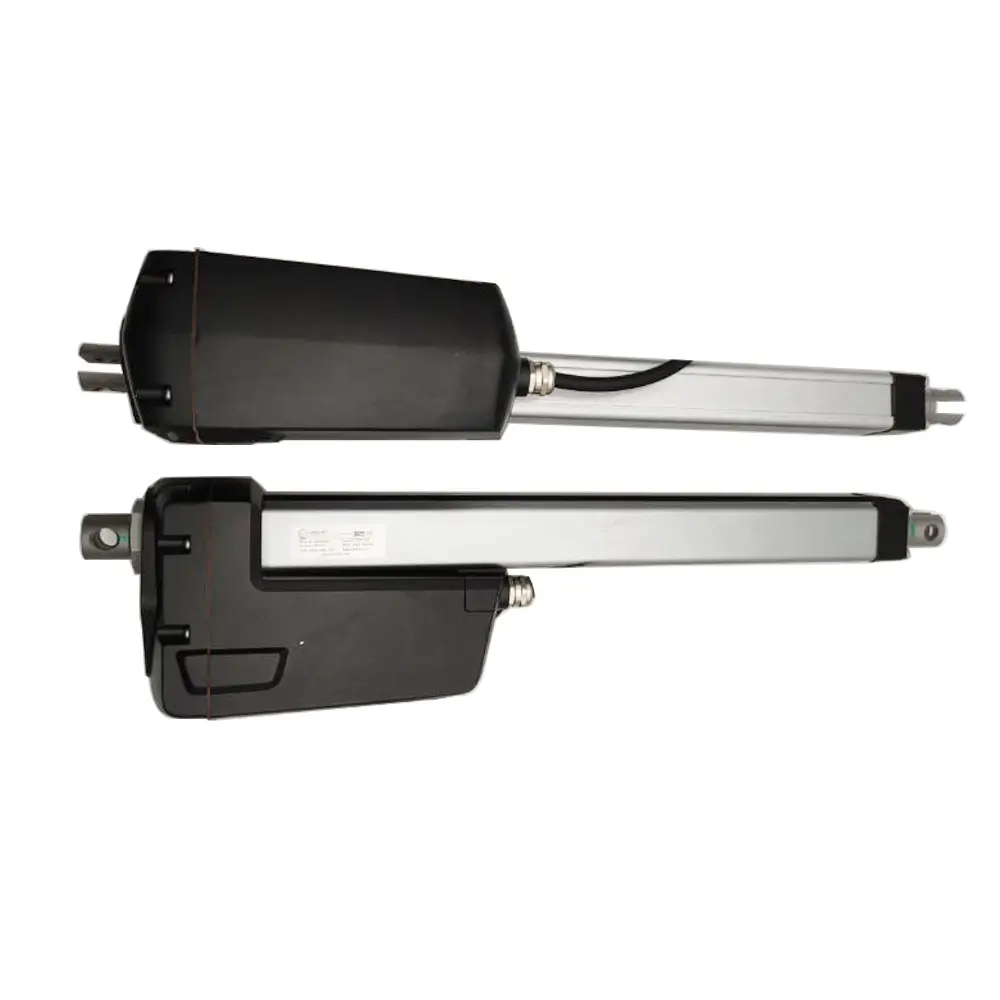

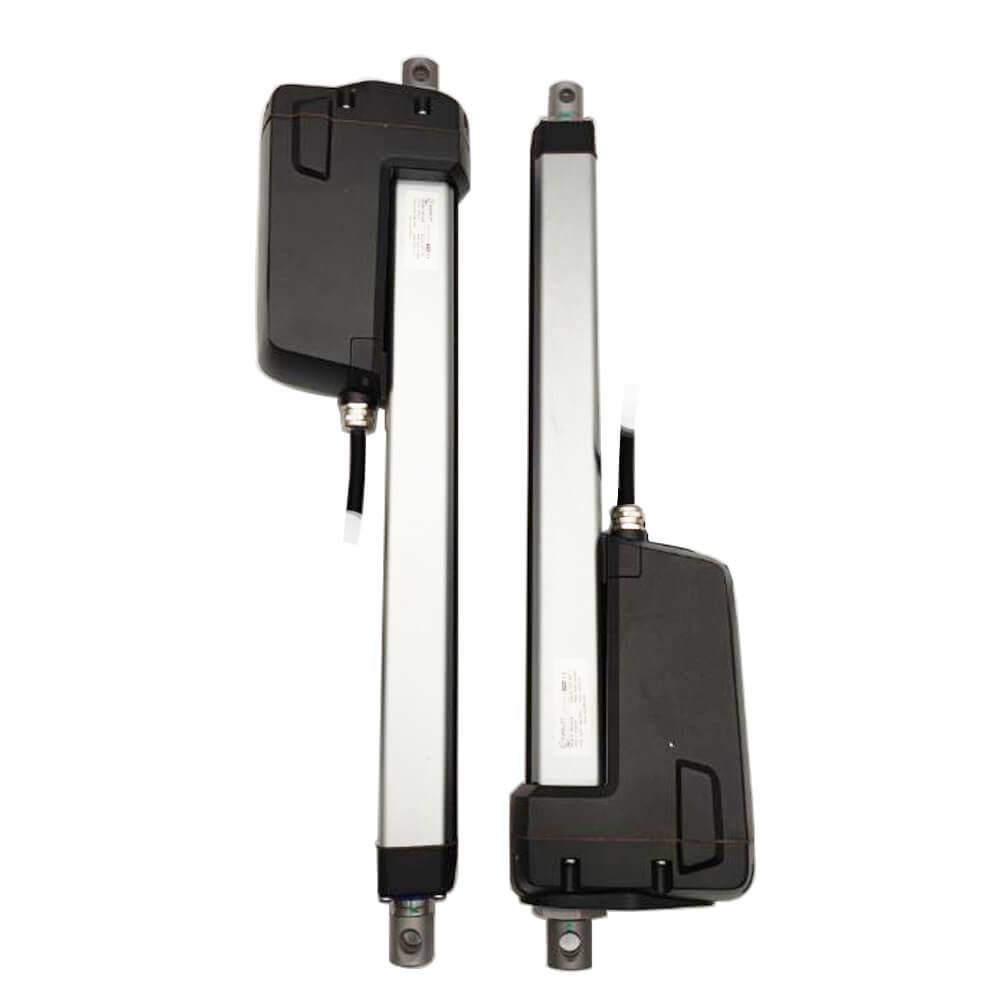

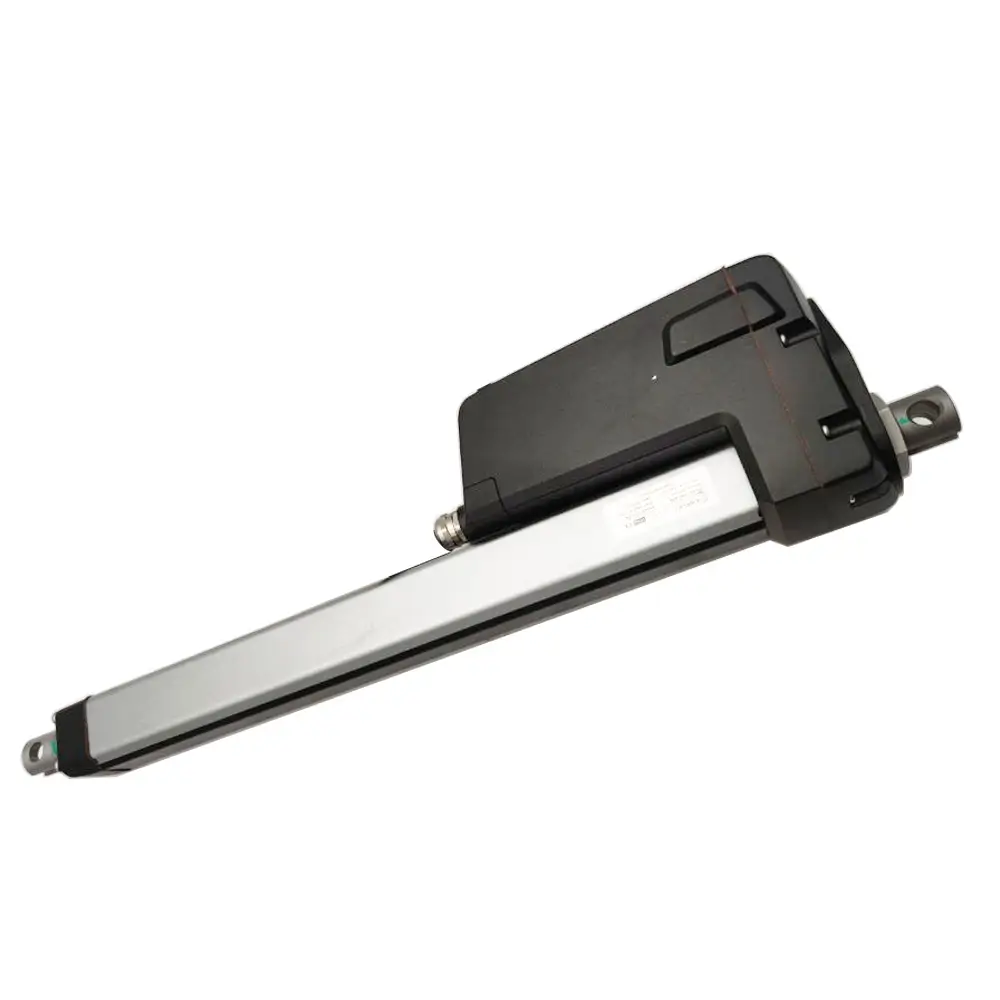

NKLA46A high force industrial linear actuator is one of the strongest units in our line-up. The stainless steel shaft accompanied by metal gears allows the actuator to push and pull up to 3000 lbs, and hold up to 3500 lbs. The high environmental protection rating produces a versatile unit able to withstand dust, water, and harsh environments.
Electric heavy load waterproof linear actuator is widely used in various industry equipment , special vehicle and the high load output extremely harsh conditions . linear actuator is able to withstand dust, water, and harsh environments. The heavy duty actuator is the only unit in our line of products with adjustable limit switches, which allows customers fully control over where to start and stop the actuator.
This unit can be found in industries such as manufacturing, renewable energy, solar tracker ,agriculture, and industrial automation.
Features
- DC permanent magnet motor , firm structure , durable .
- speed from 6.5mm/s to 60mm/s as requested .
- maximum load 12000N.
- Temperature range : -40°C~65°C
- Duty cycle : 20% with full load in normal temperature .
- build in limit switch .
- IP grade: IP66
- Overload clutch protection
| Product name | NKLA46A linear actuator | ||||||||
| Load force(N) | 12000N | 11000N | 10000N | 7500N | 7000N | 6500N | 5000N | 4500N | 3200N |
| Full load speed(mm/s) | 4.5 | 6 | 7 | 9 | 9.5 | 11 | 14 | 13 | 23 |
| Stroke length (mm) | 50mm~600mm (option>600) | ||||||||
| Retracted length(mm) (mounting length ) |
Stroke +200mm (S<=300) , Stroke +250mm (300<S<=600) , Stroke +300mm (S>600) | ||||||||
| IP grade | IP66 | ||||||||
| Duty cycle | 25% , max 4 min. continuous use | ||||||||
| Limit Switches | Built in | ||||||||
| Color | Silver | ||||||||
| Option Function | Potentiometer or hall sensor | ||||||||

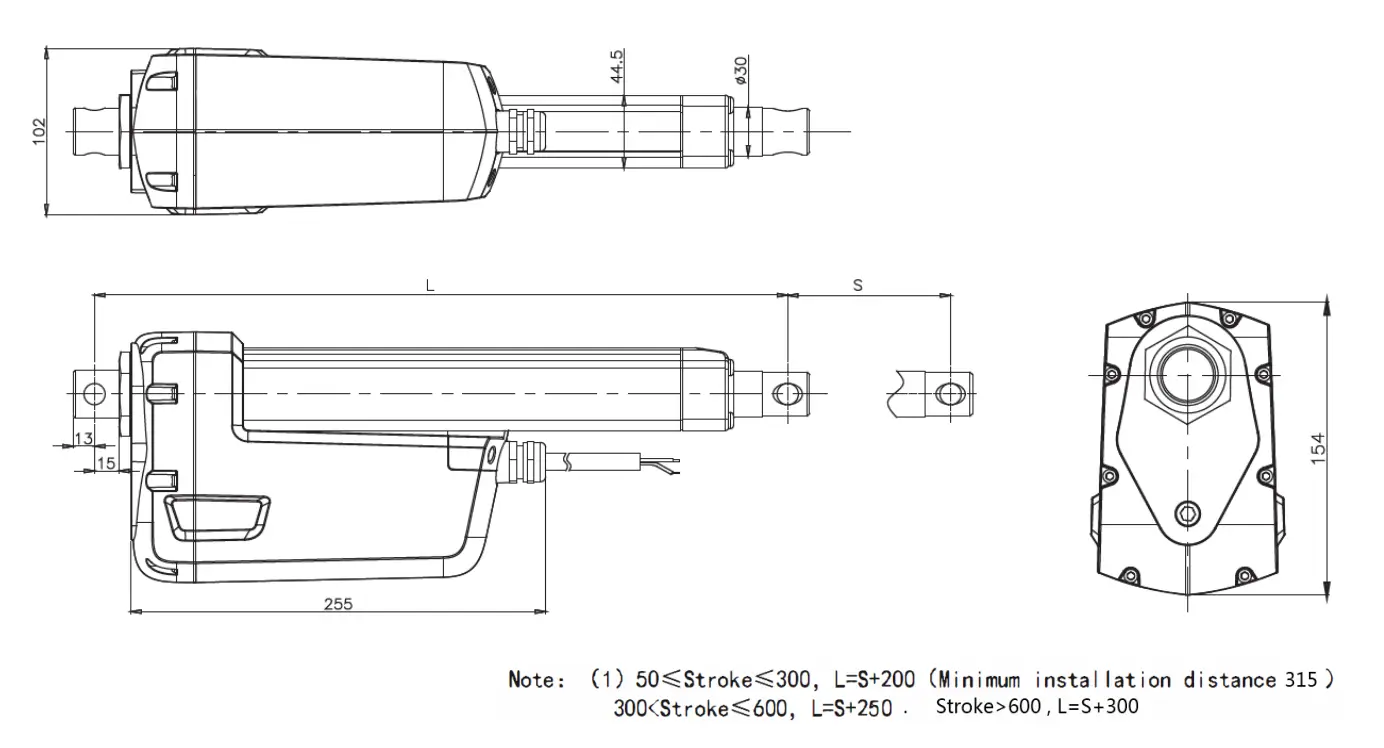

NKLA46A Dimensions
