Introduction
Small motor actuator with ACME screws,built-in Micro switch and an internal diode, can automatically stop and enables the change of direction by simply reversing the applied voltage polarity. stroke length can be customized. switches are not made to be adjustable. Inversely proportional to the speed and power.
NKLA22 mini linear actuator utilizes a fundamental linear motion design in a compact body. The low current, medium force actuator is ideal for industries such as home automation, automotive, general automation, and manufacturing.
The 1000n micro linear actuator is small in size, making it ideal for use in tight spaces. It also ensures that it can fit in various applications with ease.
This device has a high level of precision in its operation, making it ideal for use in tasks that require accuracy, such as positioning and fine-tuning.
Micro linear actuator is durable ,built to last, with strong materials that can withstand harsh environments, shocks, and vibrations.
The 1000n micro linear actuator is a highly versatile and efficient device with numerous benefits and applications. Its small size, high precision, durability, and high performance make it an excellent tool for use in various industries, including robotics, industrial automation, the automotive industry, and medical devices.
Features
- Max load 1000N
- Duty cycle 20%(High-speed linear 10%)
- Max static force 2300N
- Operating temperature -20°C~+65°C
- Aluminium outer tube and stroke rod
- Protection IP54 or IP65
- 12 or 24 or 36 or 48VDC
- Preset limit switches
- Powder metal gears
- Aluminium alloy housing
- Low price
- Robust
| Product name | NKLA22 micro linear actuator | ||||||
| Load force(N) | 1000N | 800N | 600N | 300N | 200N | 100N | 50N |
| NO load speed(mm/s) | 3 | 10 | 16 | 26 | 30 | 50 | 80 |
| Stroke length (mm) | 50mm~600mm (option>600) | ||||||
| Retracted length(mm) (mounting length ) |
Stroke +105mm | ||||||
| IP grade | IP54/IP65 | ||||||
| Duty cycle | 20% , max 4 min. continuous use | ||||||
| Limit Switches | Built in | ||||||
| Color | Black or silver | ||||||

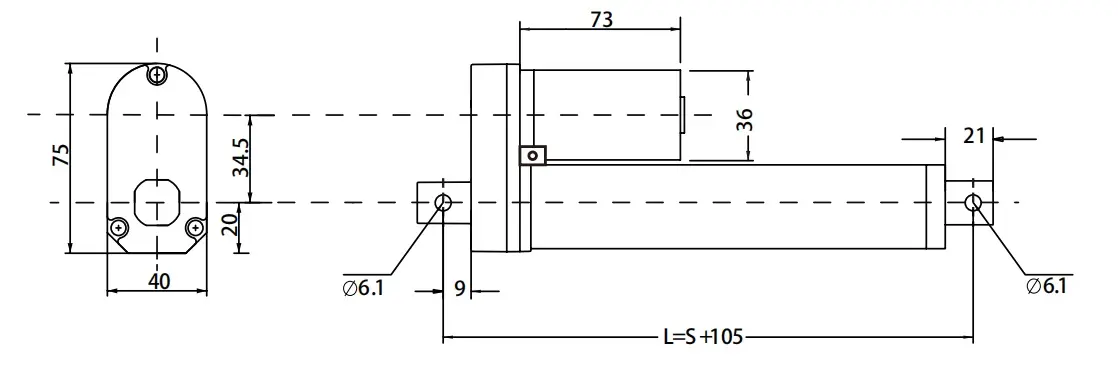

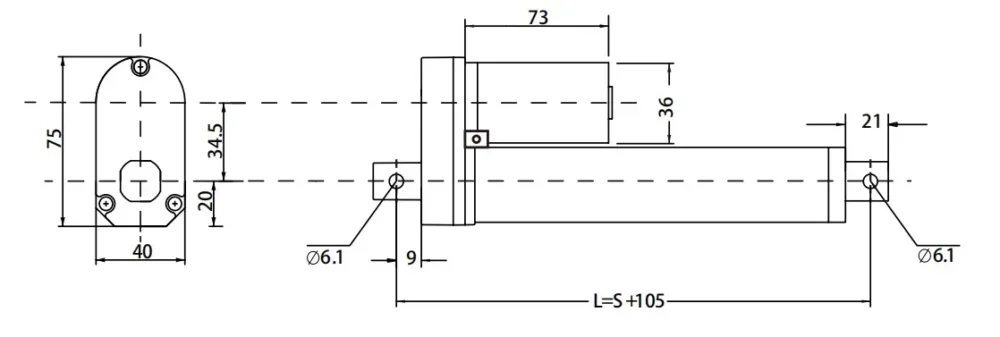

NKLA22 Dimensions
